Comprehensive Wireless, Private Wi-Fi in Every Room

Gigabit Network Port

The gigabit network port allows you to connect Ethernet equipment to the infrastructure.

Effortless Deployment with PoE Power

With 802.3af/802.3at PoE support, there's no need for dedicated power. Just plug it into your existing Ethernet cables and you're good to go.

• Antenna Gain: 2.4 GHz: 3 dBi | 5 GHz: 5 dBi
• Frequency: 2.4 GHz | 5 GHz
• Max speed: 2402 Mbps (5 GHz), 574 Mbps (2.4 GHz)
• Wireless Features: MU-MIMO, Seamless Roaming, Band Steering, Omada Mesh
• Transmit power: 20 dBm (2.4 GHz) | 22 dBm (5 GHz)

• Ethernet Port: 2 x RJ45 Gigabit
• Power Method: 802.3af/at PoE or 12V DC (adapter included)
• Maximum power consumption: 11.5W

• Management App: Omada
• Web Management: HTTP/HTTPS
• SNMP: v1, v2c, v3

• Operating temperature: 0–40 °C
• Operating humidity: 10–90% RH
• Certifications: CE, RoHS

• Dimensions: 86 x 86 x 42.6 mm
• Weight: 315 g (with mounting kit)

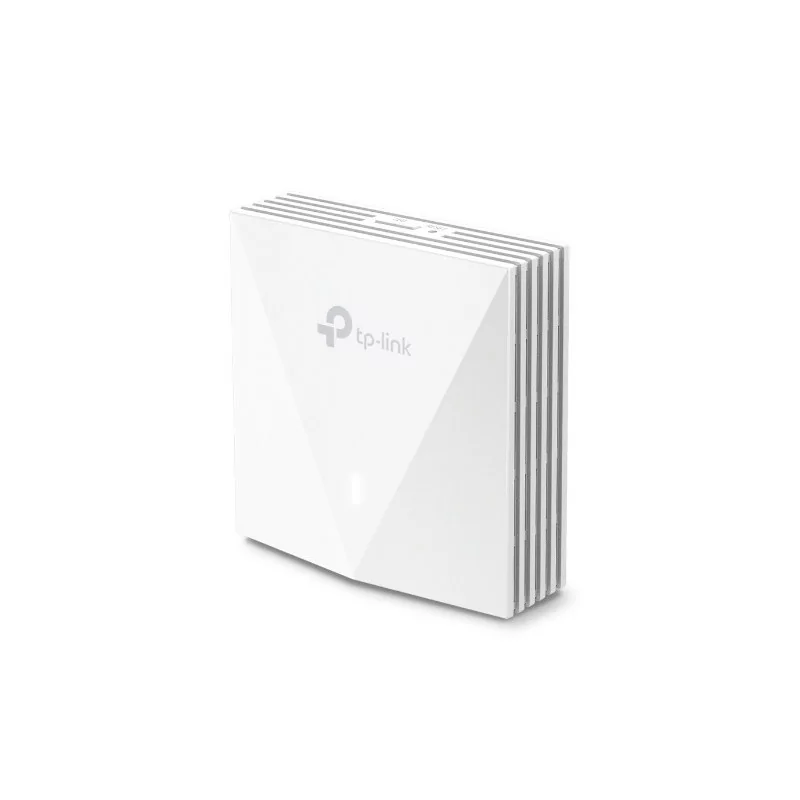

• Included: EAP650 Access Point, Power Supply, Mounting Kits, Installation Guide
