High-density connectivity with 4x greater capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Take advantage of multi-user capabilities and upgrade your business like never before.

Ultra-fast speed with 8 spatial streams

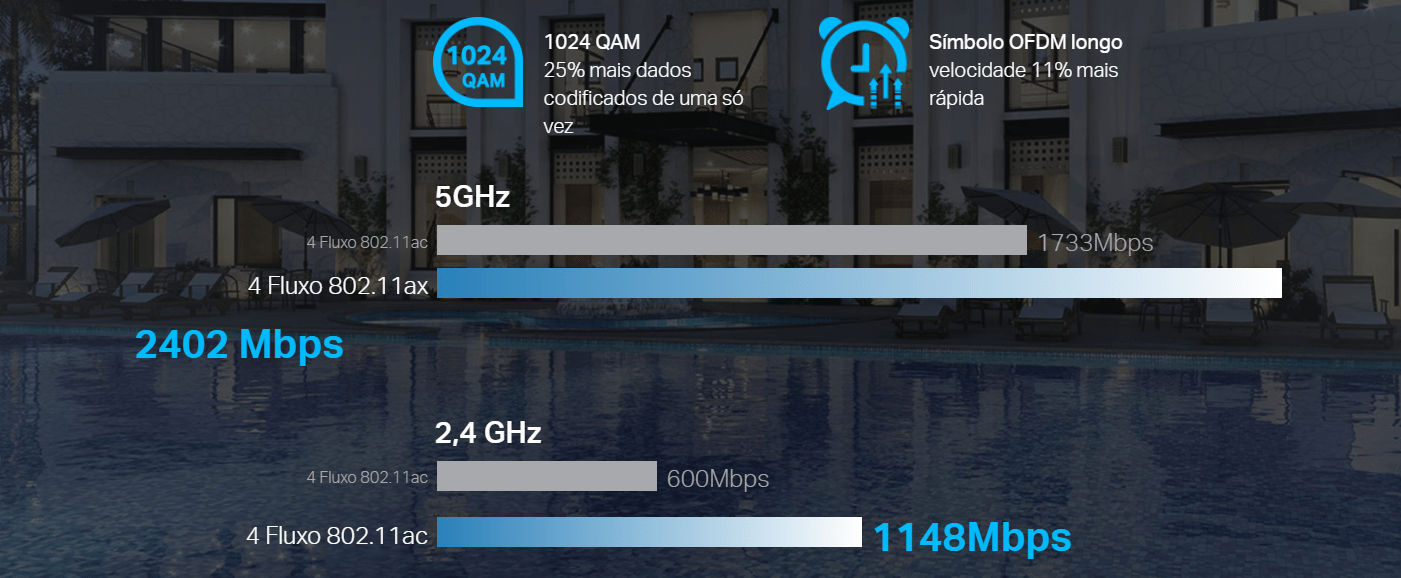

The Omada Wi-Fi 6 access point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which enables EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is dramatically increased to drive more applications.

Easy to assemble with refined industrial design

• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequencies: 2.4 GHz and 5 GHz
• Max speed: Up to 2402 Mbps (5 GHz), 1148 Mbps (2.4 GHz)
• Client capacity: 1,000+ devices
• Wireless Functions: 1024-QAM, MU-MIMO, Beamforming, OFDMA, Seamless Roaming
• Wireless Security: WPA3-Personal/Enterprise, WPA2, WPA
• Transmit power: 20 dBm (2.4 GHz), 23 dBm (5 GHz) (CE)

• Ethernet Port: 1 x 2.5 Gbps (IEEE 802.3at PoE)
• Power supply method: PoE 802.3at and DC 12V
• Max Power Consumption: 18.5W (EU), 21.5W (US)

• Omada App: Yes
• Centralized Controller: Support for Omada Hardware/Software Controller
• Cloud access: Yes
• SNMP: v1, v2c, v3
• Web Management: HTTP/HTTPS
• VLAN Management: Yes
• Zero-Touch Provisioning: Yes

• Operating temperature: 0–40℃
• Operating humidity: 10–90% (non-condensing)
• Certifications: CE, FCC, RoHS

• Dimensions: 243 × 243 × 64 mm
• Antenna Type: Internal omnidirectional (4x 4 dBi at 2.4 GHz, 4x 5 dBi at 5 GHz)

• Included: Access Point, power adapter, mounting kits and installation guide
