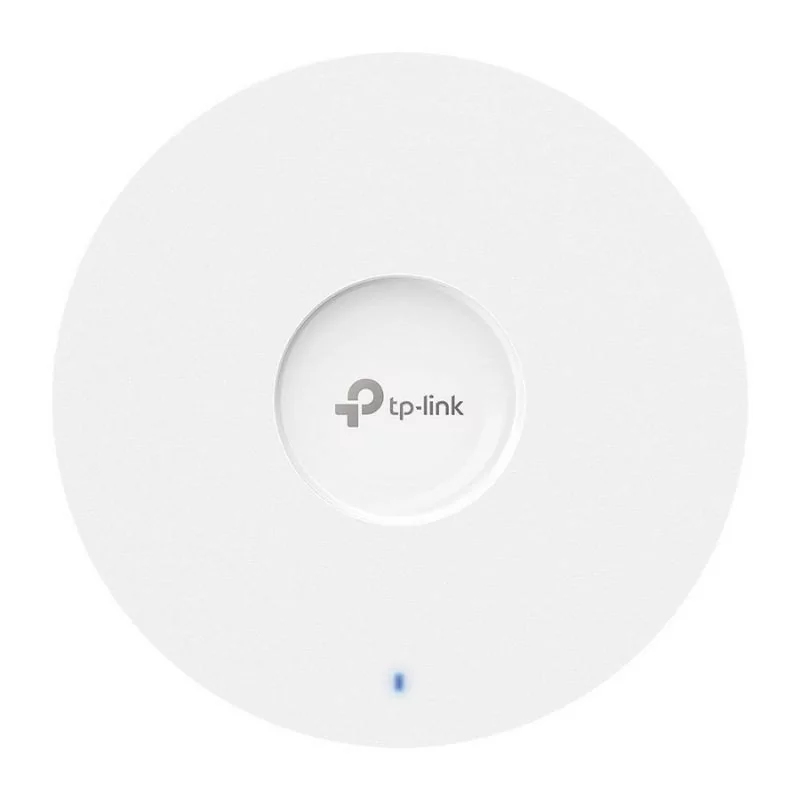

TP-Link EAP683 LR Wi-Fi Access Point (6000 Mbps - WiFi 6)
The TP-Link EAP683 LR is a high-performance Wi-Fi access point designed for business environments. With WiFi 6 technology, it offers impressive speeds and extensive coverage, ensuring stable connections for multiple devices. Ideal for offices, hotels or public spaces requiring robust and efficient networking.
Main Features
- • Maximum Speed of 6000 Mbps - Supports heavy traffic with high combined speeds for streaming and fast downloads.
- • WiFi 6 Standard (IEEE 802.11ax) - Improves efficiency in environments with high device density, reducing interference.
- • Omnidirectional Antennas with 5 dBi Gain - Provides wide and uniform coverage in all directions for greater range.
- • 2.5 Gigabit PoE+ Ethernet Port - Fast connection and power via Ethernet cable, simplifying installation.
- • Compact Dimensions (220 x 220 x 32.5 mm) - Slim and lightweight design (2.34 kg) for discreet ceiling mounting without taking up space.
- • Efficient Energy Consumption (20.43 W) - Power via PoE+ or 12 V DC, promoting savings and sustainability.
General Information
| Model: | EAP683 LR |
| Brand: | TP-Link |
| Reference: | EAP683 LR |
| EAN: | 4895252506464 |
Technical Specifications
| Maximum Speed: | 6000 Mbps |
| 2.4GHz Speed: | 1148 Mbps |
| 5GHz Speed: | 4804 Mbps |
| WiFi Standard: | IEEE 802.11ax (WiFi 6) |
| Antenna Gain: | 5 dBi |
| Antenna Type: | Omni-directional |
| Dimensions: | 220 x 220 x 32.5 mm |
| Weight: | 2.34 kg |
| Power Consumption: | 20.43 W |
| Ethernet Port: | 1 × 2.5 Gigabit PoE+ Port |
| Power Supply: | 802.3at PoE+ or 12 V DC |
| Mounting: | Ceiling mount |
Frequently Asked Questions (FAQ)
WiFi 6 (IEEE 802.11ax) is the latest generation of Wi-Fi, offering higher speed, capacity for more devices and lower latency. In the EAP683 LR, this means more stable networks in busy environments such as offices or events.
Installation is simple with the included ceiling mount. Connect via PoE+ to a compatible switch or use the 12 V DC adapter. Configure via the Omada app or web interface to manage the network intuitively.
With 5 dBi omnidirectional antennas, the EAP683 LR provides wide coverage in open spaces. The range depends on the environment, but it is optimised for areas of up to 100-150 m², depending on obstacles.
Yes, the EAP683 LR is backwards compatible with previous WiFi standards (802.11a/b/g/n/ac). Easily integrate into mixed networks, improving overall performance without needing to replace old equipment.
✓ Kontrolsat Protected Purchase
Warranty support
Package Contents
- ✓ 1x TP-Link EAP683 LR Wi-Fi Access Point
- ✓ Manual in Portuguese
- ✓ Warranty certificate
