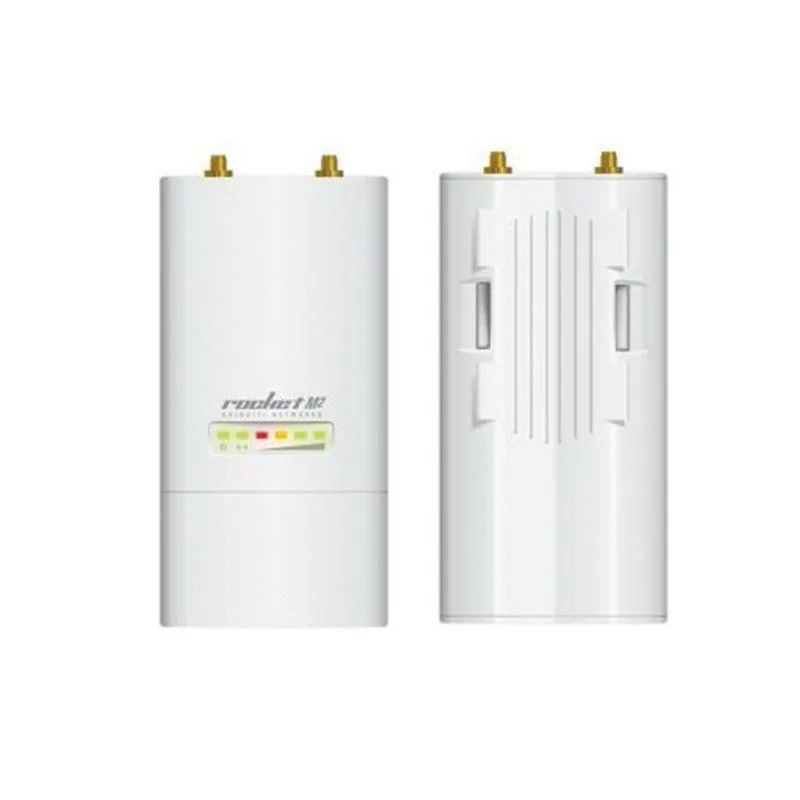

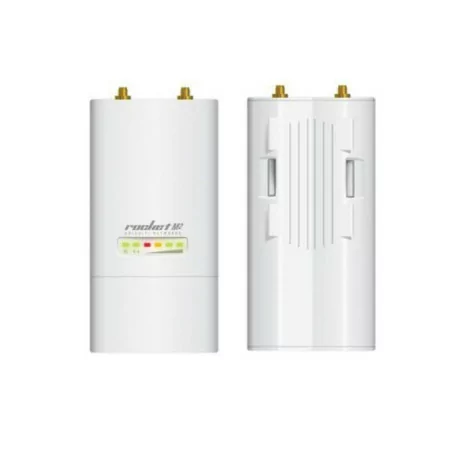

Ubiquiti Rocket M2 2.4GHz MIMO airMAX Access Point

Ubiquiti AirMax Rocket M2 - 2.4GHz 2xRSMA 2x2 MIMO - M2

Rocket M2, 2.4 Ghz, 2xRSMA, 2X2, MIMO, AirMax Rocket is the new base station from Ubiquiti Networks, it is a robust, very powerful and stable system, its 2 × 2 MIMO radios offer excellent reception performance. It is characterized by its incredible range (+ 50 km) and transfer rate (real TCPI / IP of + 150 Mbps). The equipment was specifically designed to make point-to-point calls outdoors and to function as an AirMax Multipoint Point base station. The AirMax Rocket / Base base station is designed to work with any of the Ubiquiti Rocket antennas. Installing the Rocket M as an AirMax base station, together with the rocket antennas, does not require any special tools, it is very simple, just insert the mounting kit provided with the antennas. Physical / Electrical / Environmental Information

Dimensions: 160 x 80 x 30 mm (6.30 x 3.15 x 1.18)
Weight: 500 g (1.1 lb)
Processor: MIPS 24Kc
Memory: 128 MB SDRAM, 8 MB Flash
Network interface: (1) 10/100 Mbps
RF connections: (2) RP-SMA (waterproof)
LEDs: Power, Ethernet, (4) Signal strength
Maximum power consumption: 6.5W
Power supply: 24V, 1A PoE Adapter
Power Type: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating temperature: -30 to 75 ° C (-22 to 167 ° F)

Software information

Network modes: Access point, station
Services: Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities: Antenna alignment tool, Discovery utility, Website scanning, Ping, Traceroute, Speed ​​test
Distance adjustment: dynamic ACK and NO-ACK mode
Power configuration: configurable via software interface or CLI
Security: WPA2 AES only
QoS: Supports package and end user classification: High / Medium / Low
Statistical reports: uptime, packet errors, data rates, wireless distance, Ethernet link rate
Others: Support for remote reset, VLAN, 64QAM, channel widths of 5/8/10/20/30/40 MHz
Ubiquiti-specific features: airMAX mode, traffic limit and burst, discovery protocol, NO-ACK mode
