UHF Mast Amplifier Kit 32dB - 3 Int - AM-397 - ALCAD

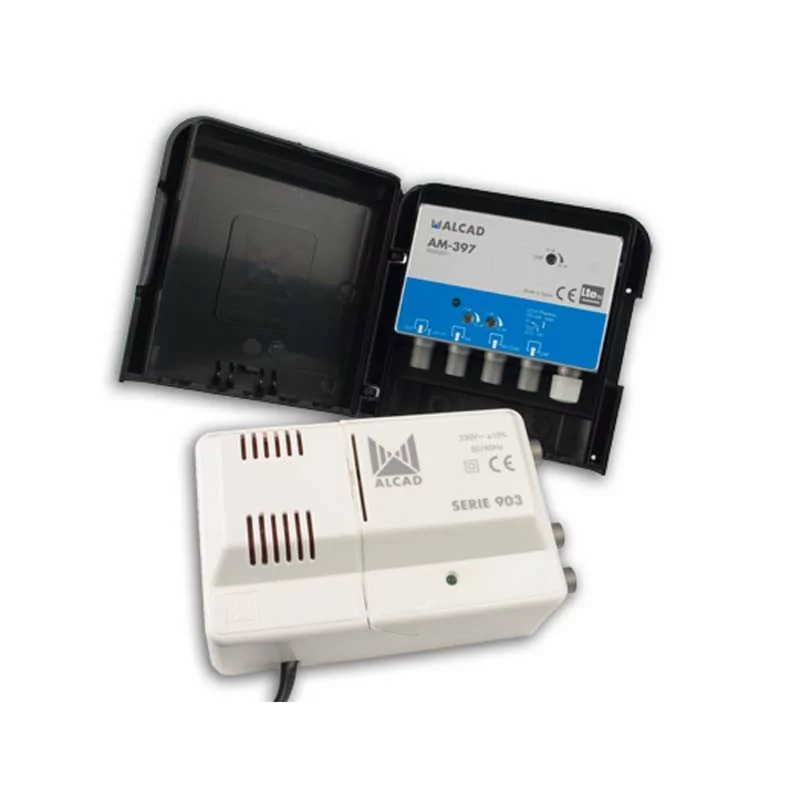

2 in 1 kit

Set consisting of a mast amplifier and a power supply.

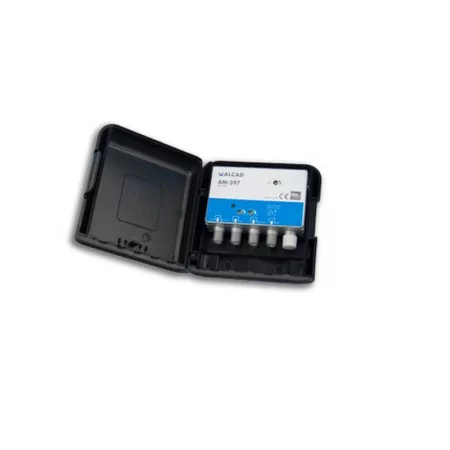

mast amplifier

• Broadband amplifier for masts, compatible with LTE700 and LTE800 mobile phone signals, with amplification band in UHF 470-694 MHz.
• It has three inputs to amplify and combine signals from the antennas .
• It is powered via coaxial cable from a power supply installed inside the building.
• It incorporates a switchable DC path, allowing power to be supplied to a preamp.
• Suitable for individual digital and analogue terrestrial TV installations that are affected by the transmission of LTE700 and LTE800 mobile phone signals and that require high gain.
• It amplifies and mixes the signals from several antennas.
• The obtained signal can be distributed to a large number of TV points through a single coaxial cable .
• It is weather resistant and therefore perfectly suitable for outdoor installation. Sun and water resistant.
• Easy to open and close, the chassis can be tilted for easy handling.
• It can be installed on a mast, using a polyamide clamp, or on a wall.

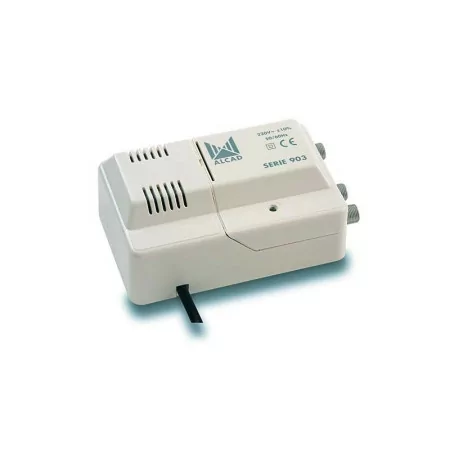

Power supply 24Vdc 100mA

• Power supply for mast amplifiers, 24 voltages.
• The power supply unit converts the power supply into DC voltage and injects it into the coaxial cable to power the amplifier.
• The signal coming from the antenna is distributed to its outputs.
• The power supply units are protected against overloads and short circuits.
• Suitable for use with mast amplifier or antenna box pre-amplifier, in individual digital terrestrial TV installations.
• The supply voltage must be selected according to the installed amplifier.
• It has an ABS plastic case for outdoor use.
• Power unit isolated from the high frequency circuit, complying with safety standards for both the installer and the user.

Brand

ALCAD

Reference

9030202

Stock Online

Available

Stock Store

Available

Network

LTE
