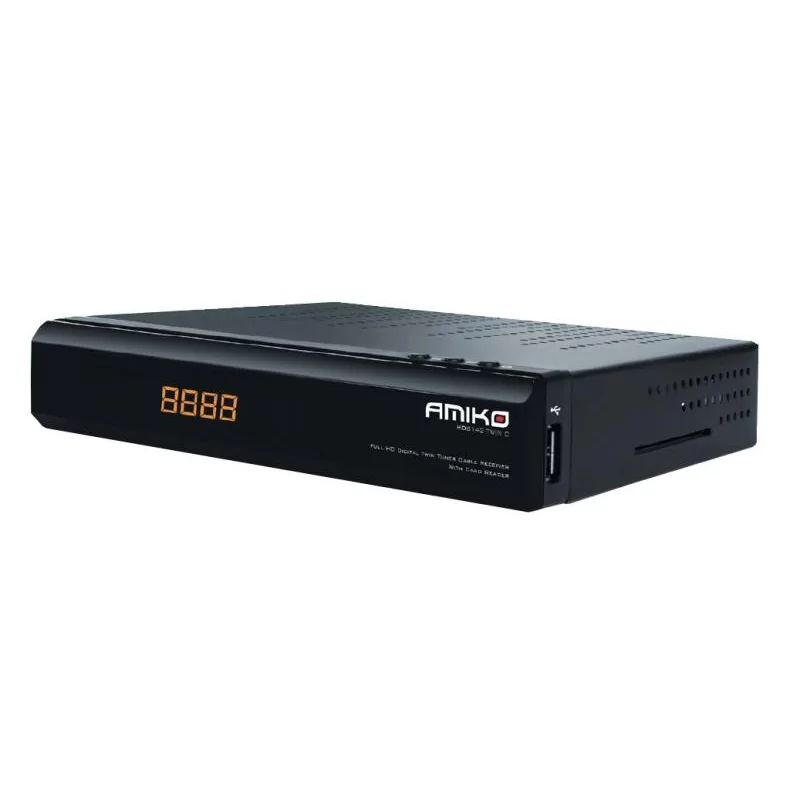

Amiko 8142 Twin DVB-C Full HD
REF: Amiko8142
EAN: 5999883023877
Amiko 8142 Twin DVB-C Full HD
REF: Amiko8142
EAN: 5999883023877
notifications
€45.00
Amiko has a box for the cable lovers market, with the Amiko HD8142 Twin C can record one channel and see another at the same time, using its Twin Tuner.
- One Embedded CONAX card reader
- 6000 channels (TV and Radio) programmable
- One High Speed USB 2.0 Connections
- Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
- YouTube videos
- RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
- Channel Recording to External Storage Devices (optional)
- Timeshift support
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel
- information
- Subtitle supported
- Parental lock facility by channel and program event
- Full HD (1080p) Output via HDMI
- Multi-Language support
- Software upgrade support via USB, Network, RS232
- Dolby Digital Bitstream out via S/PDIF & HD OUT
SYSTEM RESOURCES
- Main Processor: Main CPU: 594 MHz
- Flash Memory: Serial Flash 8MB x 1
- DDR SDRAM: DDRIII 1333 16bit 64MBx1
- Tuner/Front-end
- Tuner Type: DVB-C
- Signal Level: -65 to -25 dBm
- LNB Power & Polarization: Vertical: +13V/+14V,
- Horizontal: +18V/+19V,
- Current: Max. 500mA, Overload Protection
- 22KHz Tone: Frequency: 22±1KHz
- DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
- Demodulation: QPSK, 8PSK
- Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
- 1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,
- 3/5,4/5,8/9,9/10 and Auto
MPEG TS A/V Decoding
- Transport Stream: MPEG-2 TS
- Input Rate: Max.120Mbit/s
- Aspect Radio: 4:3, 16:9, Letter Box
- Video Decoding: MPEG-4/H.264/H.265 SP@L3 to ASP@L5,
- AVC,HP@level 4.1, MP@level 4.1
- Video Resolution: 720*480P/I, 720*576P/I,1280*720p,1920*1080i,
- 1920*1080p
- Audio Decoding: MPEG-1/2,AAC-LC,HE-AAC,MP3,Dolby Digital
- Audio Mode: Left / Right / Stereo/ Mono
- Sampling Rate: 32, 44.1 and 48KHz

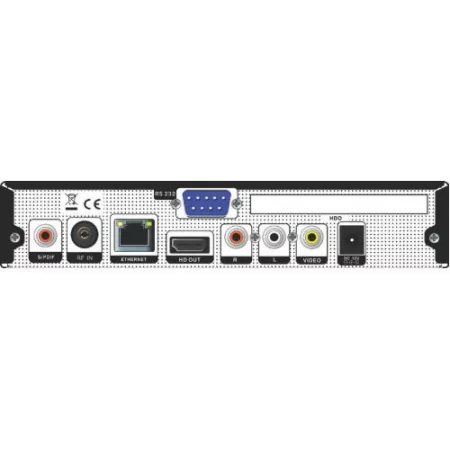

A/V & DATA INPUT/OUTPUT
- RCA: Video CVBS output, Audio L/R output
- S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit-
- Stream Output
- RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type
- USB: Two USB 2.0 slot Compatible for Host
- HDMI: VER1.3, Type A
- Ethernet: 10/100M RJ45
- SATA: SSD support
POWER SUPPLY
- Free Voltage: 110-230V AC
- Power Consumption: 24W Max
- PHYSICAL SPECIFICATION
- Size[W*H*D]: 220X158X43 mm
- Net Weight: 1,2Kg
- Operation Temperature: 0°C~+45°C
- Storage Temperature: -10°C~+70°C
- Storage Humidity: 5%~95% RH (Non-Condensing)
- Brand
- Amiko
- Reference
- Amiko8142
- Stock Online
- Sold out
- Stock Store
- Sold out
- Operating System
- Other
- Screen Resolution
- Full HD (1080p)
