Features:

• One High Speed USB 2.0 Connection
• Full HD (1080p) Output via HDMI
• Channel Recording to External Storage Devices
• Timeshift support
• Channel Recording & Timeshifting Simulteniously (optional)
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle supported
• Teletext supported by VBI insertion and software emulation
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Exciting games embedded
• Multi-Language support
• Power Consumption in Stand-By: <0.5W

Specifications:

• Tuner Type: DVB-T2
• Frequency Range: 108~862MHz
• RF Input Level: -80dBm to -20dBm
• Antenna power output: DC 5V at max 75mA, Overload protection
• Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
• Input Symbol Rate: 1.0 ~ 7.0Ms/s
• Constellations: QPSK, 16QAM, 64QAM
• Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

• System Resources
• Main Processor: 594MHz
• Flash Memory: 32MBits
• DDR RAM: 512Mbits

• MPEG TS A/V Decoding
• Transport Stream: MPEG-2, H.264
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
• Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
• Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

• Power Supply
• Input Voltage: 5V DC
• Power Consumption: 10W Max
• Stand-By Power Consumption: <0.5W

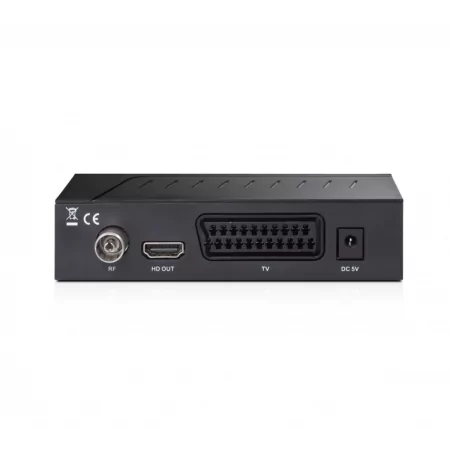

• A/V & Data Input/Output
• SCART: CVBS Video out / Audio L/R out
• USB: One USB 2.0 slot
• HDMI: VER1.3, Type A

• Physical Specifications
• Size[W*H*D]: 130mm*30mm*65mm
• Net Weight: 0.10KG
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)

Brand

Amiko

Reference

Amiko T60 FTA

Stock Online

Sold out

Stock Store

Sold out

Operating System

Other

Screen Resolution

Full HD (1080p)

Attachments

cloud_download Manual Amiko T60
