Specifications:

CHAMBER

1/2.8” Progressive Scan CMOS Image Sensor

Shutter Speed From 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism IR Cut Filter

Day/Night Switch Day/Night/Auto/Scheduled

Lens 2.8mm/4mm/6mm

Aperture 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

M12 Lens Mount

Angle of View 2.8 mm, Diagonal FOV: 117.9°

4 mm, Diagonal FOV: 98°

6 mm, Diagonal FOV: 60°

IR Working Distance 30m

3D DNR Digital Noise Reduction

WDR DWDR

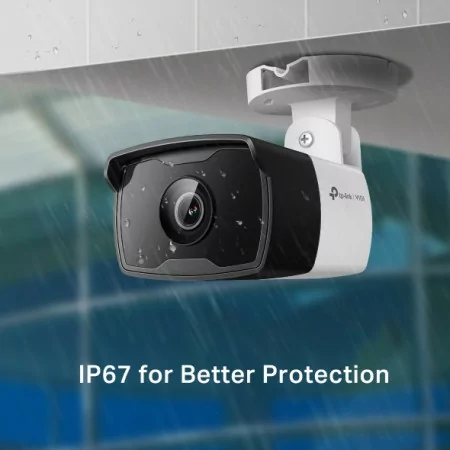

IP67 Weatherproof Rating

LENS

Fixed Focus Lens Type

Focal Length 2.8mm/4mm/6mm

Aperture 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

FOV 2.8 mm:

Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

4 mm:

Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°

6 mm:

Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°

M12 Lens Mount

Distance DORI 2.8 mm:

Detect: 49m

Note: 20m

Recognize: 10m

Identify: 5m

4 mm:

Detect: 65m

Note: 27m

Recognize: 13m

Identify: 7m

6 mm:

Detect: 98m

Note: 41m

Recognize: 20m

Identify: 10m

VIDEO

Maximum Resolution 2304 × 1296

Main Stream Frame Rate:

50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps

60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions:

2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Sub-Stream Frame Rate:

50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps

60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions:

704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control CBR, VBR

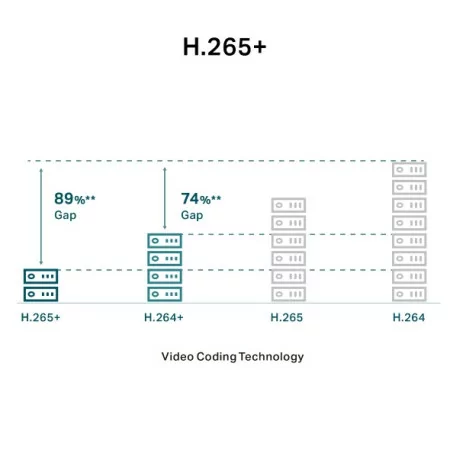

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Type of H.264 Main Profile/High Profile

H.264+ Main Stream Supported

Type of H.265 Main Profile

H.265+ Main Stream Supported

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED N/A

Auto/Scheduled/Always On/Always Off Illuminator On/Off Control

ANGLE ADJUSTMENT (MANUAL)

Rotation Range: -90° to 90°

Tilt: -90° to 90°


Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, HLC Adjustable by Client Software, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range DWDR

SNR ≥ 52 dB

Image Parameter Switching Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Settings Yes

AUDIO

Audio Communication N/A

Audio Input N/A

Audio Output N/A

Audio Compression N/A

Audio Sampling Rate N/A

Environmental Noise Filtering N/A

N/A Audio Bitrate

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

NAS Network Storage (NFS, SMB/CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous Live View 3 Main Streams and 3 Sub-Streams

VIGI Application Client, VIGI Security Manager, VIGI NVR, Web

Web browsers Google Chrome® 57 and up, Firefox® 52 and up, Safari® 11 and up, Microsoft® Edge 91 and up

cloud sim

ONVIF Yes

INTERFACE

Network Interface 1 Self Adapting RJ45 10/100M Ethernet Port

Alarm N/A

Reset Button N/A

Power DC Power Port

N/A button

N/A Video Out

Built-in Storage N/A

Built-in Microphone N/A

Built-in Speaker N/A

Audio N/A

ALARM AND EVENT MANAGEMENT

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Video Tampering Detection, Exception (Unauthorized Access)

Message Notification Alarm Association

Association Method N/A

Output Notification Message Notification

GENERAL

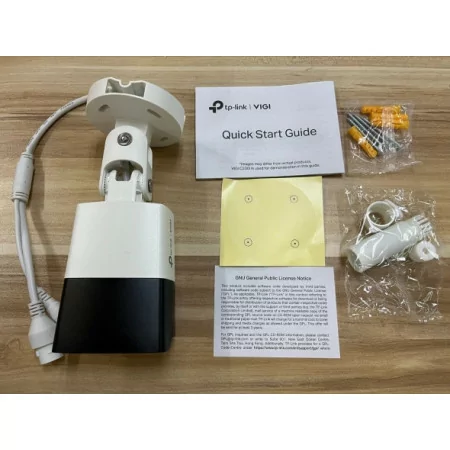

Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Lower (Non-Condensing)

Operating Humidity 95% or Lower (Non-Condensing)

Dimensions (H x W x D) 174 × 74 × 71 mm

Plastic Material

General Features Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listener

Power Requirements 12V DC ±5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Net Weight 0.2 Kg

Gross Weight 0.35 Kg

Power Consumption 12V DC: Max 5W

PoE: Class 0

Power Supply 12V DC ±5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

IP67 protection

Product Dimensions (L x W x H) 174 × 74 × 71 mm

CE/BSMI/VCCI/ONVIF Certifications

VIDEO/IMAGE

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions Main Stream:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 704x576, 640x480, 352x288, 320x240

Maximum Resolution 3MP (2304 × 1296)

Main Stream Video Transmission

Subflow

Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Scheduled

SMART FEATURE

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Area Entry Detection, Area Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Camera Tampering Detection, Exception (Unauthorized Access)

Trigger Notification Association Method: ONVIF, HTTPS

Region of Interest 1 Region
