Specifications:

CHAMBER:

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: from 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Day/Night/Auto/Scheduled

Lens: 2.8mm/4mm/6mm

Aperture: 2.8mm: F2.2, 4mm: F2.0, 6mm: F2.0

Lens Mount: M12

Viewing Angle: 2.8mm: 88.2°/48.7°/106.5° (H/V/D), 4mm: 74.6°/41.3°/88.1° (H /V/D), 6 mm: 47.7°/26.5°/56° (H/V/D)

IR Working Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

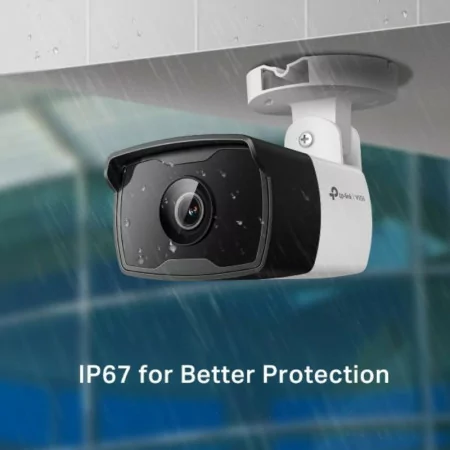

Weatherproof Rating: IP67

LENSES:

Type: Fixed Focus Lens

Focal Length: 2.8mm/4mm/6mm

Aperture: 2.8mm: F2.2, 4mm: F2.0, 6mm: F2.0

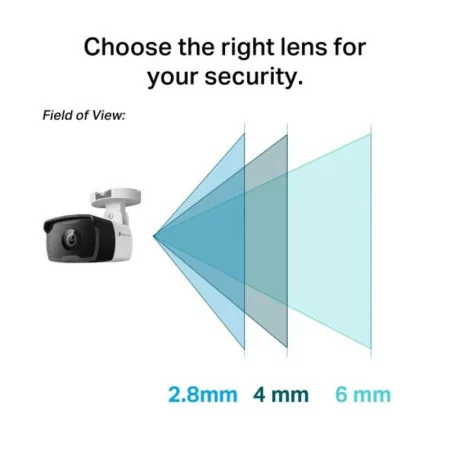

FOV: 2.8mm: Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°, 4mm: Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°, 6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°

Lens Mount: M12

DORI distance: 2.8 mm: Detection: 45 m, Observation: 19 m, Reconnaissance: 9 m, Identification: 5 m, 4 mm: Detection: 60 m, Observation: 25 m, Reconnaissance: 12 m, Identification: 6 m , 6 mm: Detection: 91 m, Observation: 38 m, Reconnaissance: 18 m, Identification: 9 m

VIDEO:

Max Resolution: 1920×1080

Main Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 1920x1080, 1280x960, 1280x720

Sub Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 704x576, 640x480, 352x288, 320x240

Bit Rate Control: CBR, VBR

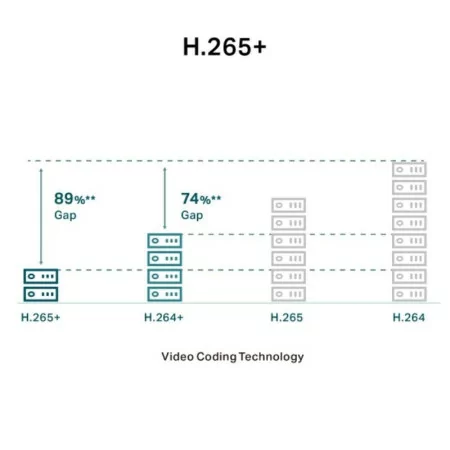

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

H.264 Type: Main Profile/High Profile, H.264+: Supported in Main Stream

H.265 Type: Main Profile, H.265+: Supported in Main Stream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps, Sub Stream: 64 Kbps to 512 Kbps

ILLUMINATOR:

IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm

White LED: No

Illuminator On/Off Control: Auto/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL):

Range: Pan: -90° to 90°, Tilt: -90° to 90°

IMAGE:

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO:

Audio Communication: No

Audio Input: No

Audio Output: No

Audio Compression: No

Audio Sampling Rate: No

Environmental Noise Filtering: No

Audio Bitrate: No

NETWORK:

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE:

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

alarm: no

Reset Button: No

Power: DC Power Port

Button: -

Video Output:-

Internal Storage: No

Built-in Microphone: No

Built-in Speaker: No

Audio: No

ALARM AND EVENT MANAGEMENT:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Association: Message Notification

Association Method: Not applicable

Outgoing Notification: Message Notification

GENERAL:

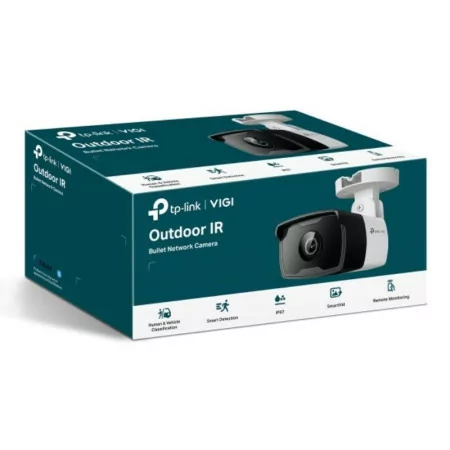

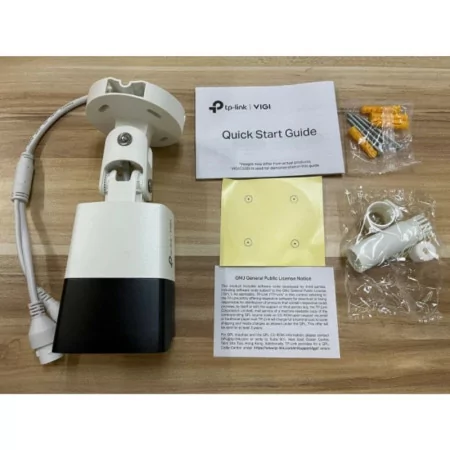

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30 to 60 °C

Storage Temperature: -40 to 60°C

Storage Humidity: 95% or lower (No Condensation)

Operating Humidity: 95% or lower (non-condensing)

Dimensions (H x W x D): 174 × 74 × 71 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listener

Net Weight: 0.2 Kg

Gross Weight: 0.35 Kg

Power Consumption: PoE: Class 0

Power Supply: PoE (802.3af/at, class 0)

Protection: IP67

Product Dimensions (L x W x H): 73× 174 × 71 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE:

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

Frame Rate and Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 1920x1080, 1280x960, 1280x720, Sub Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps , 20fps, 25fps, 30fps, Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution: 2MP (1920×1080)

Video Stream: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switching: Day/Night/Auto/Scheduled

SMART FEATURES:

Smart Event: Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Access)

Association Method: Activation Notification: ONVIF, HTTPS

Region of Interest: 1 Region
