Specifications:

CHAMBER

Image Sensor 1/2.8” Progressive Scan CMOS Sensor

Shutter Speed From 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism IR Cut Filter

Day/Night Switch Day/Night/Auto/Scheduled Change

Lens 2.8mm/ 4mm/ 6mm

Aperture 2.8mm: F1.6

4mm: F1.6

6mm: F1.6

M12 Lens Mount

Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)

4mm: 89.1°/45.1°/106.9°(H/V/D)

6mm: 55.1°/30.2°/64°(H/V/D)

Active IR Distance 30m

3D DNR Digital Noise Reduction

WDR DWDR

IP67 Weatherproof Rating

LENS

Fixed Focal Lens Type

Focal Length 2.8/4/6mm

Aperture F1.6

2.8mm FOV: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

6 mm: Horizontal FOV: 55.1°, Vertical FOV: 30.2°, Diagonal FOV: 64°

M12 Lens Mount

Distance DORI 2.8 mm:

Detection: 52 m

Note: 22m

Recognition: 10m

Identification: 5 m

4 mm:

Detection: 70m

Note: 29m

Recognition: 14 m

Identification: 7 m

6 mm:

Detection: 100 m

Note: 41m

Recognition: 20m

Identification: 10 m

VIDEO

Maximum Resolution 2304 × 1296

Main Stream (Frame Rate)：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Flow (Frame Rate)：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control CBR, VBR

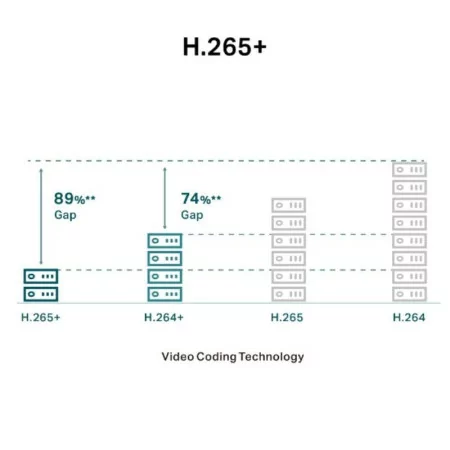

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Type of H.264 Main Profile/High Profile

H.264+ Main Stream Supported

Type of H.265 Main Profile

H.265+ Main Stream Supported

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED N/A

Auto/Scheduled/Always On/Always Off Illuminator On/Off Control

ANGLE ADJUSTMENT (MANUAL)

Rotation range: -90° to 90°

Tilt: -90° to 90°


Image Settings Reflection, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,

White Balance, Infrared Light Overexposure Prevention, Adjustable by Client Software, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

DWDR Wide Dynamic Range

SNR ≥ 52 dB

Image Parameter Switching Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setup Yes

AUDIO

Audio Communication N/A

Audio Input N/A

Audio Output N/A

Audio Compression N/A

Audio Sampling Rate N/A

Environmental Noise Filtering N/A

Audio Bitrate N/A

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

NAS Network Storage (NFS, SMB/CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous Live View 3 Main Streams and 3 Sub-Streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Google Chrome® Web Browser 57 and above

Firefox® 52 and higher

Safari® 11 and above

Microsoft® Edge 91 and above

cloud sim

ONVIF Yes

INTERFACE

Network Interface 1 Ethernet Port RJ45 10/100M Auto-Adaptable

Alarm N/A

Replacement Button N/A

Power DC Power Port

Button -

Video Out -

Built-in Storage -

Built-in Microphone Yes

Built-in Speaker N/A

Audio N/A

ALARM AND EVENT MANAGEMENT

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Video Manipulation Detection, Exception (Illegal Login)

White Light Flash Alarm Link, Message Push

Connection Method N/A

Output Notification Message Sending

GENERAL

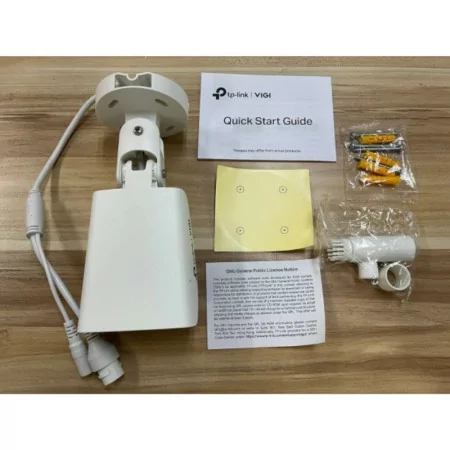

Package Contents VIGI Network Camera

Quick Start Guide

Waterproof Cable Accessories

Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Less (Non-Condensation)

Operating Humidity 95% or Less (Non-Condensation)

Dimensions (H x W x D) 174 × 78 × 70 mm

Plastic Material

General Features Two Streams, Reflection, Privacy Masks, Email Password Reset, HTTP Listener

Net Weight 0.26 Kg

Gross Weight 0.4 Kg

Power Consumption 12V DC: Max. 5.4W

PoE: Class 0

Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug

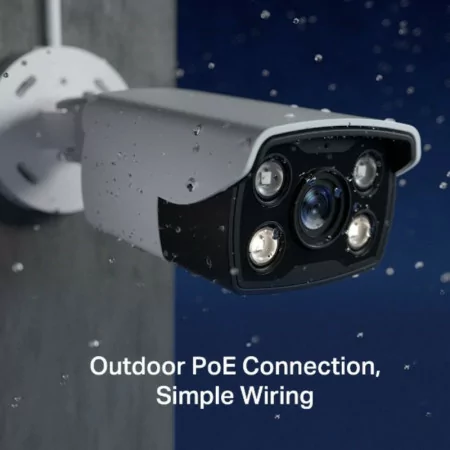

PoE (802.3af/at, class 0)

IP67 protection

Product Dimensions (L x W x H) 174 × 78 × 71 mm

CE/BSMI/VCCI/ONVIF certifications

VIDEO/IMAGE

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Maximum Resolution 3MP (2304 × 1296)

Main Stream Video Streaming

Subflow

Picture Settings Reflection, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Scheduled

SMART FEATURE

Intelligent Event Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entry Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Camera Manipulation Detection, Exception (Illegal Login)

Trigger Notification Binding Method: ONVIF, HTTPS

Region of Interest 1 Region
