Specifications:

CHAMBER

Image Sensor: 1/2.8 inch Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Day/Night/Auto/Scheduled

Lens: 2.8mm/4mm/6mm

Aperture: 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

Lens Mount: M12

Angle of View: 2.8mm, Diagonal FOV: 117.9°

4 mm, Diagonal FOV: 98°

6 mm, Diagonal FOV: 60°

IR Working Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

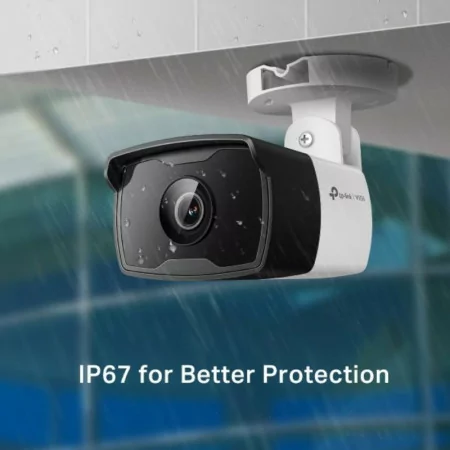

Weatherproof Rating: IP67

LENS

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm/4mm/6mm

Aperture: 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

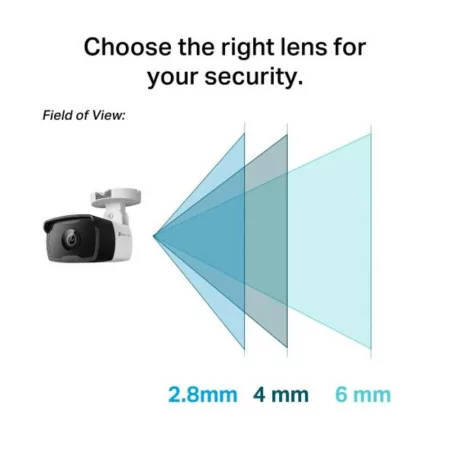

FOV: 2.8 mm:

Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

4 mm:

Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°

6 mm:

Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°

Lens Mount: M12

DORI distance: 2.8 mm:

Detection: 49 m, Observation: 20 m, Reconnaissance: 10 m, Identification: 5 m

4 mm:

Detection: 65 m, Observation: 27 m, Reconnaissance: 13 m, Identification: 7 m

6 mm:

Detection: 98 m, Observation: 41 m, Reconnaissance: 20 m, Identification: 10 m

VIDEO

Max Resolution: 2304×1296

Main Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Sub-Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control: CBR, VBR

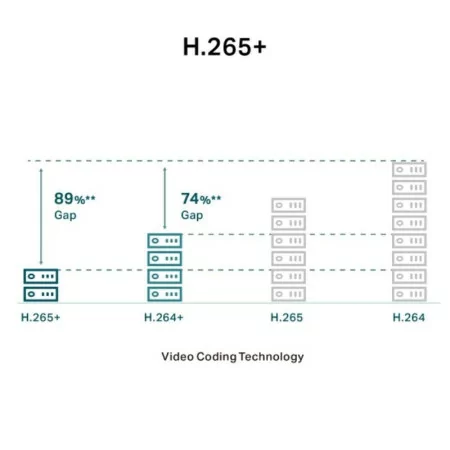

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 2

Range: 30m

Wavelength: 850nm

White LED: Not Applicable

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: -90° to 90°

Tilt: -90° to 90°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, HLC Adjustable by Client Software, Rotation (90°/270°)

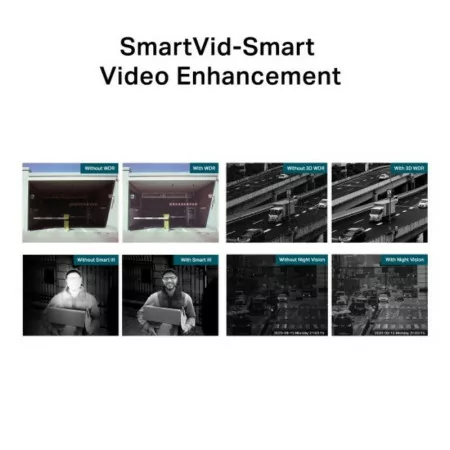

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR (Signal-to-Noise Ratio): ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI (Area of Interest): 1 Region

OSD Setting (On Screen Display): Yes

AUDIO

Audio Communication: Not Applicable

Audio Input: Not Applicable

Audio Output: Not Applicable

Audio Compression: Not Applicable

Audio Sampling Rate: Not Applicable

Environmental Noise Filter: Not Applicable

Audio Bitrate: Not Applicable

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/CIFS)

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub Streams

Client: VIGI Application, VIGI Security Manager, VIGI NVR, Web Interface

Web browsers: Google Chrome® 57 and higher, Firefox® 52 and higher, Safari® 11 and higher, Microsoft® Edge 91 and higher

cloud: yes

ONVIF: Yes

INTERFACES

Network Interface: 1 Self-adaptive 10/100M RJ45 Ethernet Port

Alarm: Not Applicable

Reset Button: Not Applicable

Power: DC Power Port

Button: Not Applicable

Video Output: Not Applicable

Built-in Storage: Not Applicable

Built-in Microphone: Not Applicable

Built-in Speaker: Not Applicable

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT

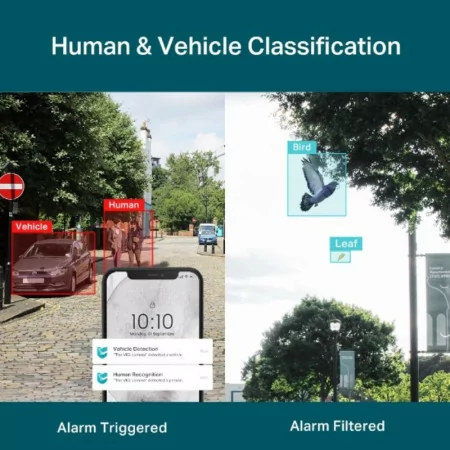

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Link: Message Notification

Connection Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL

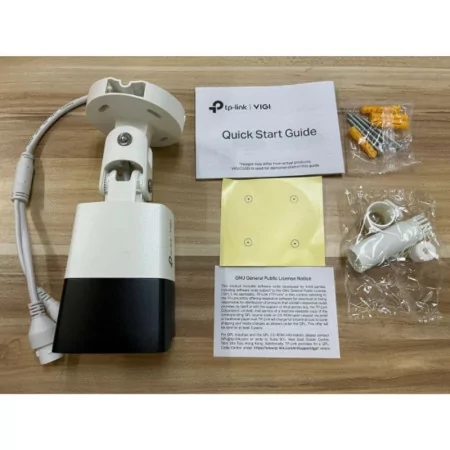

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Lower (Non-Condensing)

Operating Humidity: 95% or Lower (Non-Condensing)

Dimensions (H x W x D): 174 × 74 × 71 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Listener

Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Connector

PoE (802.3af/at, class 0)

Net Weight: 0.2 Kg

Gross Weight: 0.35 Kg

Power Consumption: 12V DC: Max. 5W

PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Connector

PoE (802.3af/at, class 0)

Protection: IP67

Product Dimensions (L x W x H): 174 × 74 × 71 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions: Main Stream:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution: 3MP (2304×1296)

Video Transmission: Main Stream

Subflow

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Auto/Scheduled

SMART FUNCTIONALITY

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Region Entry Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection, Vehicle

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Access)

Connection Method: Message Notification

Area of Interest: 1 Region
