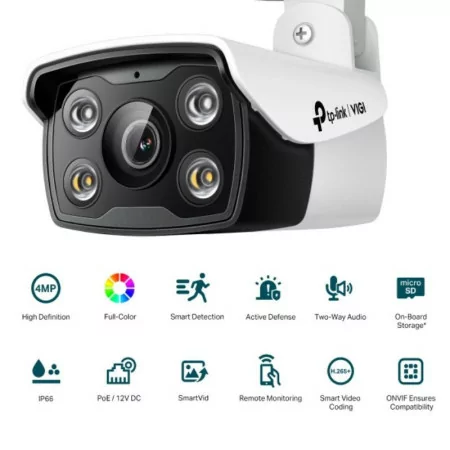

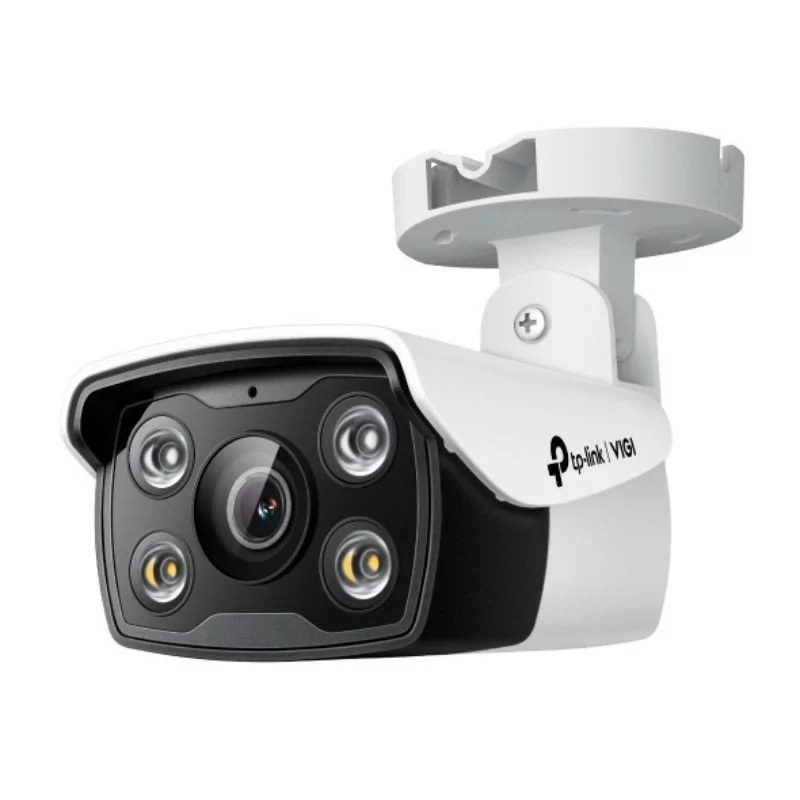

Specifications:

CHAMBER:

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: From 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: 0 lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Unified/Scheduled/Automatic

Lens: Fixed Focal Lens (2.8mm / 4mm / 6mm)

Aperture: 2.8mm: F1.6, 4mm: F1.6, 6mm: F1.6

Lens Mount: M12

Angle of View: (2.8 mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

(4 mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

(6 mm) Horizontal FOV: 50°, Vertical FOV: 27°, Diagonal FOV: 59°

IR Working Distance: 30m

Lighting Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP66

LENSES:

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm/4mm/6mm

Aperture: 2.8mm: F1.6, 4mm: F1.6, 6mm: F1.6

FOV: 2.8 mm:

Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°

4 mm:

Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

6 mm:

Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

Lens Mount: M12

DORI distance:

2.8 mm

Detect: 64m, Observe: 27m, Acknowledge: 13m, Identify: 6m

4 mm

Detect: 80m, Observe: 33m, Acknowledge: 16m, Identify: 8m

6 mm

Detect: 128m, Observe: 53m, Acknowledge: 26m, Identify: 13m

VIDEO:

Maximum Resolution: 2560 X 1440

Main Flow:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Flow:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported by Mainstream

H.265 Type: Main Profile

H.265+: Supported by Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR:

IR LEDs: Quantity: 2

Range: 30m

Wavelength: 850nm

White LEDs: Quantity: 2

Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL):

Scope: Pan: -90° to 90°, Tilt: -90° to 90°

IMAGE:

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO:

Audio Communication: Two-way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK:

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

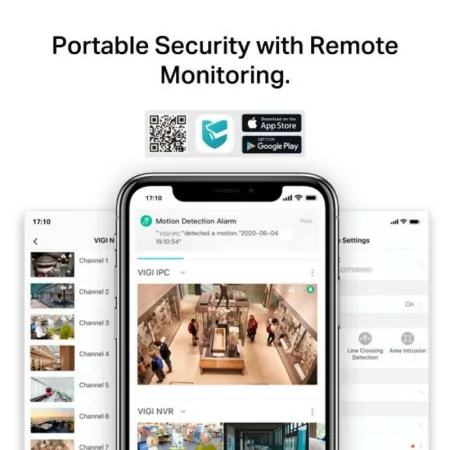

Client: VIGI Application, VIGI Security Manager, Web User Interface

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE:

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

Audio Input: Built-in Microphone

Audio Output: Built-in Speaker

Alarm: Not Applicable

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Slot: Micro SD card

Built-in Storage: Built-in Memory Card Slot, Supports MicroSD Card up to 256GB

Built-in Microphone: Yes; Records what happens within 15 feet of the camera

Built-in Speaker: Yes

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Area Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Link: Memory Card Video Recording, Message Notification, Sound Alert, White Light Flash

Connection Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL:

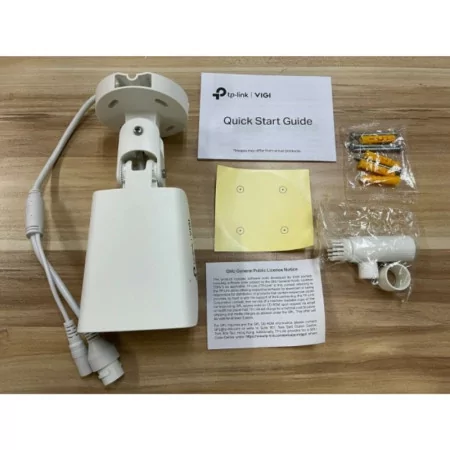

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories (Screws, Wall Anchors, Hex Wrench)

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Less (Non-Condensing)

Operating Humidity: 95% or Less (Non-Condensing)

Dimensions (H x W x D): 78 × 70 × 174 mm

Material: Plastic

Weight: 195g

General Features: Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Monitoring

Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug

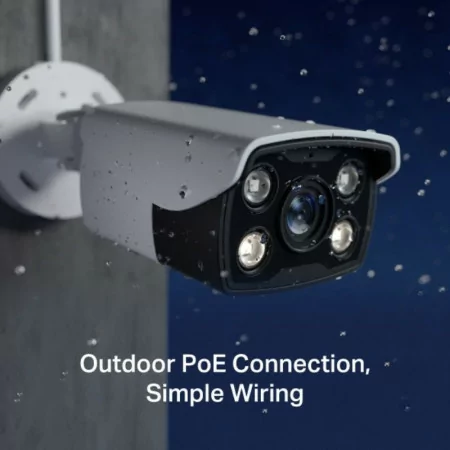

PoE (802.3af/at, class 0)

Net Weight: 0.28 Kg

Gross Weight: 0.42 Kg

Power Consumption: 12V DC: Max 7.5W

PoE: Class 0

Power Supply: 12V DC ±5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Protection: IP67

Product Dimensions (L x W x H): 78× 174 × 70 mm

Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE:

Video Compression: Main Stream: H.265+/H.265/H.264+//H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions: Main Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Subflow

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Video Stream: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURES:

Smart Event: Area Intrusion Detection, Line Crossing Detection, Human Detection

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (illegal access)

Binding Method: Activation Notification: ONVIF, HTTPS

Region of Interest: 1 Region

Brand

TP-Link

Reference

VIGI C340 6mm
