Specifications:

CHAMBER:

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: from 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Day/Night/Auto/Scheduled

Lens: 2.8mm/ 4mm/ 6mm

Aperture: 2.8mm: F2.2, 4mm: F2.2, 6mm: F2.0

Lens Mount: M12

Angle of View: 2.8mm, Diagonal FOV: 106.5°, 4mm, Diagonal FOV: 87.4°, 6mm, Diagonal FOV: 56°

IR Working Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP67

LENSES:

Type: Fixed Focus Lens

Focal Length: 2.8mm/4mm/6mm

Aperture: 2.8mm: F2.2, 4mm: F2.0, 6mm: F2.0

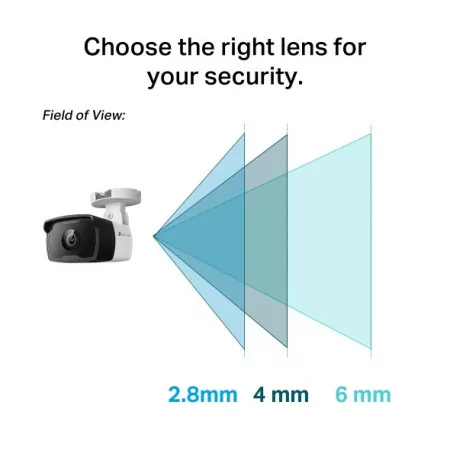

FOV: 2.8mm: Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°, 4mm: Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°, 6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°

Lens Mount: M12

DORI distance: 2.8 mm: Detection: 60 m, Observation: 25 m, Reconnaissance: 12 m, Identification: 6 m, 4 mm: Detection: 80 m, Observation: 33 m, Reconnaissance: 16 m, Identification: 8 m , 6 mm: Detection: 120 m, Observation: 50 m, Reconnaissance: 24 m, Identification: 12 m

VIDEO:

Max Resolution: 2560×1440

Main Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1 080, 1280x720

Sub Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 640x480, 352x288, 320x240

Bit Rate Control: CBR, VBR

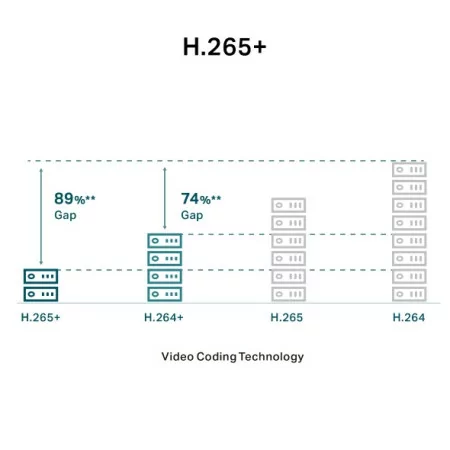

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

H.264 Type: Main Profile/High Profile, H.264+: Supported in Main Stream

H.265 Type: Main Profile, H.265+: Supported in Main Stream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps, Sub Stream: 64 Kbps to 512 Kbps

ILLUMINATOR:

IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm

White LED: No

Illuminator On/Off Control: Auto/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL):

Range: Pan: -90° to 90°, Tilt: -90° to 90°

IMAGE:

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

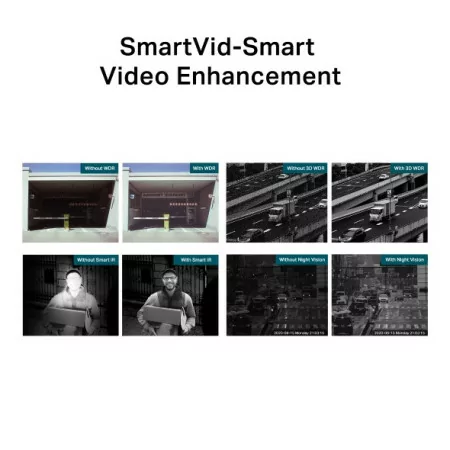

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO:

Audio Communication: No

Audio Input: No

Audio Output: No

Audio Compression: No

Audio Sampling Rate: No

Environmental Noise Filtering: No

Audio Bitrate: No

NETWORK:

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE:

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

alarm: no

Reset Button: No

Power: DC Power Port

Button: -

Video Output:-

Internal Storage: No

Built-in Microphone: No

Built-in Speaker: No

Audio: No

ALARM AND EVENT MANAGEMENT:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Association: Message Notification

Association Method: Not applicable

Outgoing Notification: Message Notification

GENERAL:

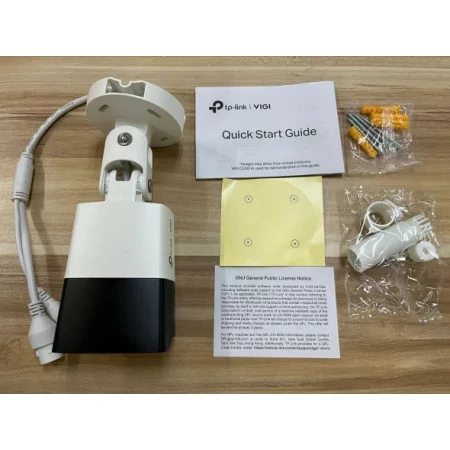

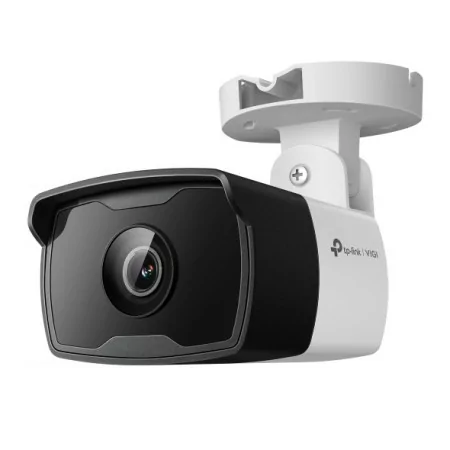

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or lower (No Condensation)

Operating Humidity: 95% or lower (non-condensing)

Dimensions (H x W x D): 174 × 74 × 71 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listener

Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Net Weight: 0.2 Kg

Gross Weight: 0.35 Kg

Power Consumption: 12V DC: Max. 5W

PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

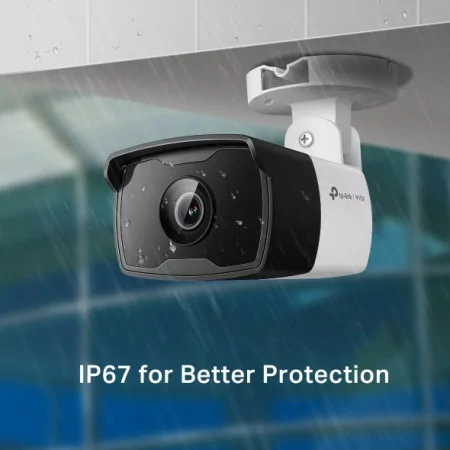

Protection: IP67

Product Dimensions (L x W x H): 73× 174 × 71 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE:

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

Frame Rate and Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720, Sub Stream: Frame Rate: 1fps, 5fps , 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 640x480, 352x288, 320x240

Max Resolution: 4MP (2560×1440)

Video Stream: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switching: Day/Night/Auto/Scheduled

SMART FEATURES:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection, Vehicles

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Access)

Association Method: Activation Notification: ONVIF, HTTPS

Region of Interest: 1 Region
