Specifications:

Chamber:

• Image Sensor: 1/3" CMOS
• Maximum Resolution: 2560 × 1440
• ROM: 16MB
• RAM: 64MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Minimum Lighting:

• 0.03 [email protected] (Color, 30 IRE)
• 0.003 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• Signal to Noise Ratio: > 56 dB
• Lighting Distance: 30 m (98.43 ft)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 1 (IR LED)

Pan/Tilt/Rotate Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens:

• Lens Type: Fixed Focal
• Lens Mount: M12
• Focal Length: 2.8 mm; 3.6mm
• Maximum Aperture: F2.0

Field of vision:

• 2.8 mm: Horizontal 90°, Vertical 50°, Diagonal 107°
• 3.6 mm: Horizontal 76°, Vertical 40°, Diagonal 92°
• Iris Control: Fixed

Close Focusing Distance:

• 2.8 mm: 1.0 m (3.28 ft)
• 3.6mm: 1.4m (4.59ft)

DORI Distance:

• Lens To detect Observe To recognize Identify
• 2.8mm 68.0m 27.2m 13.6m 6.8m
• 3.6mm 85.2m 34.1m 17.0m 8.5 m

Video:

• Video Compression: H.264B; H.264; H.264H; H.265
• Smart Codec: Smart H.265+; Smart H.264+
• Video Frame Rate:
• Main stream: 2560 × 1440 (1–20 fps)
• Substream: 640 × 480@(1–25 fps), 640 × 480@(1–30 fps)
• Stream Capacity: 2 streams
• Resolution: 2560×1440, 2304×1296, 1080p, 1.3M, 720p
• Bitrate Control: CBR/VBR
• Video Bitrate: H264: 24 kbps–4096 kbps, H265: 9 kbps–4096 kbps

Day Night:

• Auto (ICR)/Color/B/W
• BLC: Yes
• WDR:DWDR
• White Balance: Auto; Natural; street lamp; exterior; manual; regional custom
• Gain Control: Auto
• Noise Reduction: 3D NR
• Motion Detection: Off/On (4 areas, rectangular)
• Smart Lighting: Yes
• Image Rotation: 0°/180°
• Mirror: Yes

Audio:

• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Audio Compression: G.711a; G.711Mu

Alarm:

• Alarm Event: No SD card; full SD card; SD card error; network disconnection; IP conflict; unauthorized access; motion detection; video tampering; audio detection; change in intensity; SMD (human)

Network:

• Network Port: RJ-45 (10/100 Base-T)
• Wi-Fi: IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4G
• Wireless Range: Up to 150 m
• SDK and API: Yes
• Cybersecurity: Video encryption; configuration encryption; digest; WSSE; Account Block; security records; generation and import of X.509 certification; HTTPS; reliable start-up; reliable execution; reliable update
• Network Protocol: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
• Interoperability: ONVIF (S Profile/T Profile); CGI; P2P
• User/Host: 6 (Total bandwidth: 36M)

Storage:

• Micro SD card: Support up to 256 GB

Browsers:

• IE, Chrome, Firefox

Management software:

• Smart PSS, DSS, DMSS

Mobile Client:

• iOS, Android

Certifications:

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• CE-RED: Radio Equipment Directive 2014/53/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• FCC ID: FCC PART 15C

Energy:

• Power Supply: 12 VDC

Energy consumption:

• Basic: 2.1 W (12 VDC)
• Maximum (H.265+ IR intensity): 6.1 W (12 VDC)

Environment:

• Operating Temperature: –30°C to +50°C (–22°F to +122°F)
• Operating Humidity: ≤ 95%
• Storage Temperature: –40°C to +60°C (–40°F to +140°F)
• Protection: IP67

Structure:

• Case: Front: Plastic, Back: Plastic, Support: Metal
• Product Dimensions: 180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")
• Net Weight: 350.1 g (0.77 lb)
• Gross Weight: 588.1 g (1.30 lb)

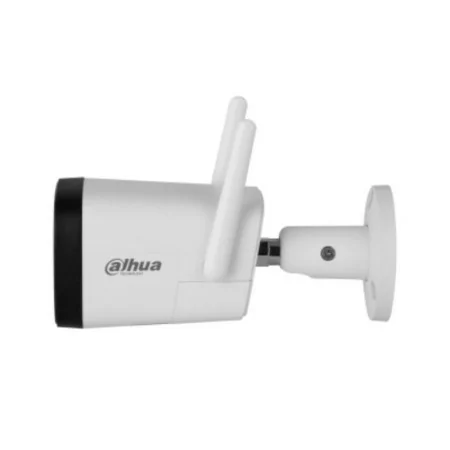

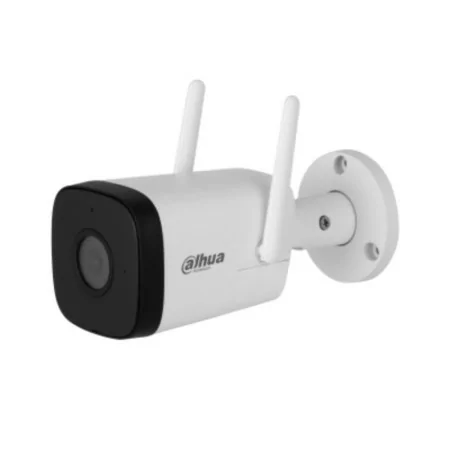

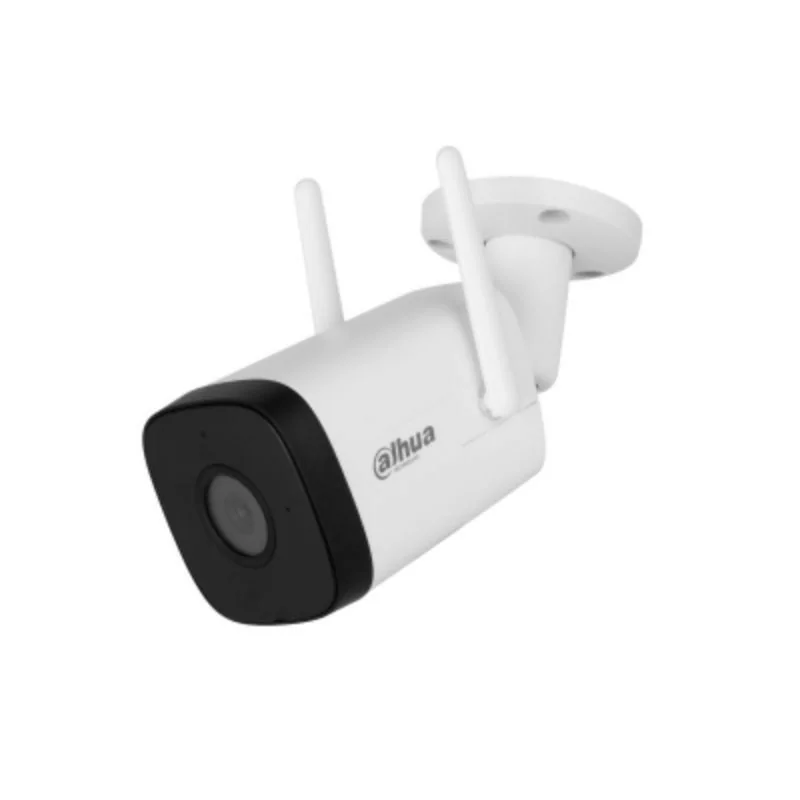

Brand

Dahua

Reference

IPC-HFW1430DT-STW
