Clarity and color all in one

Monitor crisp, colorful details 24/7, even on dark nights. VIGI's color camera offers maximum resolutions of 4MP and ensures color monitoring with its large aperture lens, high sensitivity sensor and attached supplemental lights.

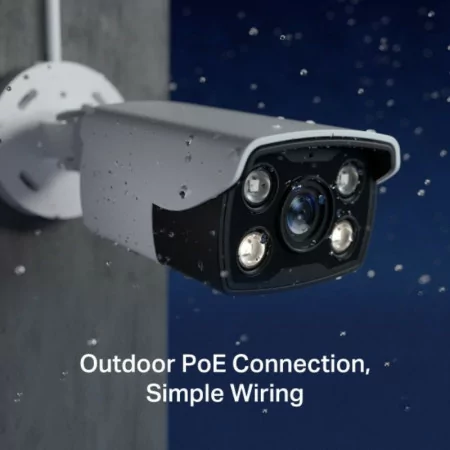

External PoE connection, simple wiring

Just connect your camera via RJ45 cable, then power supply and data transmission are taken care of. Waterproof hardware protects stable performance in outdoor scenarios.

Clarity and color all in one

Monitor crisp, colorful details 24/7, even on dark nights. VIGI's color camera offers maximum resolutions of 4MP and ensures color monitoring with its large aperture lens, high sensitivity sensor and attached supplemental lights.

Human and Vehicle Classification

Built-in AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to meet your monitoring needs and receive more accurate event notifications.

We are watching your business

Smart Detection. Supported by AI algorithms, the VIGI camera offers smarter detection. You'll receive notifications when someone crosses a boundary, enters an area you've defined, obstructs the camera, or removes/abandons objects.

never miss a detail

SmartVid-Smart Video Enhancement. VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

More compression. More economy. same quality

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

Waterproof. IP66 for better protection

Capable of withstanding temperatures from -30–60 °C

(-22–140 °F), VIGI performs well even in harsh ambient conditions with rain and dust.

Discover the best way to power your camera. PoE or 12V

PoE/12Vdc. Two forms of power supply not only provide more convenience, but also make wiring much easier.

Flexible installation and management

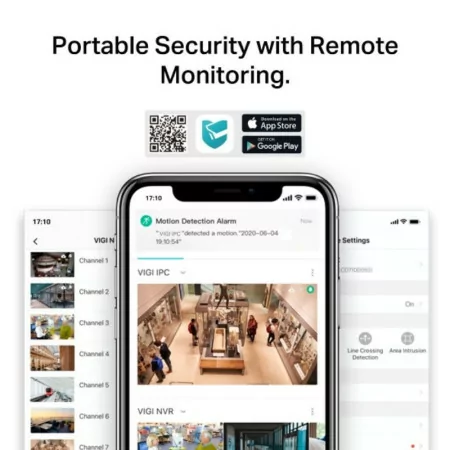

Easily route your camera cable to a recessed ceiling or avoid drilling it by fitting it into the camera's side outlet. Take full control over your security through three management methods: NVR UI, VIGI App and VIGI Security Manager.

A system. Total security

Run your business with peace of mind. TP-Link's VIGI professional surveillance system is dedicated to protecting the business you've worked hard to build - whenever and wherever. Our exceptional features, reliable quality assurances, and streamlined installation work together to ensure your business remains safe and secure.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Shutter speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum lighting color: 0.1 Lux; 0Lux with IR

Day/night mechanism infrared cut filter

Day/Night Change Day/Night/Auto/Time-Change

Lens 2.8mm/ 4mm/ 6mm

Aperture 2.8mm: F2.2 / 4mm: F2.2 / 6mm: F2.0

M12 lens mount

Angle of view 2.8mm, diagonal FOV: 106.5° / 4mm, diagonal FOV: 87.4° / 6mm, diagonal FOV: 56°

Working Distance IR 30m

IP66 weatherproof rating

3D DNR Digital Noise Reduction

WDR DWDR

VIDEO

Max. Resolution 2560 × 1440

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720.

Bit rate control CBR, VBR

Video compression main stream: H.265+/H.265/H.264+/H.264

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Substream: 64 Kbps to 512 Kbps

LIGHTING

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

Illuminator On/Off Control Auto/Programmed/Always on/Always off


Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client software adjustable white balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range DWDR

SNR ≥ 52 dB

Image Parameters Exchange Yes

Privacy mask Up to 4 masks

NETWORK

Security password protection, HTTPS encryption, IP address filtering, Digest authentication

NAS network storage (NFS, SMB/CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS.

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

DC Power Port / rj45 power supply

ALARM AND EVENT MANAGEMENT

Intelligent people and vehicle classification, area intrusion detection, cross line detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection

Basic event motion detection, video tampering detection, exception (illegal login)

Alarm link message push

Outgoing notification message push

IN GENERAL

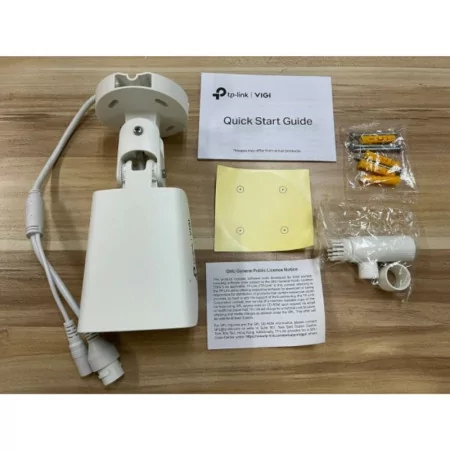

Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Connections, Mounting Accessories

Dimensions (HXLXP) 174 × 74 × 71 mm

Plastic Material

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

Power Requirements 12V DC ±5%, 5.5mm coaxial power plug, PoE (802.3af/at, class 0)

Gross Weight 0.35 Kg

12V DC power consumption: Max 5W

PoE: Class 0

Power supply 12V DC ±5%, 5.5mm coaxial power plug

PoE (802.3af/at, class 0)

IP66 protection

Product dimensions (L x W x H) 73 × 174 × 71 mm

Brand

TP-Link

Reference

VIGI C340 2.8mm
