Specifications

CHAMBER

1/3” Progressive Scan CMOS Image Sensor

Shutter Speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism IR Cut Filter

Day/Night Switch Day/Night/Auto/Scheduled

Lens 2.8mm/ 4mm/ 6mm

Aperture 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

M12 Lens Support

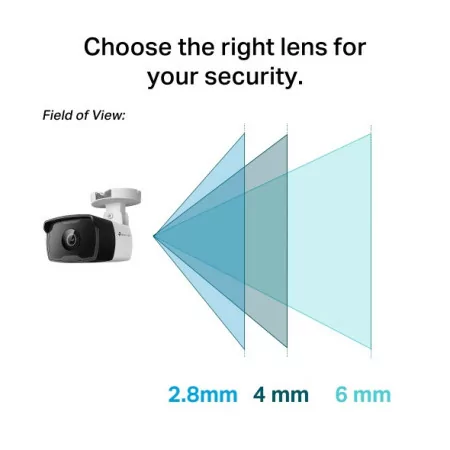

Viewing Angle 2.8 mm, Diagonal FOV: 106.5°

4 mm, Diagonal FOV: 85.1°

6 mm, Diagonal FOV: 56°

Working Distance IR 30m

3D DNR Digital Noise Reduction

WDR DWDR

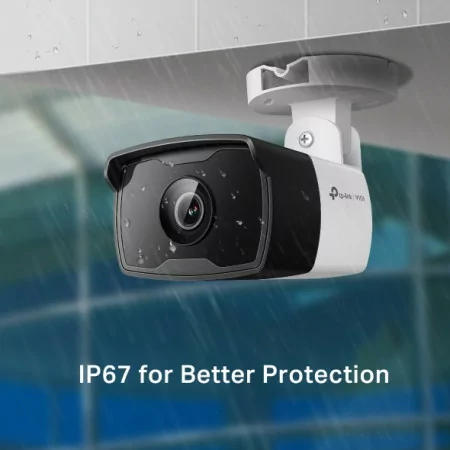

IP67 Weatherproof Rating

LENSES

Fixed Focal Lens Type

Focal Length 2.8mm/4mm/6mm

Aperture 2.8mm: F2.2

4mm: F2.0

6mm: F2.0

FOV 2.8 mm:

Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°

4 mm: Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°

6 mm: Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°

M12 Lens Support

Distance DORI 2.8 mm:

Detection: 45 m

Note: 19m

Recognition: 9m

Identification: 5 m

4 mm:

Detection: 60m

Note: 25m

Recognition: 12m

Identification: 6 m

6 mm:

Detection: 91m

Note: 38m

Recognition: 18m

Identification: 9 m

VIDEO

Maximum Resolution 1920 × 1080

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control CBR, VBR

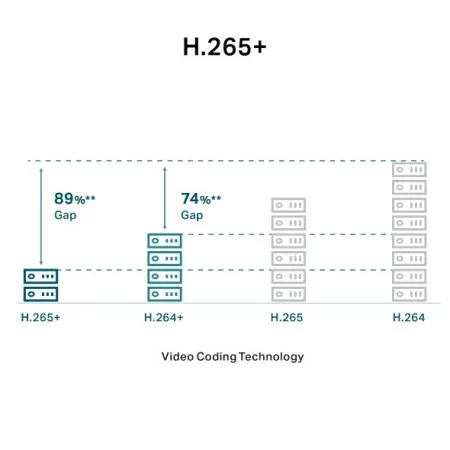

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Type H.264 Main Profile/High Profile

H.264+ Mainstream Support

Type H.265 Main Profile

H.265+ Mainstream Support

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED No

Illuminator Control On/Off Auto/Scheduled/On Always/Off Always

ANGLE ADJUSTMENT (MANUAL)

Pan Range: -90° to 90°

Tilt: -90° to 90°


Image Settings Mirroring, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

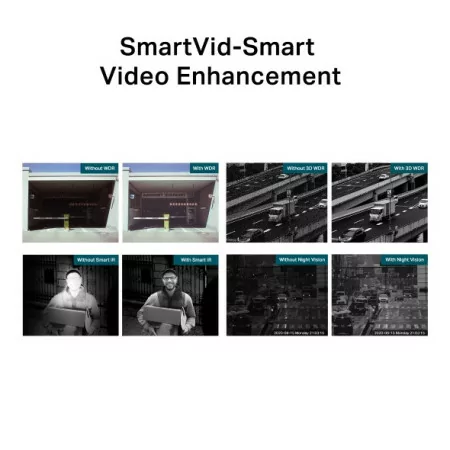

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range DWDR

SNR ≥ 52 dB

Picture Parameter Switch Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setup Yes

AUDIO

Audio Communication N/A

Audio Input N/A

Audio Output N/A

Audio Compression N/A

Audio Sampling Rate N/A

Environmental Noise Filtering N/A

Audio Bitrate N/A

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

NAS Network Storage (NFS, SMB/CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous Live View 3 Main Streams and 3 Sub-Streams

VIGI App Client, VIGI Security Manager, VIGI NVR

Google Chrome® Web Browser 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 Self-Adaptive 10/100M RJ45 Ethernet Port

Alarm N/A

Reset Button N/A

Power DC Power Port

Button -

Video Out -

Built-in Storage N/A

Built-in Microphone N/A

Built-in Speaker N/A

Audio N/A

ALARM AND EVENT MANAGEMENT

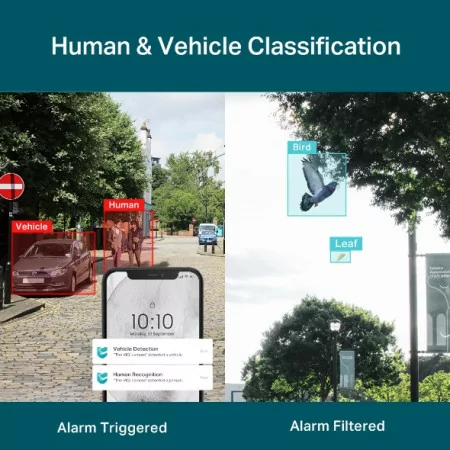

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Area Entry Detection, Area Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Video Tampering Detection, Exception (Illegal Login)

Alarm Binding Message Sending

Binding Method N/A

Output Notification Message Sending

GENERAL

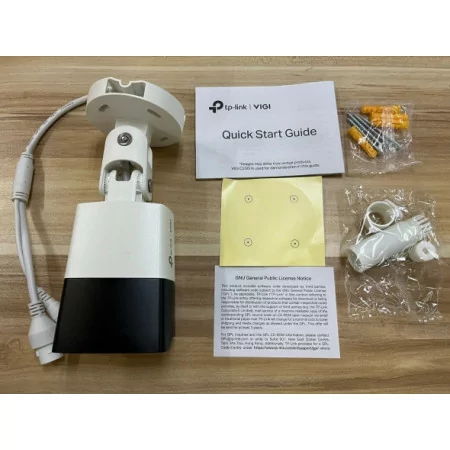

Package Contents VIGI Network Camera

Quick Start Guide

Waterproof Cable Accessories

Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Less (Non-Condensation)

Operating Humidity 95% or Less (Non-Condensation)

Dimensions (H x W x D) 174 × 74 × 71 mm

Plastic Material

General Features Two Streams, Mirroring, Privacy Masks, Password Reset via Email, HTTP Listener

Power Requirements PoE (802.3af/at, class 0)

Net Weight 0.2 Kg

Gross Weight 0.35 Kg

PoE Power Consumption: Class 0

PoE Power Source (802.3af/at, class 0)

IP67 protection

Product Dimensions (H x W x D) 73 × 174 × 71 mm

CE/BSMI/VCCI/ONVIF certifications

VIDEO/IMAGE

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 1920x1080, 1280x960, 1280x720

Sub-Flow:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Maximum Resolution 2MP (1920×1080)

Main Stream Video Transmission

Subflow

Image Settings Mirroring, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Scheduled

SMART FEATURES

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Area Entry Detection, Area Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Trigger Notification Binding Method: ONVIF, HTTPS

Region of Interest 1 Region

Brand

TP-Link

Reference

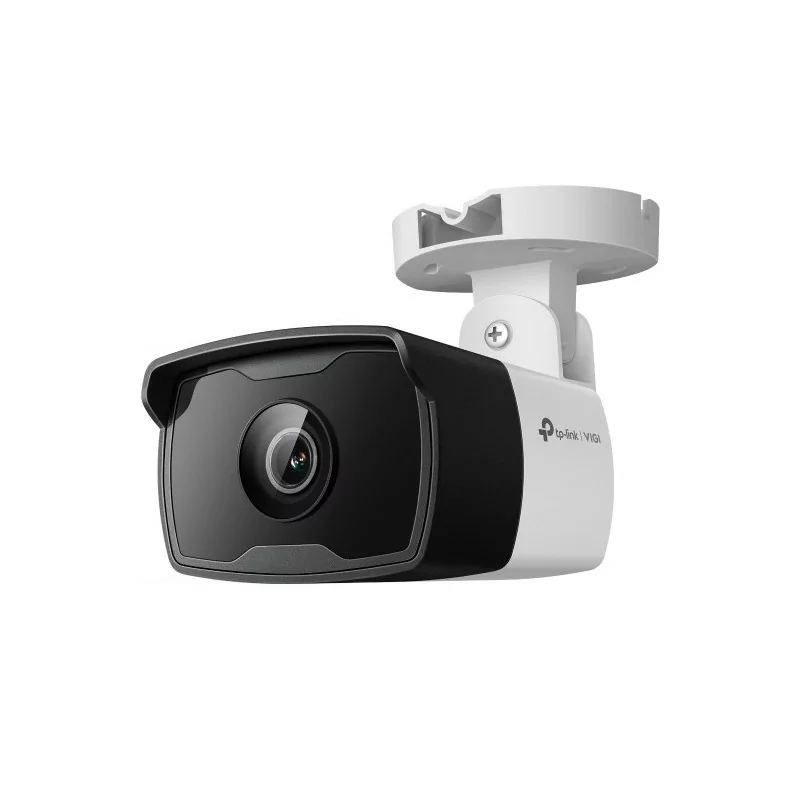

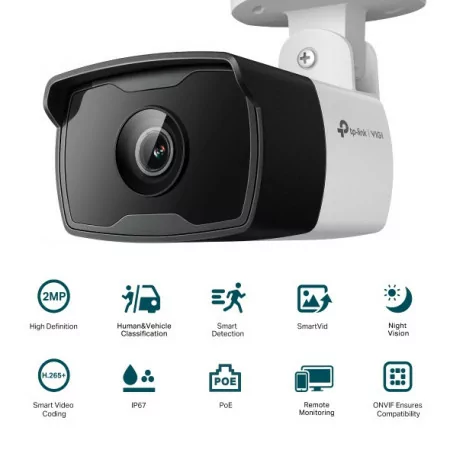

VIGI C320I 2.8mm

Stock Online

Available

Stock Store

Available soon
