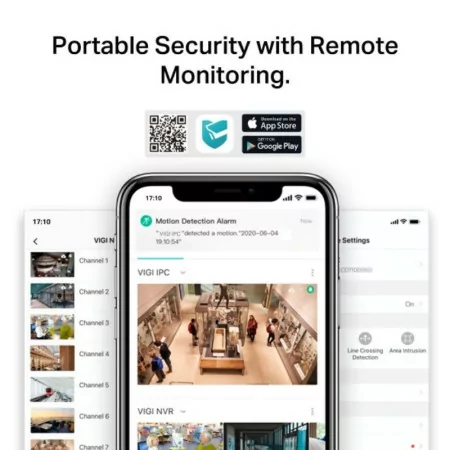

smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

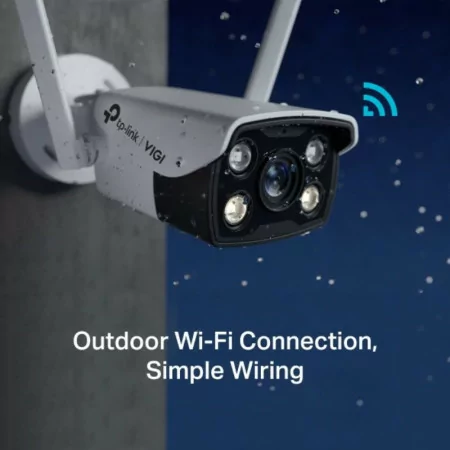

Wireless external connection

Simple and fast deployment with Wi-Fi signals.

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

4MP super high definition

The VIGI Bullet C440-W camera comes with 4MP, more than enough to capture some of the finest details.

Full-Color 24h

Get 24-hour color detail, even in total darkness, via the high-sensitivity sensor and included floodlight LEDs.

Specifications:

CHAMBER:

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: From 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Day/Night/Automatic/Scheduled

LENSES:

Lens Type: Fixed Focal Lens

Focal Length: 4mm

Aperture: F1.6

FOV: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount: M12

DORI distance: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m

VIDEO:

Maximum Resolution: 2560 X 1440

Main Flow:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Flow:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported by Mainstream

H.265 Type: Main Profile

H.265+: Supported by Mainstream

Video Bitrate: Main Stream: 256 Kbps to 3 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR:

IR LEDs: Quantity: 2

Range: 30m

Wavelength: 850nm

White LEDs: Quantity: 2

Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL):

Scope: Pan: -90° to 90°, Tilt: -90° to 90°

IMAGE:

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO:

Audio Communication: Two-way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK:

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: Open Network Video Interface (Profile S)

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI Application, VIGI Security Manager, VIGI NVR, Web

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE:

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

Alarm: Not Applicable

Reset Button: Yes

Power: DC Power Port

Built-in Storage: Built-in Memory Card Slot, Supports MicroSD Card up to 256GB

Built-in Microphone: Yes; Records what happens within 15 feet of the camera

Built-in Speaker: Yes

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Area Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Link: Memory Card Video Recording, Message Notification, Sound Alert, White Light Flash

Connection Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL:

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Power Adapter, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Less (Non-Condensing)

Operating Humidity: 95% or Less (Non-Condensing)

Material: Plastic

Net Weight: 0.31 Kg

Gross Weight: 0.6 Kg

Power Consumption: Maximum: 8.5 W, Typical (Day Mode): 2.14 W, Typical (Night Mode with IR LEDs): 3.66 W, Typical (Night Mode with White LEDs): 3.84 W

Power Supply: 12V DC ±5%, 5.5mm Coaxial Power Plug

Antenna: Quantity: 2, Type: 2.4GHz Soldered Omnidirectional Dipole Antenna, Gain: 2.0dBi

Protection: IP66

Product Dimensions (L x W x H): 80× 173 × 71 mm (excluding antennas)

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ

WIRELESS NETWORK:

Standards: IEEE 802.11b/g/n

WiFi channels: UN: 1-13, US: 1-11

Frequency: 2.4GHz

Wireless Transmission Power: High

Automatic Wireless Channel: Not Applicable

Wireless Stats: Not Applicable

Throughput Monitor: Not Applicable

Radio Bandwidth: Auto: Not Applicable, 20M: Yes, 40M: Yes

Wireless Rate: 11Mbps(802.11b), 54Mbps(802.11g), 150Mbps(802.11n)

Wireless Security: PWPA/WPA2-PSK

Wireless Mode: AP, AP Client

Brand

TP-Link

Reference

VIGI C340-W 4mm

Stock Online

Available

Stock Store

Available soon
