Human and Vehicle Classification

Built-in AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to meet your monitoring needs and receive more accurate event notifications.

We are watching your business

Smart Detection. Supported by AI algorithms, the VIGI camera offers smarter detection. You'll receive notifications when someone crosses a boundary, enters an area you've defined, obstructs the camera, or removes/abandons objects.

never miss a detail

SmartVid-Smart Video Enhancement. VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

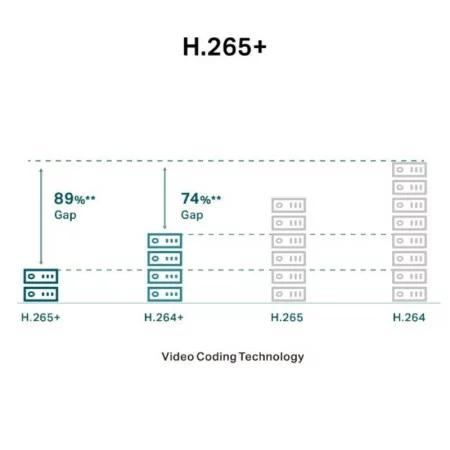

More compression. More economy. same quality

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

Corridor Mode

Rotate the live image and lens 90° clockwise simultaneously. In this way, the aspect ratio changes from 16:9 to 9:16, helping you to monitor long and narrow areas and providing a more natural viewing experience.

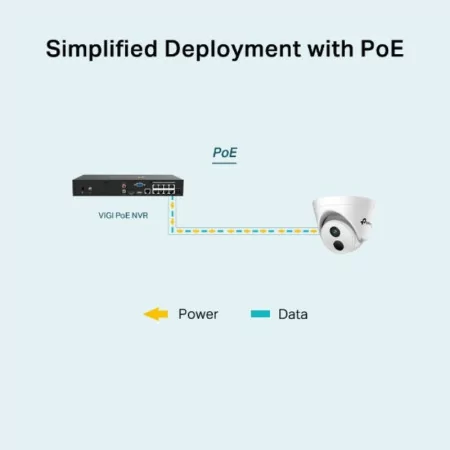

Simplified deployment with PoE

Easily connect and power your PoE camera with an RJ45 cable transmitting data and power. No power adapter needed.

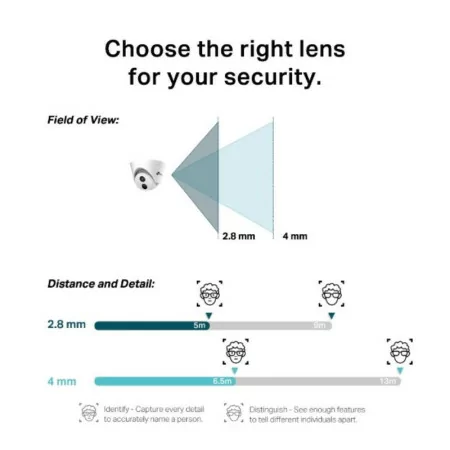

Choose the right lens for your safety

2.8 or 4mm lens. Whether you need a wide-angle lens for covering confined spaces like elevators or a longer millimeter lens for longer distances in open spaces like parking lots, the C420I comes with two different lens versions to better meet your security needs.

Flexible installation and management

Easily route your camera cable to a recessed ceiling or avoid drilling it by fitting it into the camera's side outlet. Take full control over your security through three management methods: NVR UI, VIGI App and VIGI Security Manager.

A system. Total security

Run your business with peace of mind. TP-Link's VIGI professional surveillance system is dedicated to protecting the business you've worked hard to build - whenever and wherever. Our exceptional features, reliable quality assurances, and streamlined installation work together to ensure your business remains safe and secure.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Minimum lighting color: 0.1 Lux; 0Lux with IR

Day/night mechanism infrared cut filter

Lens 2.8mm / 4mm

Aperture 2.8mm: F2.2 / 4mm: F2.0

M12 lens mount

Viewing angle 2.8mm: 88.2°/48.7°/106.5° (A/V/D) / 4mm: 74.6°/41.3°/88.1° (A/V/D) V/D)

Working Distance IR 30m

3D DNR Digital Noise Reduction

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication: TCP/IP Protocol, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

IN GENERAL

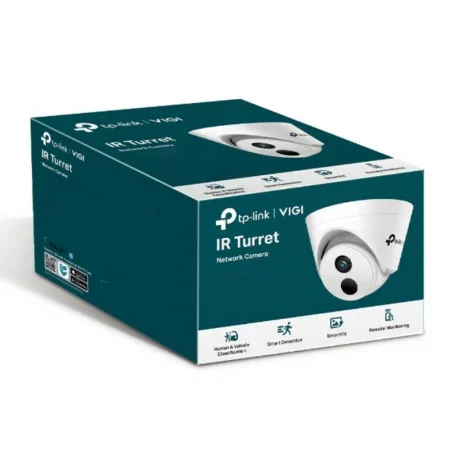

Package Contents VIGI Network Camera, Quick Start Guide, Mounting Accessories

Dimensions (HXLXP) 123 × 123 × 83 mm

Plastic Material

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

PoE power supply (802.3af/at, class 0)

Power Consumption PoE: Class 0

CE/BSMI/VCCI/ONVIF Certifications

VIDEO/IMAGE

Video compression main stream: H.265+/H.265/H.264+/H.264

Subflow: H.265/H.264

Main stream of frame rate and resolutions:

Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 1920x1080, 1280x960, 1280x720

Substream: Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

max. 2MP resolution (1920×1080)

Video streaming main stream

sub transmission

Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client software adjustable white balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Time

Brand

TP-Link

Reference

VIGI C420I 2.8mm
