smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

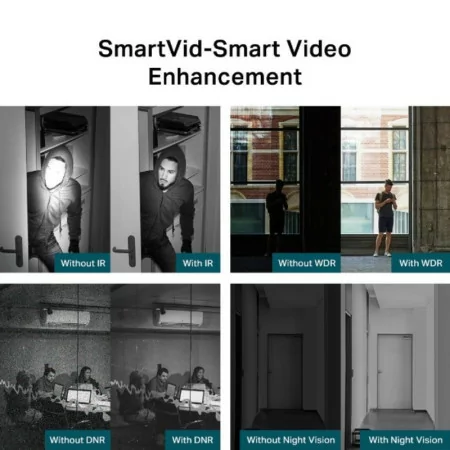

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

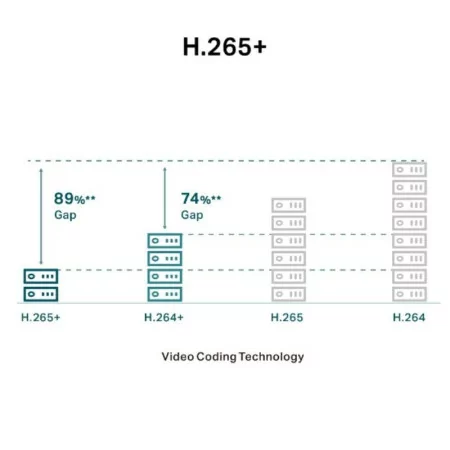

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

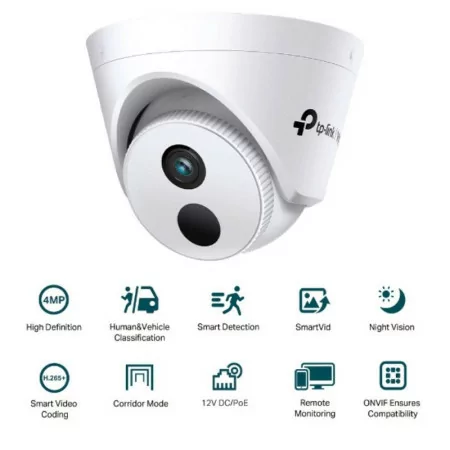

4MP super high definition

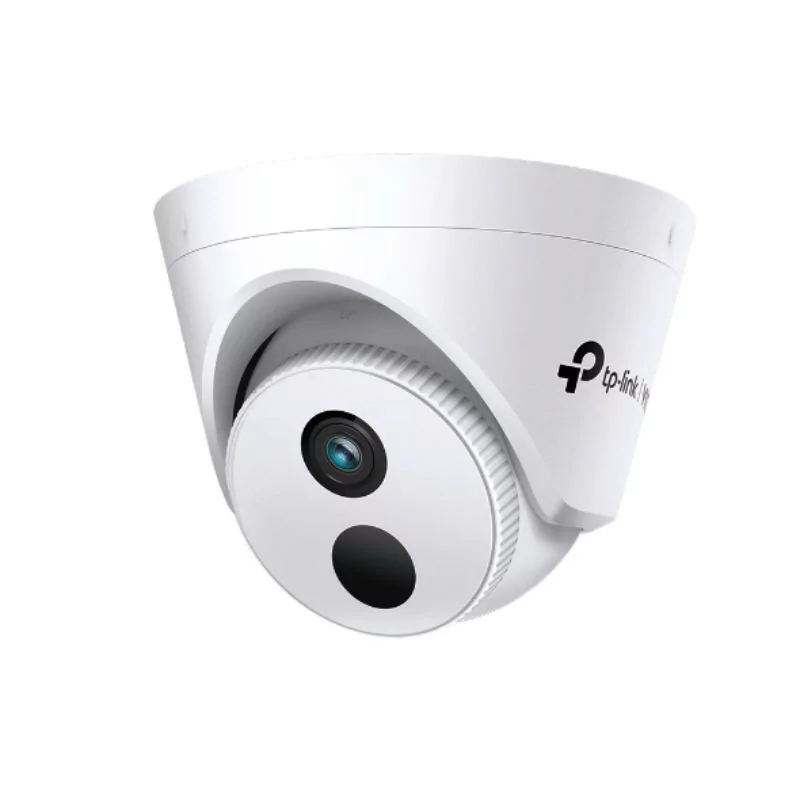

The VIGI C420I camera comes with 4MP, more than enough to capture some of the finest details.

Classification of humans and vehicles

Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Minimum lighting color: 0.1 Lux; 0Lux with IR

Day/night mechanism infrared cut filter

Lens 2.8mm / 4mm

Aperture 2.8mm: F2.2 / 4mm: F2.0

M12 lens mount

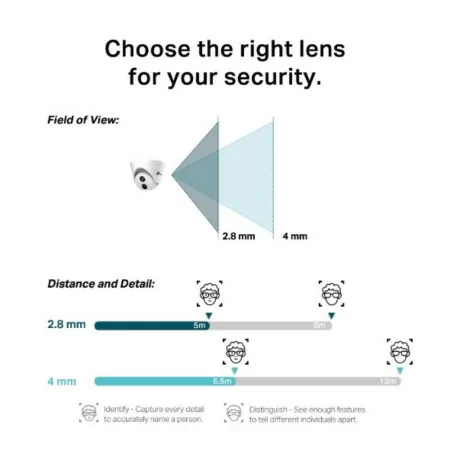

Viewing angle 2.8 mm: 88.2°/48.7°/106.5° (A/V/D) / 4 mm: 74.6°/41.3°/88.1° (A/V/D) V/D)

Working Distance IR 30m

3D DNR Digital Noise Reduction

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication: TCP/IP Protocol, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

IN GENERAL

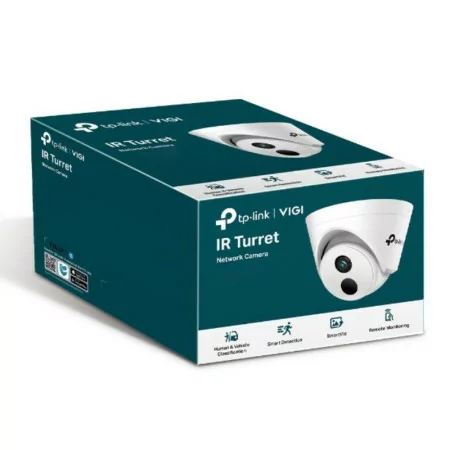

Package Contents VIGI Network Camera, Quick Start Guide, Mounting Accessories

Dimensions (HXLXP) 123 × 123 × 83 mm

Plastic Material

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

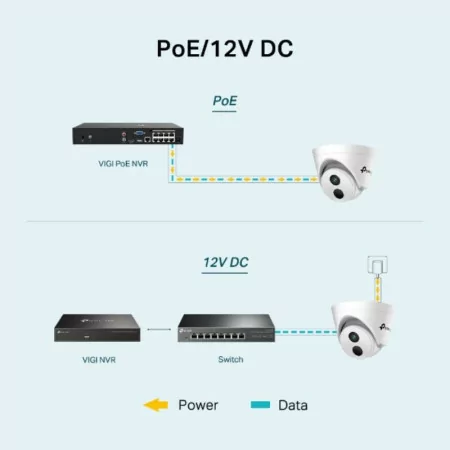

PoE power supply (802.3af/at, class 0)

Power Consumption PoE: Class 0

CE/BSMI/VCCI/ONVIF Certifications

VIDEO/IMAGE

Video compression main stream: H.265+/H.265/H.264+/H.264

Subflow: H.265/H.264

Main stream of frame rate and resolutions:

Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Max. Resolution 4MP (2560 × 1440)

Video streaming main stream

sub transmission

Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client software adjustable white balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Time
