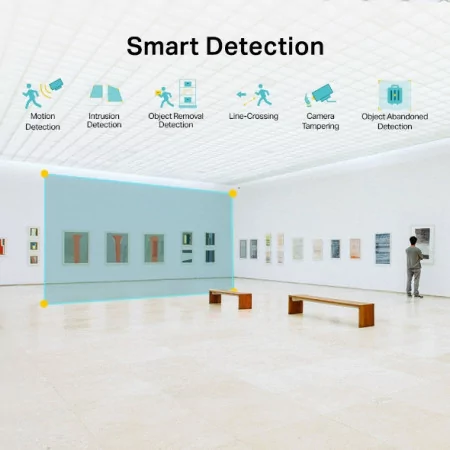

smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

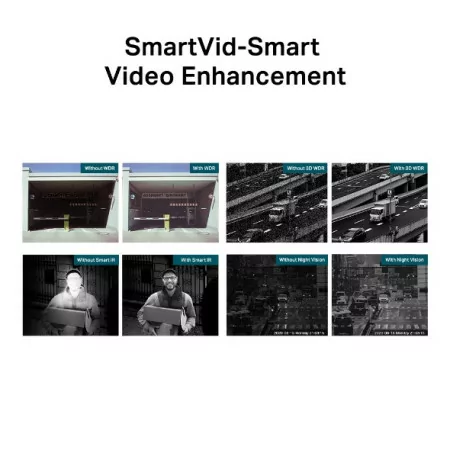

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

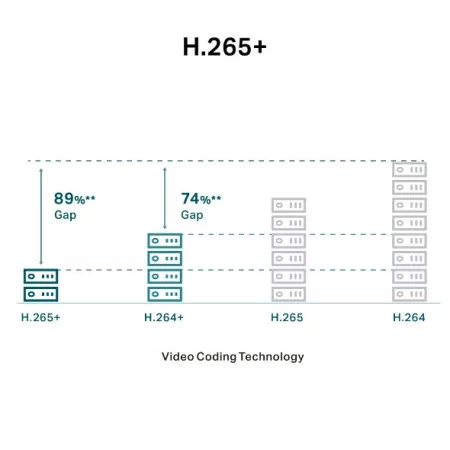

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

2MP super high definition

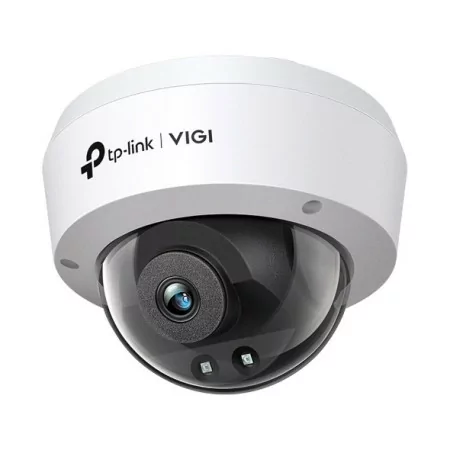

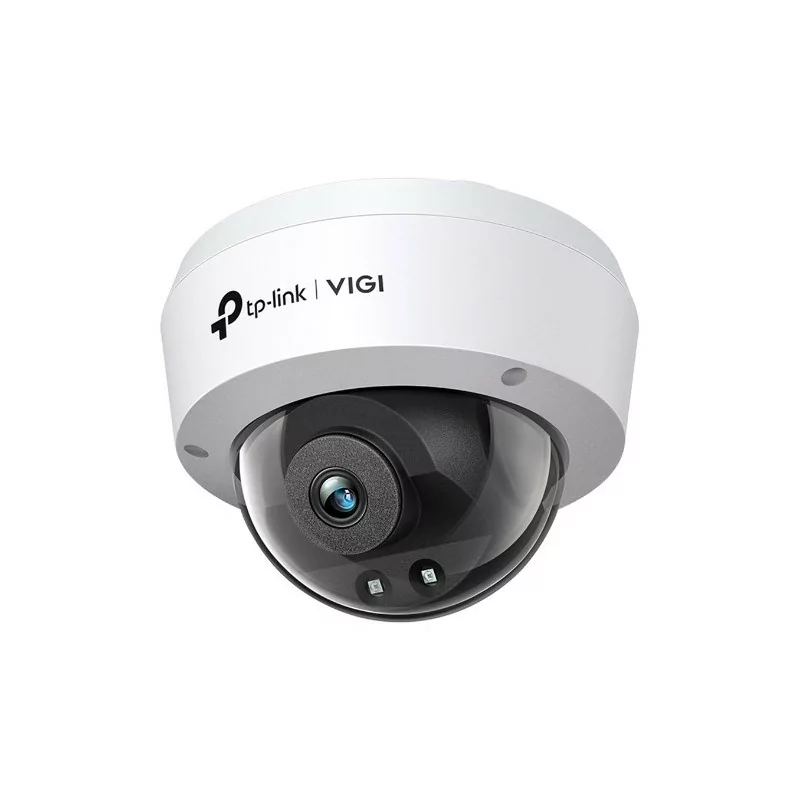

The VIGI C220I camera comes with 2MP, more than enough to capture some of the finest details.

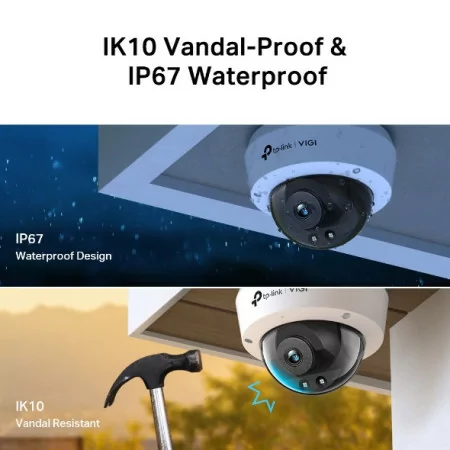

IK10 vandal-proof and IP67 waterproof

With its rugged, vandal-resistant housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

Specifications:

CHAMBER

Image Sensor: 1/3 inch Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.01 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Automatic

LENS

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm/4mm

Aperture: 2.8mm: F2.2

4mm: F2.0

FOV: 2.8 mm:

Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°

4 mm:

Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°

Lens Mount: M12

DORI distance: 2.8 mm:

Detection: 45 m

Note: 19m

Recognition: 9m

Identification: 5 m

4 mm:

Detection: 60m

Note: 25m

Recognition: 12m

Identification: 6 m

VIDEO

Max Resolution: 1920×1080

Main Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Sub-Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 2

Range: 30m

Wavelength: 850nm

White LED: Not Applicable

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: 0° to 355°

Tilt: 0° to 75°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, HLC Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR (Signal-to-Noise Ratio): ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI (Area of Interest): 1 Region

OSD Setting (On Screen Display): Yes

AUDIO

Audio Communication: Not Applicable

Audio Input: Not Applicable

Audio Output: Not Applicable

Audio Compression: Not Applicable

Audio Sampling Rate: Not Applicable

Environmental Noise Filter: Not Applicable

Audio Bitrate: Not Applicable

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub Streams

Client: VIGI Application, VIGI Security Manager, Web User Interface

Web Browsers: Not Applicable

cloud: yes

ONVIF: Yes

INTERFACE

Network Interface: 1 Autonegotiation RJ45 10/100M Ethernet Port

Alarm: Not Applicable

Reset Button: Not Applicable

Food: Not Applicable

Built-in Storage: Not Applicable

Built-in Microphone: Not Applicable

Built-in Speaker: Not Applicable

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Association: Message Notification

Association Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Lower (Non-Condensing)

Operating Humidity: 95% or Lower (Non-Condensing)

Material: Plastic

Net Weight: 0.26 Kg

Gross Weight: 0.43 Kg

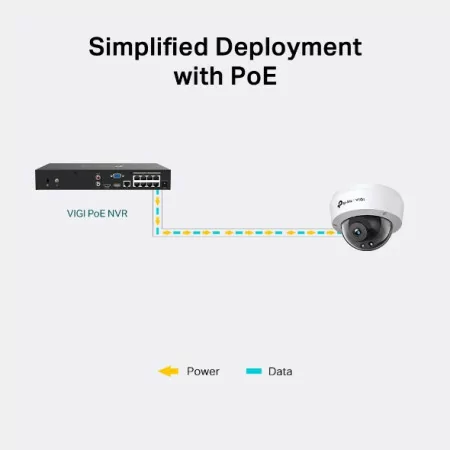

Power Supply: PoE: 802.3af/at, Class 0, Max. 5.5W

Protection: IP67, IK10

Product Dimensions (L x W x H): 115 × 86 × 115 mm

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
