Specifications:

CHAMBER

Image Sensor: 1/2.8” Progressive Scan CMOS

Shutter Speed: From 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Unified/Scheduled/Automatic

Lens: 2.8mm/4mm

Aperture: 2.8mm: F1.6; 4mm: F1.6

Lens Mount: M12

Viewing Angle: 2.8mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP67

LENS

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm/4mm

Aperture: 2.8mm: F1.6; 4mm: F1.6

FOV: 2.8 mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Lens Mount: M12

DORI distance: 2.8 mm:

Detect: 52m; Note: 22m; Recognize: 10m; Identify: 5m

4 mm:

Detect: 70m; Note: 29m; Recognize: 14m; Identify: 7m

VIDEO

Max Resolution: 2304×1296

Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Secondary Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 704x576, 640x480, 352x288, 320x240

Bit Rate Control: CBR, VBR

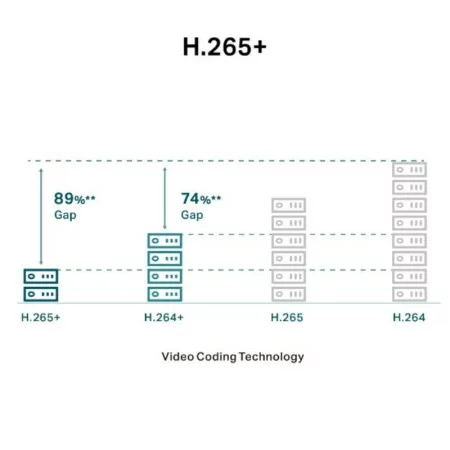

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.265 Type: Main Profile

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 1; Range: 30m; Wavelength: 850nm

White LED: Quantity: 1; Range: 30m; On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: 0° to 355°; Tilt: 0° to 75°


Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Privacy Masks: Up to 4 Masks

ROI: 1 Region

OSD Settings: Yes

AUDIO

Audio Communication: Unavailable

Audio Input: Yes

Audio Output: Unavailable

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub Streams

Client: VIGI Application, VIGI Security Manager, VIGI Network Video Recorder, Web

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACES

Network Interface: 1 RJ45 10/100M Auto-Adaptive Ethernet Port

Alarm: Unavailable

Reset Button: Unavailable

Power: DC Power Port

Button: Unavailable

Video Output: Unavailable

Built-in Storage: Unavailable

Built-in Microphone: Yes

Built-in Speaker: Not available

Audio: Unavailable

ALARM AND EVENT MANAGEMENT

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Login)

Alarm Link: White Light Flashing, Message Push

Connection Method: Unavailable

Departure Notification: Message Sending

GENERAL

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Less (Non-Condensation)

Operating Humidity: 95% or Less (Non-Condensation)

Dimensions (H x W x D): 115 × 115 × 86 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Listener

Net Weight: VIGI C230 (2.8mm): 0.2 Kg; VIGI C230(4mm): 0.28 Kg

Gross Weight: VIGI C230 (2.8mm): 0.35 Kg; VIGI C230(4mm): 0.47 Kg

Power Consumption: 12V DC: Max. 4.7W; PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Connector; PoE (802.3af/at, class 0)

Vandal Resistant: IK10

Protection: IP67, IK10

Product Dimensions (L x W x H): 115 × 86 × 115 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Flow: H.265/H.264

Frame Rate and Resolutions: Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution: 3MP (2304×1296)

Video Stream: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Automatic/Scheduled

INTELLIGENT FEATURES SET

Smart Event: Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Access)

Binding Method: Trigger Notification: ONVIF, HTTPS

Region of Interest: 1 Region

Brand

TP-Link

Reference

VIGI C230 2.8mm
