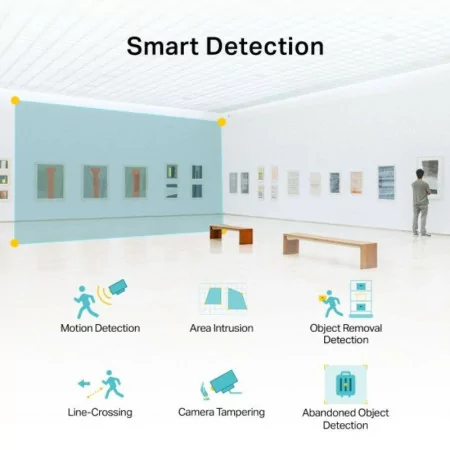

smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

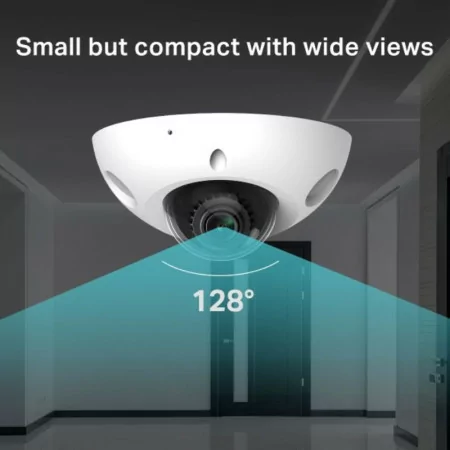

Small but compact with expansive views

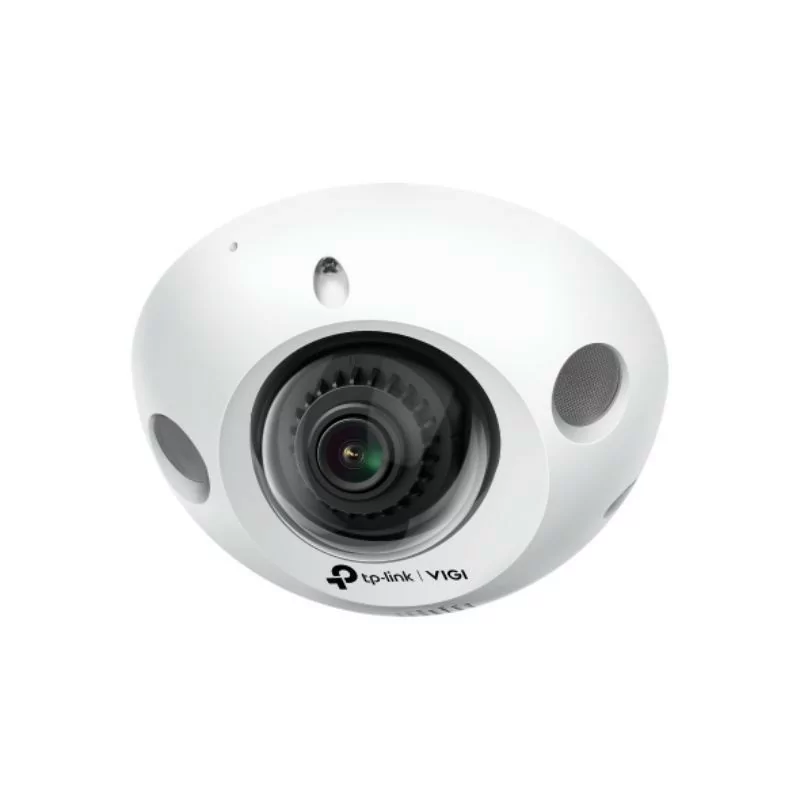

With a small, compact form factor and a 2.8mm ultra-wide-angle lens, the VIGI C230I Mini camera is ideal for hallways, elevators, small warehouses and convenience stores where space is limited and a wide view is required. .

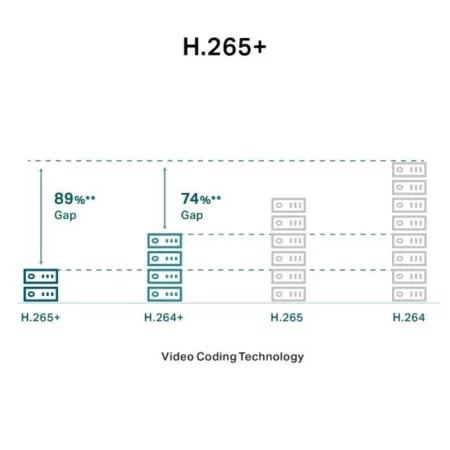

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

3MP super high definition

The VIGI C230I Mini camera comes with 3MP, more than enough to capture some of the finest details.

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

Specifications:

CHAMBER

Image Sensor: 1/2.8 inch Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Automatic

Lens: 2.8mm

Aperture: F1.6

Lens Mount: M12

Angle of View: Horizontal FOV: 106.9°, Vertical FOV: 56.9°, Diagonal FOV: 127.9°

IR Working Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

LENS

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm

Aperture: F1.6

FOV: 2.8mm: Horizontal FOV: 106.9°, Vertical FOV: 56.9°, Diagonal FOV: 127.9°

Lens Mount: M12

DORI distance: 2.8 mm;

Detection: 49m

Note: 20m

Recognition: 10m

Identification: 5 m

VIDEO

Max Resolution: 2304×1296

Main Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Sub-Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 2

Range: 30m

Wavelength: 850nm

White LED: Not Applicable

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: -30° to 30°

Tilt: 0° to 85°

Rotation: -15° to 15°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR (Signal-to-Noise Ratio): ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI (Area of Interest): 1 Region

OSD Setting (On Screen Display): Yes

AUDIO

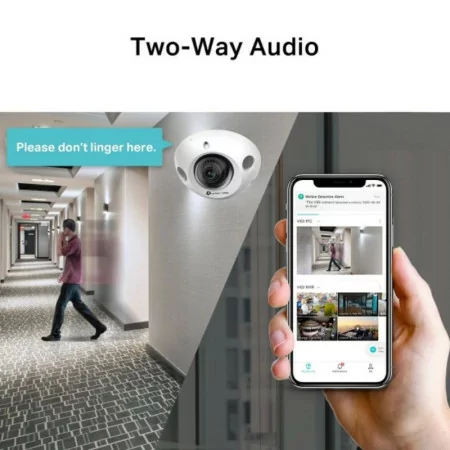

Audio Communication: Two-way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filter: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub Streams

Client: VIGI App, VIGI Security Manager, VIGI Network Video Recorder, Web

Web Browser: Open Network Video Interface (S Profile)

cloud: yes

ONVIF: Yes

INTERFACE

Network Interface: 1 Autonegotiation RJ45 10/100M Ethernet Port

Alarm: Not Applicable

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Video Output:-

Built-in Storage: Built-in Memory Card Slot, MicroSD Card Support, Up to 256 GB

Built-in Microphone: Yes

Built-in Speaker: Yes

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT

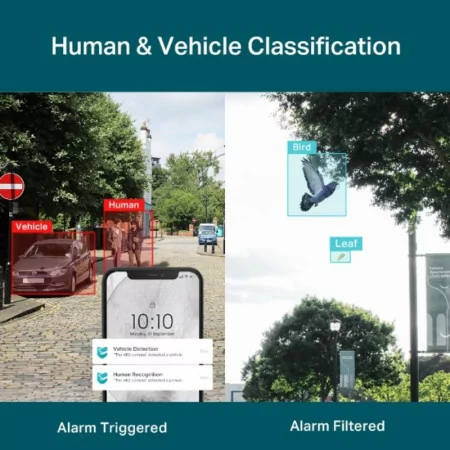

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Association: Memory Card Video Recording, Message Notification, Sound Warning

Association Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL

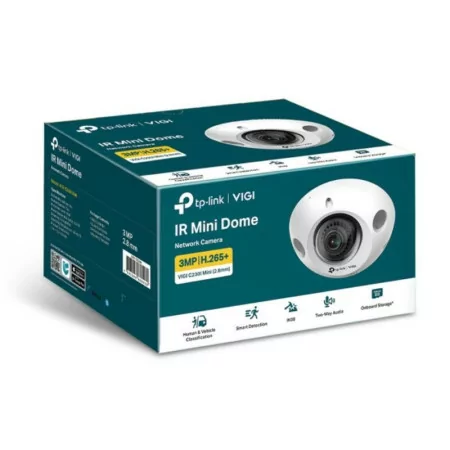

Package Contents: VIGI Network Camera

Quick Start Guide

Mounting Accessories

Assembly Model

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Lower (Non-Condensing)

Operating Humidity: 95% or Lower (Non-Condensing)

Dimensions (H x W x D): 114 × 114 × 58 mm

Material: Plastic

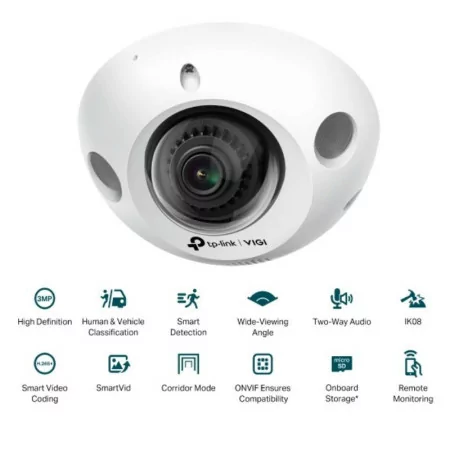

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening

Net Weight: 0.23 kg

Gross Weight: 0.41 kg

Power Consumption: 12V DC: Max. 7.5W

PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

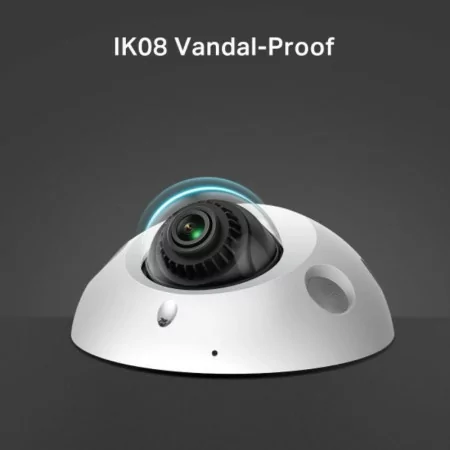

Vandal Resistant: IK08

Protection: IK08

Product Dimensions (L x W x H): 114 × 58 × 114 mm

Certifications: CE/VCCI/BSMI/KC/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions: Main Stream:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 704x576, 640x480, 352x288, 320x240

Maximum Resolution: 3 MP (2304 × 1296)

Video Transmission: 3 Main Streams

3 Secondary Flows

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Auto/Scheduled

SMART FEATURES

Intelligent Event: Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entry Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Access)

Association Method: Activation Notification: ONVIF, HTTPS

Region of Interest: 1 Region

Brand

TP-Link

Reference

VIGI C230I Mini 2.8mm
