smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

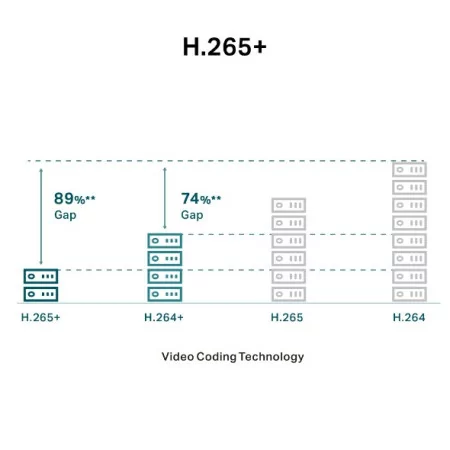

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

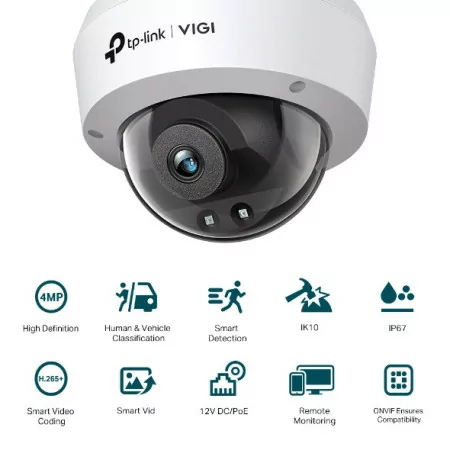

4MP super high definition

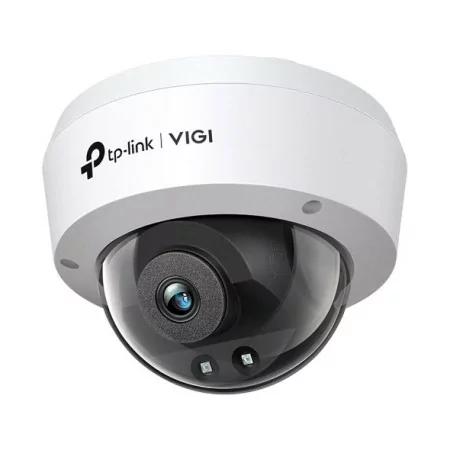

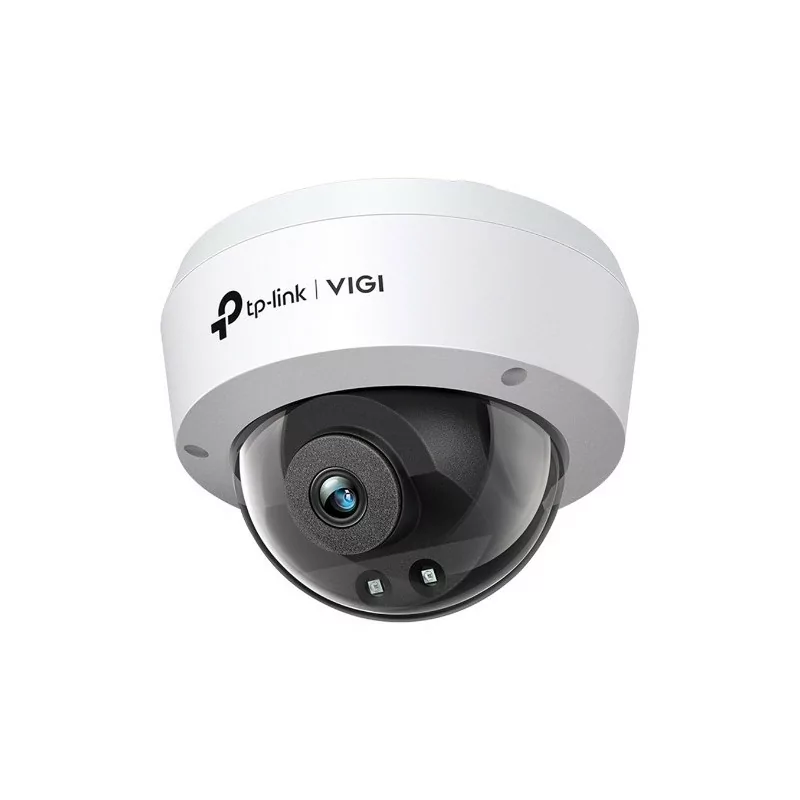

The VIGI C430Ii camera comes with 4MP, more than enough to capture some of the finest details.

Specifications:

Chamber

Image Sensor 1/3" Progressive CMOS Sensor

Shutter Speed From 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination Color: 0.1 Lux; 0Lux with IR

Day/Night Mechanism IR Cut Filter

Unified/Scheduled/Automatic Day/Night switching

2.8mm/4mm lens

Aperture 2.8mm: F2.2

4mm: F2.2

M12 Lens Mount

Viewing Angle 2.8mm: 88.8°/48.9°/106.5°(H/V/D)

4mm: 75.1°/41.5°/88.7°(H/V/D)

IR Working Distance 30m

3D DNR Digital Noise Reduction

WDR DWDR

IP67 Weatherproof Rating

LENSES

Fixed Focal Lens Type

Focal Length 2.8mm/4mm

Aperture 2.8mm: F2.2

4mm: F2.2

FOV 2.8 mm:

Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

4 mm:

Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°

M12 Lens Mount

Distance DORI 2.8 mm:

Detection: 60m

Note: 25m

Recognition: 12m

Identification: 6 m

4 mm:

Detection: 80m

Note: 33m

Recognition: 16m

Identification: 8 m

VIDEO

Maximum Resolution 2560 × 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate supports up to 20 fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate supports up to 20 fps.

Bit Rate Control CBR, VBR

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Type of H.264 Main Profile/High Profile

H.264+ Main Stream Supported

Type of H.265 Main Profile

H.265+ Main Stream Supported

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED N/A

Auto/Scheduled/Always On/Always Off Illuminator On/Off Control

ANGLE ADJUSTMENT (MANUAL)

Pan Range: 0° to 355°

Tilt: 0° to 75°


Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,

White Balance, Infrared Light Overexposure Prevention, Adjustable by Client Software, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range DWDR

SNR ≥ 52 dB

Image Parameter Switching Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setup Yes

AUDIO

Audio Communication N/A

Audio Input N/A

Audio Output N/A

Audio Compression N/A

Audio Sampling Rate N/A

Environmental Noise Filtering N/A

N/A Audio Bitrate

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous Live View 3 Main Streams & 3 Sub-Streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Google Chrome® Web Browser 57 and up

Firefox® 52 and higher

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 RJ45 10/100M Auto-Adaptive Ethernet Port

Alarm N/A

Reset Button N/A

Power DC Power Port

Button -

Video Out -

Internal Storage N/A

Built-in Microphone N/A

Built-in Speaker N/A

Audio N/A

ALARM AND EVENT MANAGEMENT

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Video Manipulation Detection, Exception (Unauthorized Access)

Alarm Connection Message Sending

Connection Method N/A

Output Notification Message Sending

GENERAL

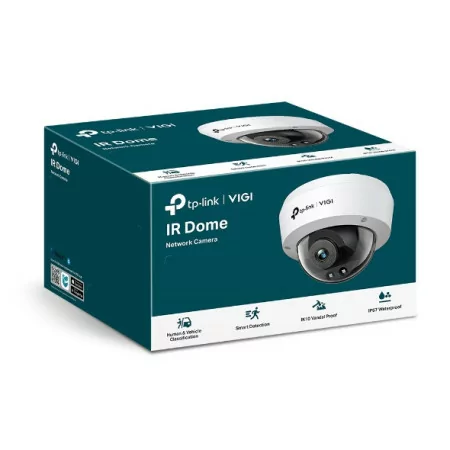

Package Contents VIGI Network Camera

Quick Start Guide

Waterproof Cable Accessories

Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Less (Non-Condensation)

Operating Humidity 95% or Less (Non-Condensation)

Dimensions (H x W x D) 115 × 115 × 86 mm

Plastic Material

General Features Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Listener

Net Weight 0.27 Kg

Gross Weight 0.45 Kg

Power Consumption 12V DC: Max. 5W

PoE: Class 0

Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Connector

PoE (802.3af/at, class 0)

Vandal Resistant IK10

IP67 protection, IK10

Product Dimensions (L x W x H) 115 × 86 × 115 mm

CE/BSMI/VCCI/ONVIF certifications

VIDEO/IMAGE

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions Main Stream:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution: 640x480, 352x288, 320x240

Maximum Resolution 4MP (2560×1440)

Main Stream Video Transmission

Subflow

Picture Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switching Day/Night/Automatic/Scheduled

SMART FEATURES

Intelligent Event Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Camera Manipulation Detection, Exception (Unauthorized Access)

Activation Notification Connection Method: ONVIF, HTTPS

Region of Interest 1 Region
