smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

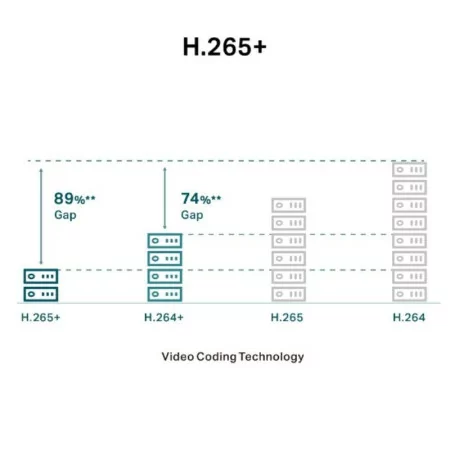

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

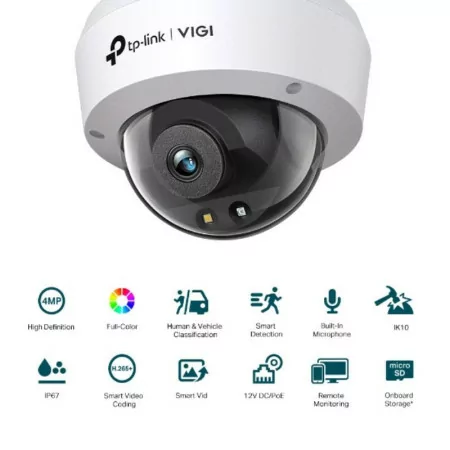

4MP super high definition

The VIGI C430Ii camera comes with 4MP, more than enough to capture some of the finest details.

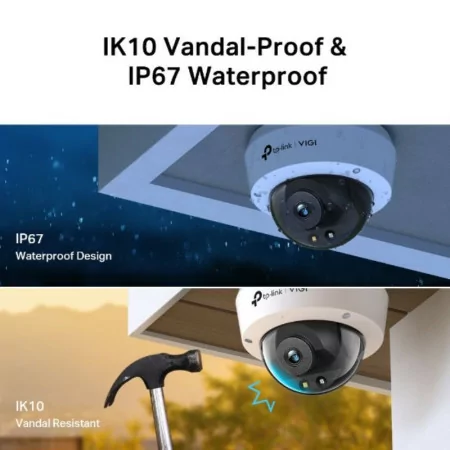

IK10 vandal-proof and IP67 waterproof

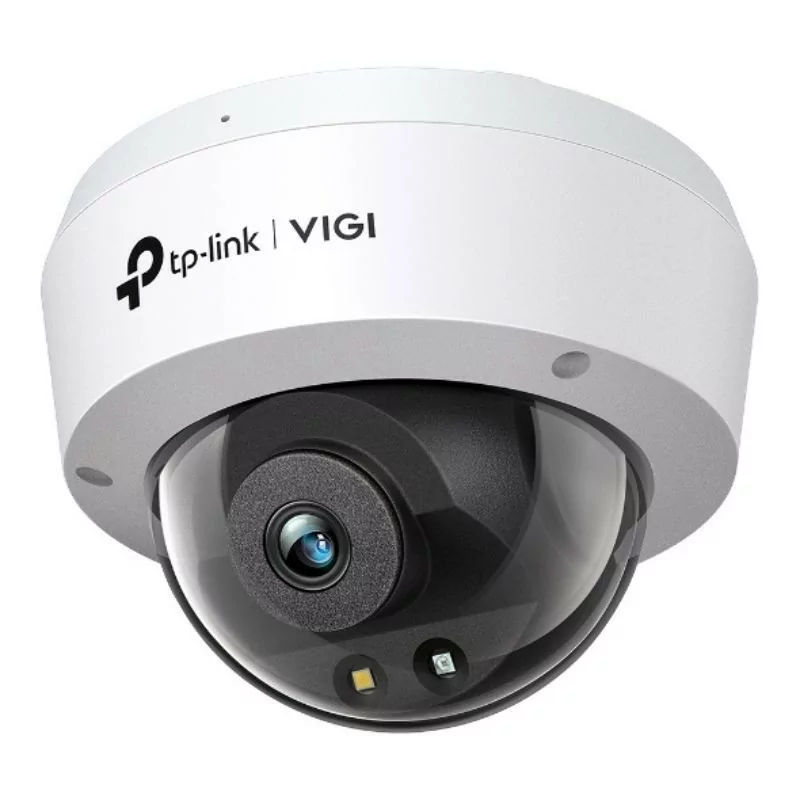

With its rugged, vandal-resistant housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

CAMERA

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 lux; 0 lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Unified/Scheduled/Automatic

Lens: 2.8mm/ 4mm

Aperture: 2.8mm: F1.6, 4mm: F1.6

Lens Mount: M12

Viewing Angle: 2.8mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

4 mm:

Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP67

LENSES

Lens Type: Fixed Focus Lens

Focal Length: 2.8mm/4mm

Aperture: 2.8mm: F1.6, 4mm: F1.6

FOV:

2.8 mm:

Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

4 mm:

Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

Lens Mount: M12

DORI distance:

2.8 mm:

Detection: 64 m

Note: 27m

Recognition: 13 m

Identification: 6 m

4 mm:

Detection: 80m

Note: 33m

Recognition: 16m

Identification: 8 m

VIDEO

Max Resolution: 2560×1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported on Main Stream

H.265 Type: Main Profile

H.265+: Supported on Main Stream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 1, Range: 30m, Wavelength: 850nm

White LED: Quantity: 1, Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Permanent On/Permanent Off

ANGLE ADJUSTMENT (MANUAL)

Reach:

Pan: 0° to 355°

Tilt: 0° to 75°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,

White Balance, Infrared Light Overexposure Prevention, Client Software Adjustable HLC, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO

Audio Communication: N/A

Audio Input: Yes

Audio Output: N/A

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI Application, VIGI Security Manager, VIGI NVR, Web Interface

Web browsers: Google Chrome® 57 and higher, Firefox® 52 and higher, Safari® 11 and higher, Microsoft® Edge 91 and higher

cloud: yes

ONVIF: Yes

INTERFACE

Network Interface: 1 Self-adaptive 10/100M RJ45 Ethernet Port

Alarm: N/A

Reset Button: N/A

Power: DC Power Port

Button: -

Video Output:-

Internal Storage: Built-in Memory Card Slot, MicroSD Card Support up to 256GB

Built-in Microphone: Yes

Integrated Speaker: N/A

Audio: N/A

ALARM AND EVENT MANAGEMENT

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Alteration Detection, Exception (Illegal Login)

Alarm Linking: White Light Signaling, Message Push

Binding Method: N/A

Departure Notification: Message Sending

GENERAL

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or less (Non-Condensation)

Operating Humidity: 95% or less (Non-Condensation)

Dimensions (H x W x D): 115 × 115 × 86 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Listener

Net Weight: 0.28 Kg

Gross Weight: 0.46 Kg

Power Consumption: 12V DC: Max. 5.4W, PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Connector, PoE (802.3af/at, class 0)

Vandal Resistant: IK10

Protection: IP67, IK10

Product Dimensions (L x W x H): 115 × 86 × 115 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate and Resolutions:

Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Substream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Max Resolution: 4MP (2560×1440)

Video Streaming: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switching: Day/Night/Automatic/Scheduled

SMART FEATURES

Smart Event: Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Login)

Binding Method: Trigger Notification: ONVIF, HTTPS

Region of Interest: 1 Region
