Specifications:

CHAMBER

Image Sensor: 1/3 inch Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.01 Lux; 0Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Automatic

LENS

Lens Type: Fixed Focal Lens

Focal Length: 2.8mm/4mm

Aperture: 2.8mm: F2.2

4mm: F2.0

FOV: 2.8 mm:

Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°

4 mm:

Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°

Lens Mount: M12

DORI distance: 2.8 mm:

Detection: 45 m

Note: 19m

Recognition: 9m

Identification: 5 m

4 mm:

Detection: 60 m

Note: 25m

Recognition: 12m

Identification: 6 m

VIDEO

Max Resolution: 1920×1080

Main Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Sub-Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolutions: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control: CBR, VBR

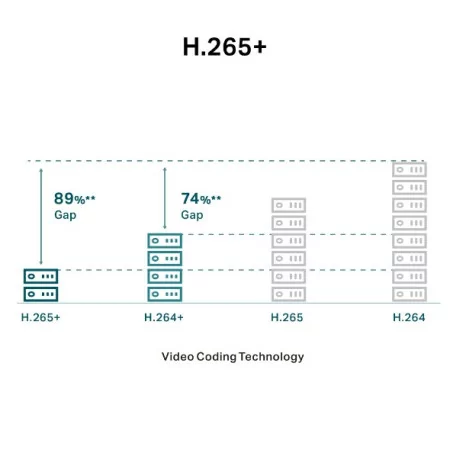

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 2

Range: 30m

Wavelength: 850nm

White LED: Not Applicable

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: 0° to 355°

Tilt: 0° to 75°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, HLC Adjustable by Client Software, Rotation (90°/270°)

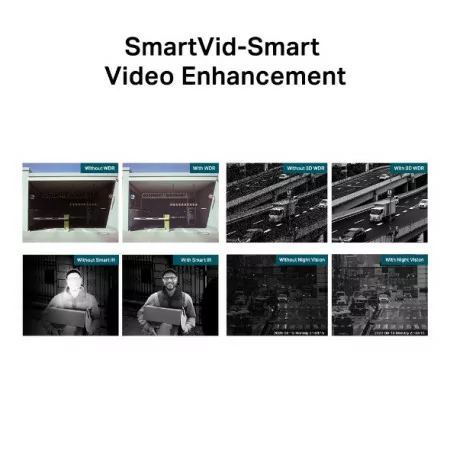

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR (Signal-to-Noise Ratio): ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI (Area of Interest): 1 Region

OSD Setting (On Screen Display): Yes

AUDIO

Audio Communication: Not Applicable

Audio Input: Not Applicable

Audio Output: Not Applicable

Audio Compression: Not Applicable

Audio Sampling Rate: Not Applicable

Environmental Noise Filter: Not Applicable

Audio Bitrate: Not Applicable

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub Streams

Client: VIGI Application, VIGI Security Manager, Web User Interface

Web Browsers: Not Applicable

cloud: yes

ONVIF: Yes

INTERFACE

Network Interface: 1 Autonegotiation RJ45 10/100M Ethernet Port

Alarm: Not Applicable

Reset Button: Not Applicable

Food: Not Applicable

Built-in Storage: Not Applicable

Built-in Microphone: Not Applicable

Built-in Speaker: Not Applicable

Audio: Not Applicable

ALARM AND EVENT MANAGEMENT

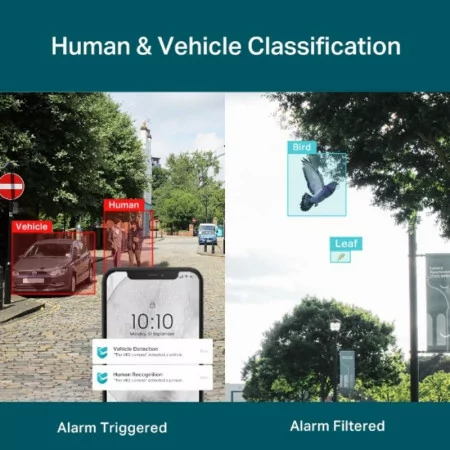

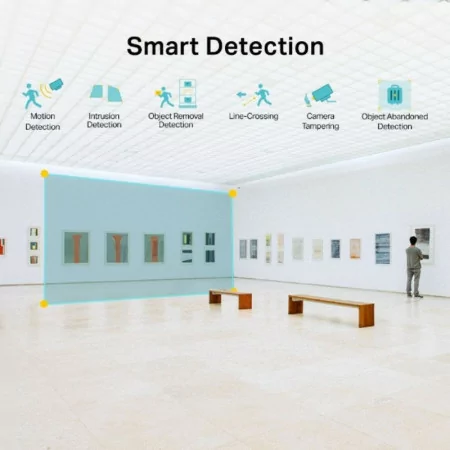

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Access)

Alarm Association: Message Notification

Association Method: Not Applicable

Outgoing Notification: Message Notification

GENERAL

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Lower (Non-Condensing)

Operating Humidity: 95% or Lower (Non-Condensing)

Material: Plastic

Net Weight: 0.26 Kg

Gross Weight: 0.43 Kg

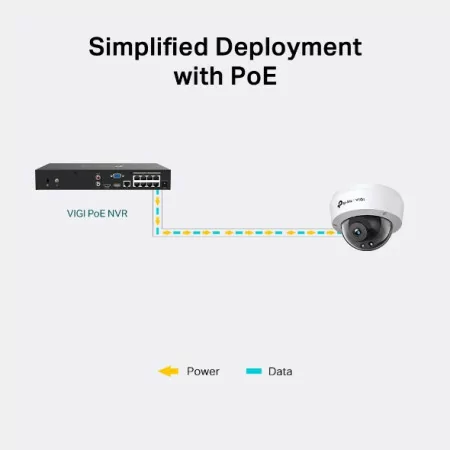

Power Supply: PoE: 802.3af/at, Class 0, Max. 5.5 W

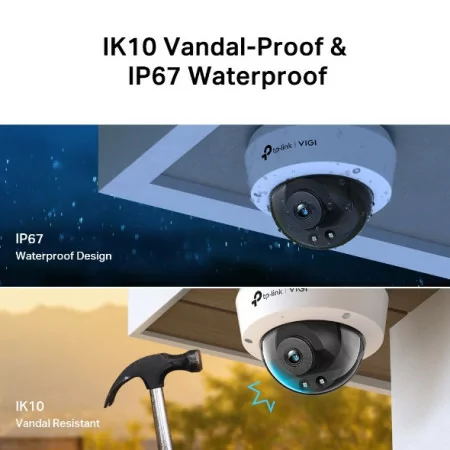

Protection: IP67, IK10

Product Dimensions (L x W x H): 115× 86× 115 mm

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Brand

TP-Link

Reference

VIGI C220I 4mm
