Specifications:

CHAMBER

Image Sensor: 1/2.8” Progressive Scan CMOS Sensor

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night switch: Unified/Scheduled/Auto

Lens: 2.8mm/4mm

Aperture: 2.8mm: F1.6

4mm: F1.6

Lens Mount: M12

Viewing Angle: 2.8mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weather Resistance Rating: IP67

LENS

Type: Fixed Focus Lens

Focal Length: 2.8mm/4mm

Aperture: 2.8mm: F1.6

4mm: F1.6

FOV: 2.8mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Lens Mount: M12

DORI distance: 2.8 mm: Detect: 52 m, Observe: 22 m, Recognize: 10 m, Identify: 5 m

4 mm: Detect: 70 m, Observe: 29 m, Acknowledge: 14 m, Identify: 7 m

VIDEO

Max Resolution: 2304×1296

Main Stream (Frame Rate):

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream (Frame Rate):

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 704x576, 640x480, 352x288, 320x240

Bit Rate Control: CBR, VBR

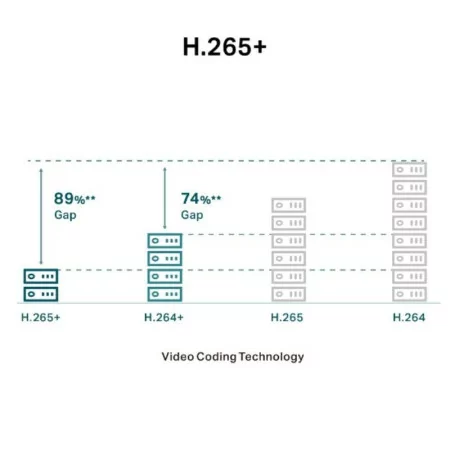

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 1

Range: 30m

Wavelength: 850nm

White LED: Quantity: 1

Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Pan: 0° to 355°, Tilt: 0° to 75°


Image Settings: Reflection, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, Client Software Adjustable HLC, Rotation (90°/270°)

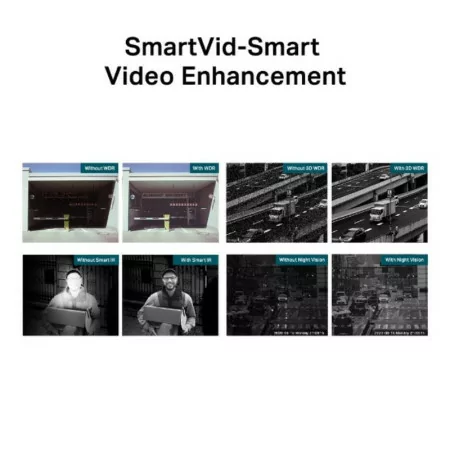

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO

Audio Communication: N/A

Audio Input: Yes

Audio Output: N/A

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Ambient Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACES

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

Alarm: N/A

Replacement Button: N/A

Power: DC Power Port

Button: -

Video Output:-

Built-in Storage:-

Built-in Microphone: Yes

Built-in Speaker: N/A

Audio: N/A

ALARM AND EVENT MANAGEMENT

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Illegal Login)

Alarm Link: White Light Flashing, Message Push

Connection Method: N/A

Departure Notification: Message Sending

GENERAL

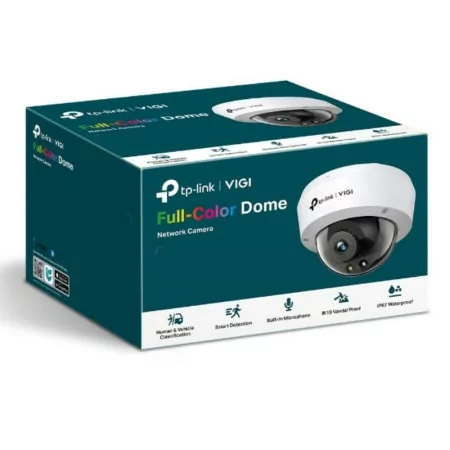

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Lower (Non-Condensing)

Operating Humidity: 95% or Lower (Non-Condensing)

Dimensions (H x W x D): 115 × 115 × 86 mm

Material: Plastic

General Features: Two Streams, Reflection, Privacy Masks, Password Reset via Email, HTTP Listener

Net Weight: VIGI C230 (2.8 mm): 0.2 Kg, VIGI C230 (4 mm): 0.28 Kg

Gross Weight: VIGI C230 (2.8 mm): 0.35 Kg, VIGI C230 (4 mm): 0.47 Kg

Power Consumption: 12V DC: Max. 4.7W, PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)

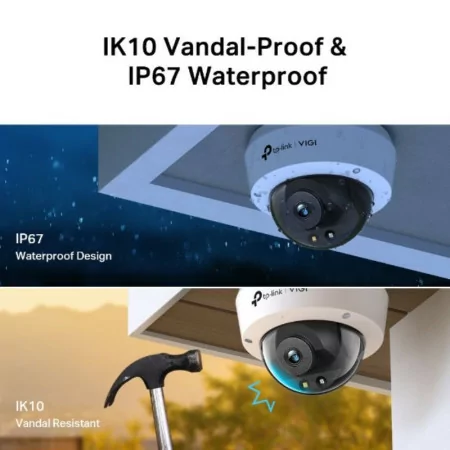

Vandal Resistant: IK10

Protection: IP67, IK10

Product Dimensions (L x W x H): 115 × 86 × 115 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

Frame Rate and Resolutions: Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, Sub Stream: Frame Rate: 1fps, 5fps, 10fps , 15fps, 20fps, 25fps, 30fps, Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution: 3MP (2304×1296)

Video Streaming: Main Stream, Sub Stream

Image Settings: Reflection, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Auto/Scheduled

SMART FEATURES

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Camera Manipulation Detection, Exception (Illegal Login)

Binding Method: Trigger Notification: ONVIF, HTTPS

Region of Interest: 1 Region
