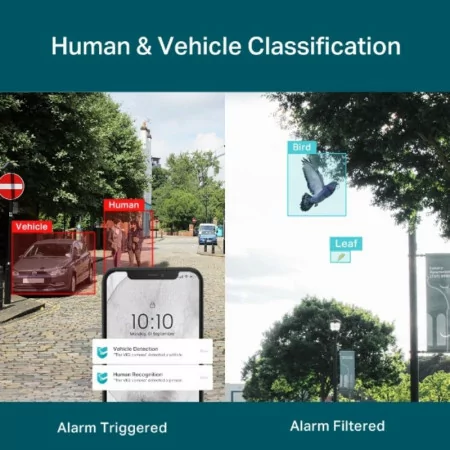

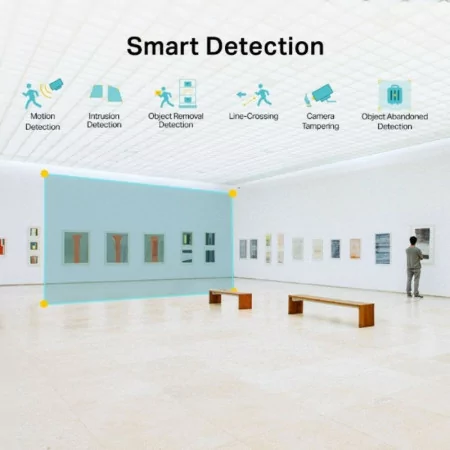

smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

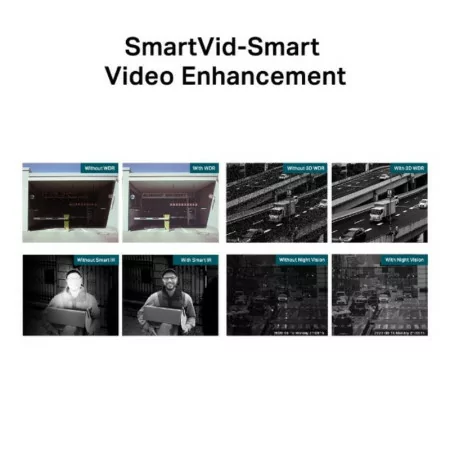

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

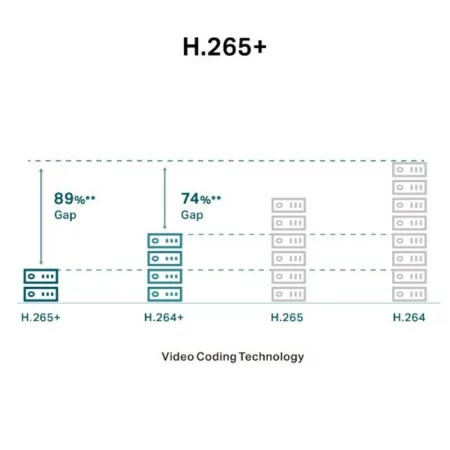

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

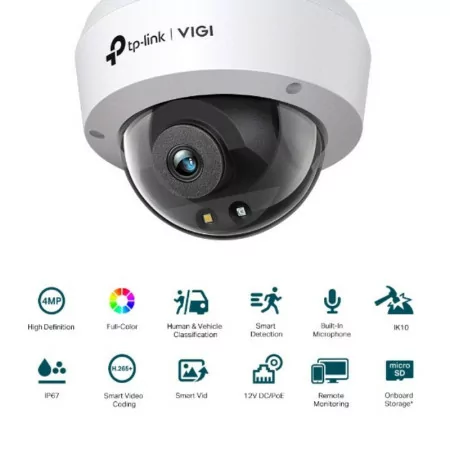

4MP super high definition

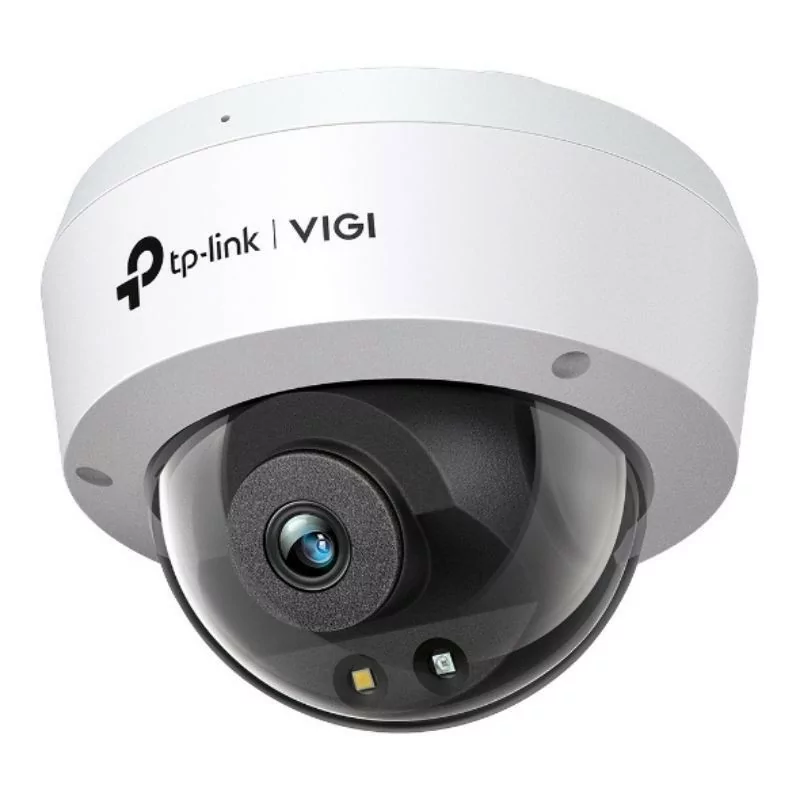

The VIGI C430Ii camera comes with 4MP, more than enough to capture some of the finest details.

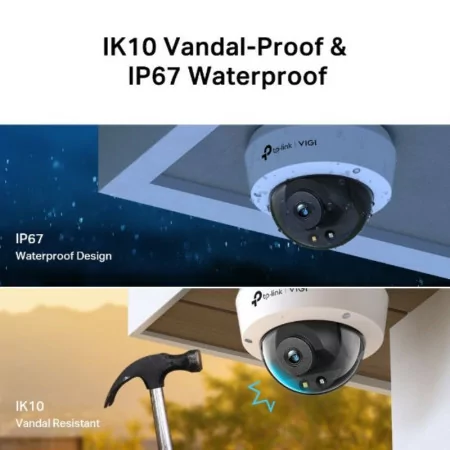

IK10 vandal-proof and IP67 waterproof

With its rugged, vandal-resistant housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Minimum lighting color: 0.1 Lux; 0 Lux with IV

Day/night mechanism infrared cut filter

Lens 2.8mm/ 4mm

Aperture 2.8mm: F2.2

4mm: F2.2

M12 lens mount

Viewing angle 2.8mm: 88.8°/48.9°/106.5° (H/V/D)

4 mm: 75.1°/41.5°/88.7° (A/V/D)

Working Distance IR 30m

IP67 weatherproof rating

3D DNR Digital Noise Reduction

WDR DWDR

NETWORK

Security password protection, HTTPS encryption, IP address filtering, Digest authentication

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

Built-in Storage Built-in memory card slot, MicroSD card support, up to 256GB

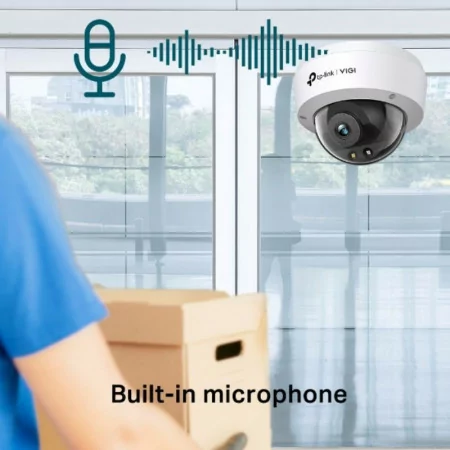

Built-in Microphone Yes

GENERAL

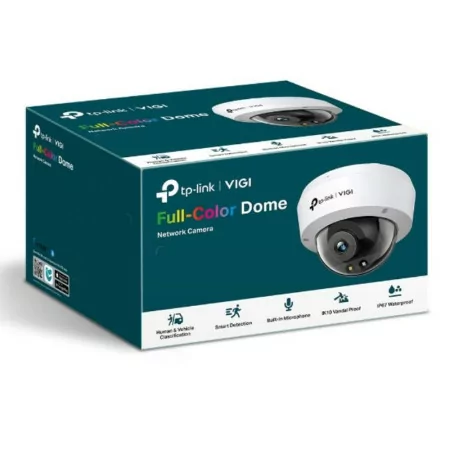

Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Connections, Mounting Accessories

Dimensions (HXLXP) 115 × 115 × 86 mm

Plastic Material

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

Power supply 12V DC ±5%, 5.5mm coaxial power plug

PoE (802.3af/at, class 0)

12V DC power consumption: Max 5W

PoE: Class 0

Anti-vandalism IK10

VIDEO/IMAGE

Video compression main stream: H.265+/H.265/H.264+/H.264

Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

max. 4MP resolution (2560×1440)

Video streaming main stream

sub transmission

Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client software adjustable white balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Time

Brand

TP-Link

Reference

VIGI C240 4mm
