smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

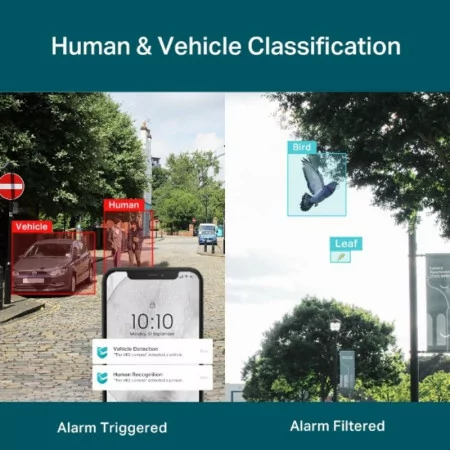

Classification of humans and vehicles

Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

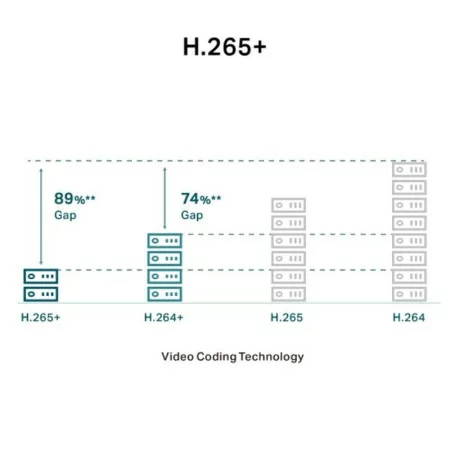

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

2MP super high definition

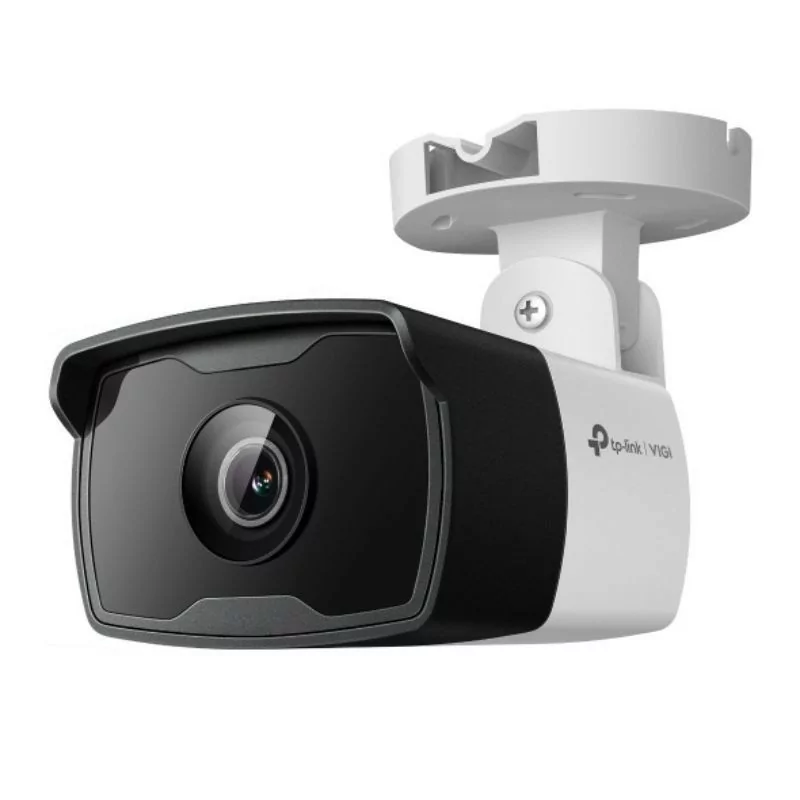

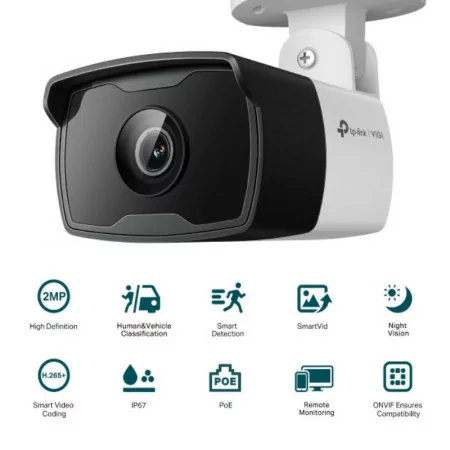

The VIGI Bullet C320I camera comes with 2MP, more than enough to capture some of the finest details.

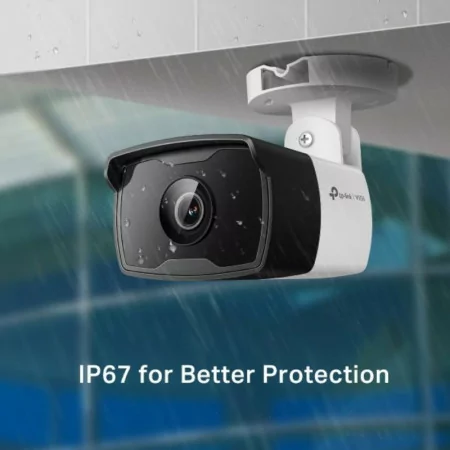

Waterproof

Reliable IP67 for stable outdoor performance.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Shutter speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum lighting color: 0.1 Lux; 0Lux with IR

Day/night mechanism infrared cut filter

Day/Night Change Day/Night/Auto/Time-Change

Lens 2.8mm/ 4mm/ 6mm

Aperture 2.8mm: F2.2 / 4mm: F2.2 / 6mm: F2.0

M12 lens mount

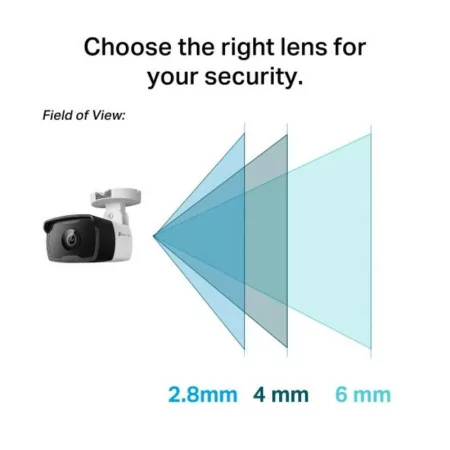

Angle of view 2.8mm, diagonal FOV: 106.5° / 4mm, diagonal FOV: 87.4° / 6mm, diagonal FOV: 56°

Working Distance IR 30m

IP67 weatherproof rating

3D DNR Digital Noise Reduction

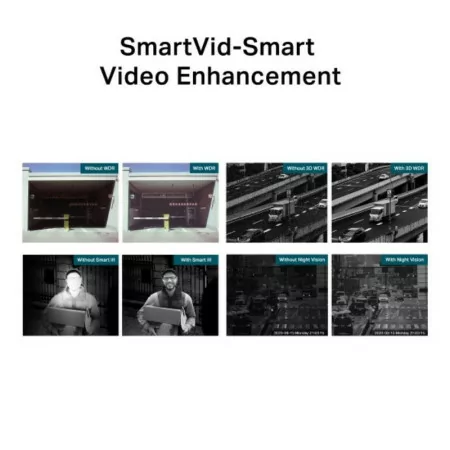

WDR DWDR

VIDEO

Max. Resolution 1920 × 1080

Resolution: 1920x1080, 1280x720.

Bit rate control CBR, VBR

Video compression main stream: H.265+/H.265/H.264+/H.264

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Substream: 64 Kbps to 512 Kbps

LIGHTING

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

Illuminator On/Off Control Auto/Programmed/Always on/Always off


Image settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client software adjustable white balance, Rotation (90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range DWDR

SNR ≥ 52 dB

Image Parameters Exchange Yes

Privacy mask Up to 4 masks

NETWORK

Security password protection, HTTPS encryption, IP address filtering, Digest authentication

NAS network storage (NFS, SMB/CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS.

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

DC Power Port / rj45 power supply

ALARM AND EVENT MANAGEMENT

Intelligent people and vehicle classification, area intrusion detection, cross line detection, people detection, vehicle detection, region entry detection, region exit detection, abandoned object detection, object removal detection

Basic event motion detection, video tampering detection, exception (illegal login)

Alarm link message push

Outgoing notification message push
