smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

Smart video enhancement

VIGI's professional technologies process videos to greatly improve their quality, which is vital for your monitoring, including Smart IR, WDR, 3D DNR and Night Vision.

H.265+

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

4MP super high definition

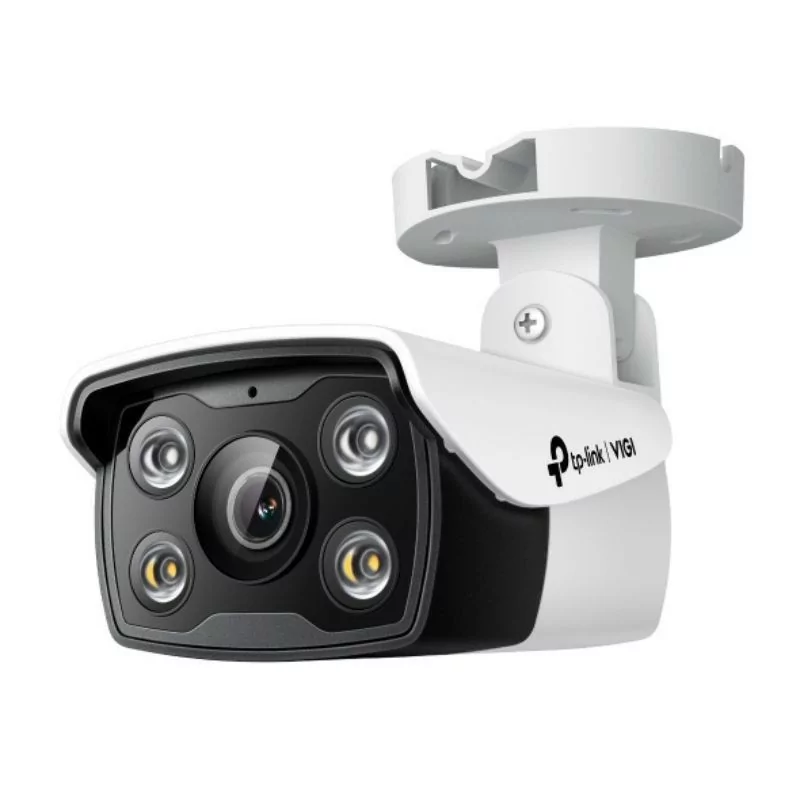

The VIGI Bullet C340 camera comes with 4MP, more than enough to capture some of the finest details.

Classification of humans and vehicles

Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

CAMERA

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: 0 lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Unified/Scheduled/Automatic

Lens: Fixed focus lens (2.8mm / 4mm / 6mm)

Aperture: 2.8mm: F1.6, 4mm: F1.6, 6mm: F1.6

Lens Mount: M12

Angle of View: (2.8 mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

(4 mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

(6 mm) Horizontal FOV: 50°, Vertical FOV: 27°, Diagonal FOV: 59°

IR Working Distance: 30m

Lighting Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP66

LENSES

Lens Type: Fixed Focus Lens

Focal Length: 2.8mm / 4mm / 6mm

Aperture: 2.8mm: F1.6, 4mm: F1.6, 6mm: F1.6

FOV:

2.8mm:

Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°

4mm:

Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

6mm:

Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

Lens Mount: M12

DORI distance:

2.8mm

Detection: 64 m

Note: 27m

Recognition: 13 m

Identification: 6 m

4mm

Detection: 80m

Note: 33m

Recognition: 16m

Identification: 8 m

6mm

Detection: 128m

Note: 53m

Recognition: 26m

Identification: 13 m

VIDEO

Maximum Resolution: 2560 X 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolutions:

640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported on Main Stream

H.265 Type: Main Profile

H.265+: Supported on Main Stream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm

White LED: Quantity: 2, Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Permanent On/Permanent Off

ANGLE ADJUSTMENT (MANUAL)

Reach:

Pan: -90° to 90°

Tilt: -90° to 90°


Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, Client Software Adjustable White Balance, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Picture Parameter Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO

Audio Communication: Two-way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI Application, VIGI Security Manager, Web User Interface

Web browsers: Google Chrome® 57 and higher, Firefox® 52 and higher, Safari® 11 and higher, Microsoft® Edge 91 and higher

cloud: yes

Brand

TP-Link

Reference

VIGI C340 4mm
