smart detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've defined, or obstructs your camera.

Waterproof

Reliable IP66 for stable outdoor performance.

remote monitoring

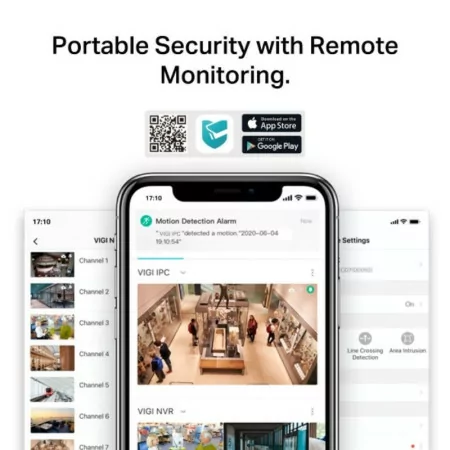

Manage your security in the palm of your hand with the VIGI app.

4MP ultra-high definition

The camera comes with 4MP, more than enough to capture some of the subtlest details.

Full-Color 24h

Get 24-hour color detail, even in total darkness, via the high-sensitivity sensor and included floodlight LEDs.

SPECIFICATIONS:

CAMERA

1/3" progressive scan CMOS image sensor

Minimum illumination 0 lux with IR/white light

Day/night mechanism infrared cut filter

Lens Fixed focal lens (4 mm)

Aperture 4mm: F1.6

M12 lens mount

Angle of View (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Digital Zoom Yes

Working Distance IR 30m

Illumination Distance 30 m

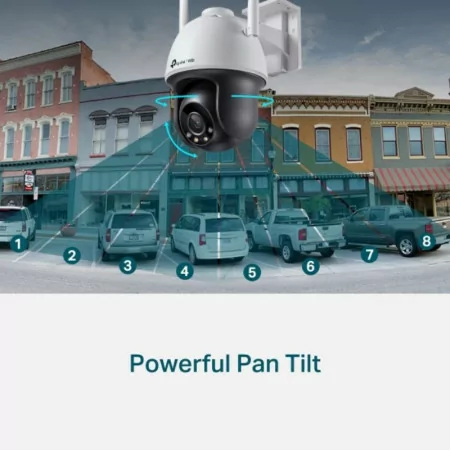

Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120°

IP66 weatherproof rating

3D DNR Digital Noise Reduction

WDR DWDR

LIGHTING

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED Quantity: 2

Range: 30m

NETWORK

Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Frequency 2.4 GHz

NAS network storage (NFS, SMB/CIFS)

ONVIF API

Simultaneous live view of 3 main streams and 3 sub streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 RJ45 10/100M self-adaptive Ethernet port

Built-in microphone for audio input

Built-in audio output speaker

Reset button button

Micro SD card slot

Integrated Storage Memory card slot, MicroSD card support, up to 256 GB

Built-in Microphone Yes

Built-in Speaker Yes

General

Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Connections, Mounting Accessories (Screws, Drywall Anchors, Hex Wrench)

Antennas: Quantity: 2, Type: 2.4GHz Soldered Dipole Omnidirectional Antenna Gain: 2.0dBi

Dimensions (HXLXP) 120 × 172 × 198 mm

Plastic Material

Weight 195g

General Features Two streams, mirror, privacy masks, email password reset, HTTP listen

Power Requirements 12V DC ±5%, 5.5mm coaxial power plug, PoE (802.3af/at, class 0)

Power supply 12V DC ±5%, 5.5mm coaxial power plug, PoE (802.3af/at, class 4)

Power Consumption 12V DC: Max 14W, PoE: Class 4

WIRELESS

WiFi Channels 1-13

Frequency 2.4 GHz

Wireless transmission power: high

Radio Bandwidth: Auto, 20M: Yes, 40M: Yes

Wireless rate 11Mbps(802.11b), 54Mbps(802.11g), 150/300Mbps(802.11n)

PWPA/WPA2-PSK Wireless Security

AP wireless mode, AP client

VIDEO/IMAGE

H.265+/H.265/H.264+//H.264 video compression

Frame rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Image settings Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance adjustable by client software

BLC/3D DNR image enhancement/Avoid overexposure to infrared light

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Substream: 64 Kbps to 512 Kbps

Day/Night Change Day/Night/Auto/Time-Change

Privacy mask Up to 4 masks

SMART FEATURE SET

Intelligent event area intrusion detection, line crossing detection, human detection

Basic Event Motion Detection, Camera Tampering Detection, Exception (illegal login)

Binding method trigger notification: ONVIF, HTTPS

Region of Interest 1 Region

Alarm call memory card video recording, message push, sound warning, white light flashing

Outgoing notification message push

Brand

TP-Link

Reference

VIGI C540-W 4mm

Stock Online

Low stock

Stock Store

Available soon
