Specifications:

CHAMBER

Image Sensor: 1/2.8” Progressive CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Automatic

Lens: 2.8mm/4mm

Aperture: 2.8mm: F1.6 / 4mm: F1.6

Lens Mount: M12

Viewing Angle: 2.8mm: 107.5°/57.2°/128.7° (H/V/D) / 4mm: 89.1°/45.1°/106.9° (H /V/D)

IR Distance: 30m

Digital Noise Reduction: 3D DNR

WDR: DWDR

LENSES

Type: Fixed Focal Lens

Focal Length: 2.8/4mm

Aperture: 2.8mm: F1.6 / 4mm: F1.6

FOV: 2.8 mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Lens Mount: M12

DORI distance: 2.8 mm

Detection: 52 m

Note: 22m

Recognition: 10m

Identification: 5 m

4 mm

Detection: 70 m

Note: 29m

Recognition: 14 m

Identification: 7 m

VIDEO

Max Resolution: 2304×1296

Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolutions: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolutions: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control: CBR, VBR

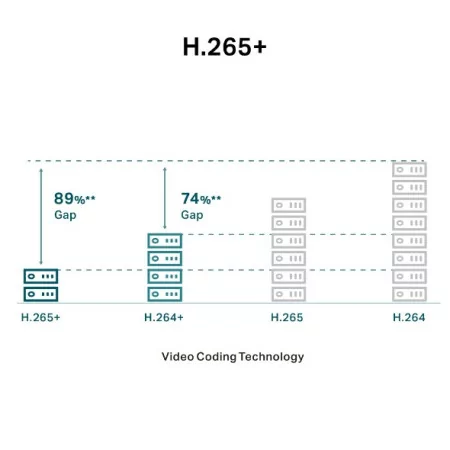

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported in Mainstream

H.265 Type: Main Profile

H.265+: Supported in Mainstream

Video Bitrate: Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LEDs: Quantity: 2

Range: 30m

Wavelength: 850nm

White LEDs: Quantity: 2

Range: 30m

Illuminator Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL)

Range: Rotation: 0° to 360°

Tilt: 0° to 85°

Swivel: 0° to 360°


Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, HLC Adjustable by Client Software, Rotation (90°/270°)

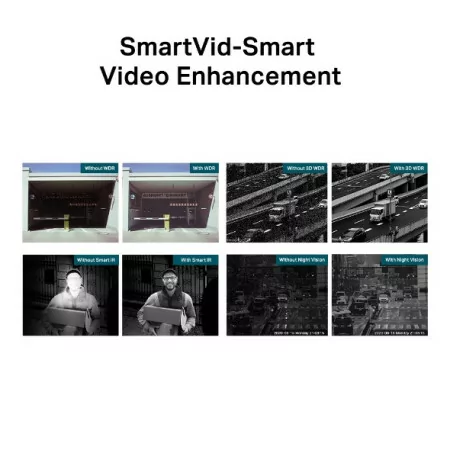

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: WDR

SNR: ≥ 52 dB

Picture Parameter Switching: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

AUDIO

Audio Communication: N/A

Audio Input: Yes

Audio Output: N/A

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Ambient Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

API: ONVIF

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client: VIGI Application, VIGI Security Manager, VIGI NVR, Web

Web Browsers: Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE

Network Interface: 1 Ethernet Port RJ45 10/100M Auto-Adaptive

Alarm: N/A

Reset Button: N/A

Power: DC Power Port

Button: -

Video Output:-

Internal Storage: N/A

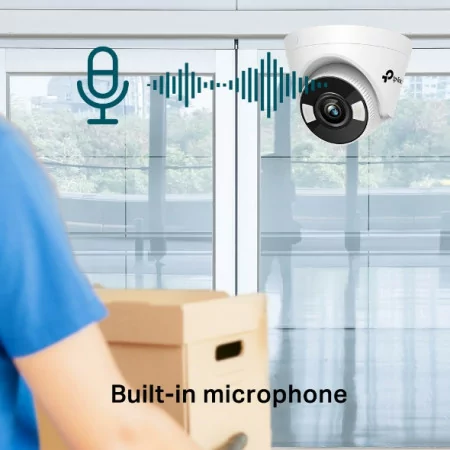

Built-in Microphone: Yes

Built-in Speaker: N/A

Audio: N/A

ALARM AND EVENT MANAGEMENT

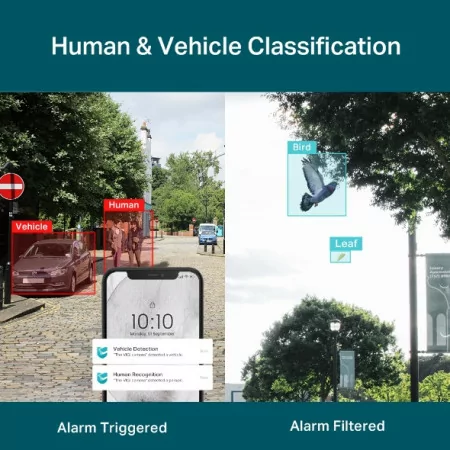

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Violence Detection, Exception (Illegal Access)

Alarm Link: White Light Flash, Message Push

Connection Method: N/A

Departure Notification: Message Sending

GENERAL

Package Contents: VIGI Network Camera

Quick Start Guide

Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Less (Non-Condensation)

Operating Humidity: 95% or Less (Non-Condensation)

Dimensions (H x W x D): 123 × 123 × 83 mm

Material: Plastic

General Features: Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening

Net Weight: 0.21 Kg

Gross Weight: 0.36 Kg

Power Consumption: 12V DC: Max 4.2W

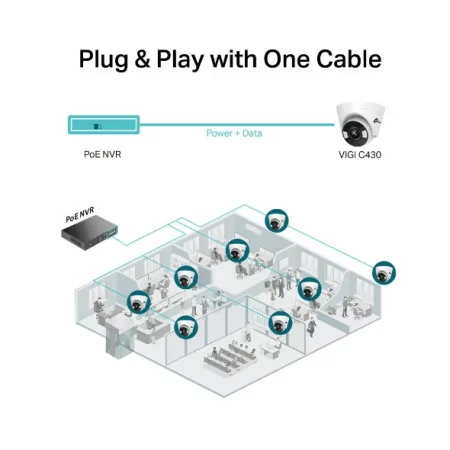

PoE: Class 0

Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Protection: N/A

Product Dimensions (L x W x H): 123× 83× 123 mm

Certifications: CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions: Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution: 3MP (2304×1296)

Video Stream: Main Stream, Sub-Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Video Bitrate: 64 Kbps to 4 Mbps

Day/Night Switch: Day/Night/Automatic/Scheduled

SMART FEATURES

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Access)

Binding Method: Activation Notification: ONVIF, HTTPS

Region of Interest: 1 Region

Brand

TP-Link

Reference

VIGI C430 2.8mm
