Specifications:

CHAMBER

1/2.8" Progressive Scan CMOS Image Sensor

Shutter Speed From 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism IR Cut Filter

Unified/Scheduled/Automatic Day/Night Switch

2.8mm/4mm lens

Aperture 2.8mm: F1.6

4mm: F1.6

M12 Lens Mount

Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)

4mm: 89.1°/45.1°/106.9°(H/V/D)

IR Working Distance 30m

3D DNR Digital Noise Reduction

WDR DWDR

LENS

Fixed Focal Lens Type

Focal Length 2.8/4mm

Aperture 2.8mm: F1.6

4mm: F1.6

FOV 2.8mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

M12 Lens Mount

DORI distance 2.8 mm

Detect: 52 m (170 ft)

Note: 22 m (71 ft)

Recognize: 10 m (34 ft)

Identify: 5 m (17 ft)

4mm

Detect: 70 m (230 ft)

Note: 29 m (96 ft)

Recognize: 14 m (46 ft)

Identify: 7 m (23 ft)

VIDEO

Max Resolution 2304 × 1296

Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate supports a maximum of 20fps.

Bit Rate Control CBR, VBR

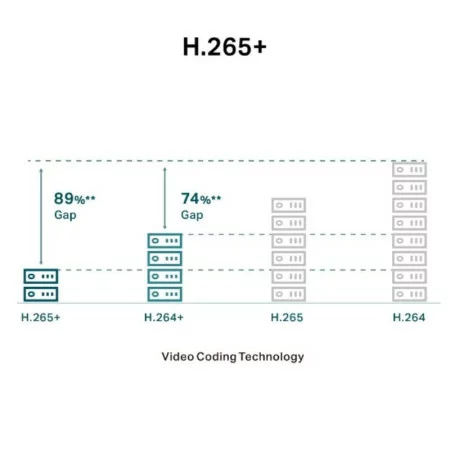

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Type H.264 Main Profile/High Profile

H.264+ Main Stream Supported

Type H.265 Main Profile

H.265+ Main Stream Supported

Main Stream Video Bitrate: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850 nm

White LED Quantity: 2

Range: 30m

Auto/Scheduled/Always On/Always Off Illuminator On/Off Control

ANGLE ADJUSTMENT (MANUAL)

Pan Range: 0° to 360°

Tilt: 0° to 85°

Rotation: 0° to 360°


Picture Settings Spec, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)

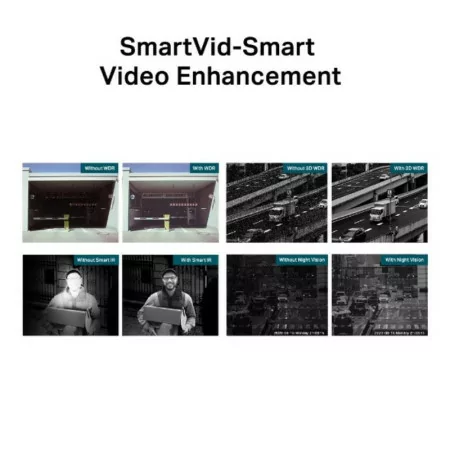

BLC/3D DNR/HLC/SmartIR Image Enhancement

Wide Dynamic Range WDR

SNR ≥ 52 dB

Image Parameters Exchange Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setup Yes

AUDIO

Audio Communication N/A

Audio Input Yes

Audio Output N/A

Audio Compression Yes

8KHz Audio Sampling Rate

Environmental Noise Filtering Yes

Audio Bitrate 64 Kbps (G.711 alaw)

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF API

Simultaneous Live View 3 Main Streams & 3 Sub Streams

VIGI App Client, VIGI Security Manager, VIGI NVR, Web

Google Chrome® Web Browsers 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

cloud sim

ONVIF Yes

INTERFACE

Network Interface 1 Ethernet Port RJ45 10/100M Auto-Adaptable

Alarm N/A

Reset Button N/A

Power DC Power Port

Button -

Video Out -

Internal Storage N/A

Built-in Microphone Yes

Built-in Speaker N/A

Audio N/A

ALARM AND EVENT MANAGEMENT

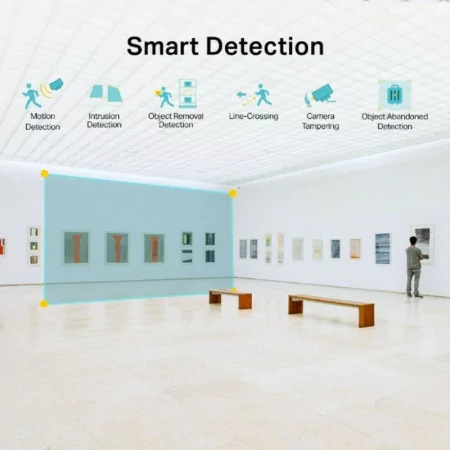

Intelligent Event Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entry Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Video Manipulation Detection, Exception (Illegal Login)

White Light Flashing Alarm Association, Message Notification

Association Method N/A

Outgoing Notification Message Notification

GENERAL

Package Contents VIGI Network Camera

Quick Start Guide

Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Less (Non-Condensation)

Operating Humidity 95% or Less (Non-Condensation)

Dimensions (H x W x D) 123 × 123 × 83 mm

Plastic Material

General Features Two Streams, Mirror, Privacy Masks, Email Password Reset, HTTP Listener

Net Weight 0.21 Kg

Gross Weight 0.36 Kg

Power Consumption 12V DC: Max. 4.2W

PoE: Class 0

Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug

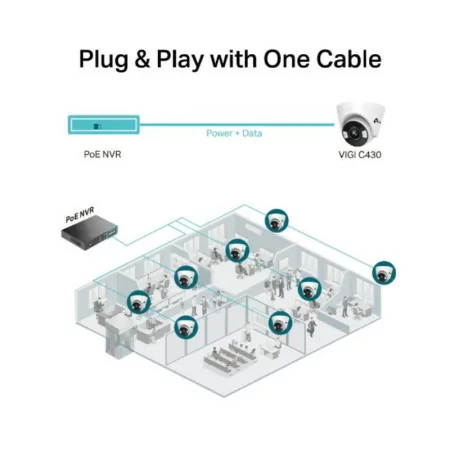

PoE (802.3af/at, class 0)

Protection N/A

Product Dimensions (L x W x H) 123 × 83 × 123 mm

CE/BSMI/VCCI/ONVIF certifications

VIDEO/IMAGE

Main Stream Video Compression: H.265+/H.265/H.264+/H.264

Sub-Flow: H.265/H.264

Frame Rate and Resolutions Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Flow:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Max Resolution 3MP (2304 × 1296)

Main Stream Video Transmission

Subflow

Picture Settings Spec, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

BLC/3D DNR/HLC/SmartIR Image Enhancement

Video Bitrate 64 Kbps to 4 Mbps

Day/Night Switch Day/Night/Auto/Scheduled

SMART FEATURES

Intelligent Event Human and Vehicle Classification, Intrusion Detection, Line Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event Motion Detection, Camera Manipulation Detection, Exception (Illegal Login)

Notification Activation Association Method: ONVIF, HTTPS

Region of Interest 1 Region
