Specifications:

CHAMBER:

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000s

Slow Shutter: Yes

Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism: IR Cut Filter

Day/Night Switching: Unified/Scheduled/Automatic

Lens: Fixed Focal Lens (4mm)

Aperture: 4mm - F1.6

Lens Interface: M12

Angle of View: Horizontal FOV (4 mm): 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

Digital Noise Reduction: 3D DNR

WDR: DWDR

Weatherproof Rating: IP66

LENS:

Type: Fixed Focal Lens

Focal Length: 4mm

Aperture: F1.6

FOV: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°

Lens Mount: M12

DORI distance: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m

VIDEO:

Maximum Resolution: 2560 X 1440

Main Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Secondary Stream: Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Resolution:

640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.

Bit Rate Control: CBR, VBR

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264

Secondary Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Main Stream Support

H.265 Type: Main Profile

H.265+: Main Stream Support

Video Bitrate: Main Stream: 256 Kbps to 3 Mbps

Secondary Stream: 64 Kbps to 512 Kbps

ILLUMINATOR:

IR LED: Quantity: 2

Range: 30m

Wavelength: 850 nm

White LED: Quantity: 2

Range: 30m

Illuminator On/Off Control: Automatic/Scheduled/Always On/Always Off

ANGLE ADJUSTMENT (MANUAL):

Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°

IMAGE:

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, Client Software Adjustable HLC, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR (Signal-to-Noise Ratio): ≥ 52 dB

Picture Parameter Switch: Yes

Privacy Mask: Up to 4 Masks

ROI (Regional Interest): 1 Region

OSD (Overlay Display) Setting: Yes

AUDIO:

Audio Communication: Two-way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environmental Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK:

Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication

Network Storage: NAS (NFS, SMB/ CIFS)

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Wireless rate: 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)

Frequency: 2.4GHz

Wireless Security: WPA/WPA2-PSK

API: Open Network Video Interface (S Profile)

Simultaneous Live View: Up to 6 Channels

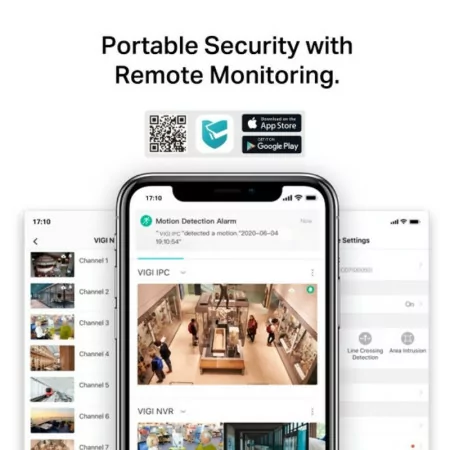

Client: VIGI Application, VIGI Security Manager, VIGI NVR, Web

Supported Web Browsers: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

cloud: yes

ONVIF: Yes

INTERFACE:

Network Interface: 1 RJ45 10/100M Auto Adaptable Ethernet Port

Audio Output: N/A

Alarm: N/A

Reset Button: Yes

Power: DC Power Port

Button: Reset Button

Built-in Storage: Built-in Memory Card Slot, MicroSD Card Support, Up to 256GB

Built-in Microphone: Yes

Built-in Speaker: Yes

Audio: N/A

ALARM AND EVENT MANAGEMENT:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Region Removal Detection Object

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Unauthorized Access)

Alarm Link: Memory Card Video Recording, Message Push, Sound Warning, White Light Flash

Connection Method: N/A

Departure Notification: Message Sending

GENERAL:

Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Accessories, Power Adapter, Mounting Accessories

Operating Temperature: -30–60 °C

Storage Temperature: -40–60 °C

Storage Humidity: 95% or Less (Non-Condensation)

Operating Humidity: 95% or Less (Non-Condensation)

Dimensions (H x W x D): 174 * 80 * 71 mm

Material: Plastic

Weight: 195g

Net Weight: 0.24 Kg

Gross Weight: 0.53 Kg

Power Consumption: Maximum 8.5W (IR_LED + Sound/Light Alarm)

Power Supply: 12V DC; 1A

Antenna: Quantity: 2, Type: 2.4GHz Soldered Dipole Omnidirectional Antenna, Gain: 2.0 dBi

Protection: N/A

Product Dimensions (W x D x H): 123 × 83 × 123 mm

Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

WIRELESS:

WiFi channels: 1-13

Frequency: 2.4GHz

Wireless Transmission Power: High

Automatic Wireless Channel: N/A

Wireless Stats: N/A

Throughput Monitoring: N/A

Radio Bandwidth: Auto: N/A, 20M: Yes, 40M: Yes

Wireless rate: 11Mbps (802.11b), 54Mbps (802.11g), 150/300Mbps (802.11n)

Wireless Security: PWPA/WPA2-PSK

Wireless Mode: AP, AP Client

IMAGE/VIDEO:

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264

H.264 Type: Main Profile/High Profile

H.264+: Supported on Main Stream

H.265 Type: Main Profile

H.265+: Supported on Main Stream

Frame Rate and Resolutions: Main Stream, Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps, Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720, Sub Stream, Rate Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps, Resolution: 640x480, 352x288, 320x240

Maximum Resolution: 2560 X 1440

Video Streaming: Main Stream, Secondary Stream

Picture Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Light Overexposure Prevention, Client Software Adjustable HLC, Rotation (90°/270°)

Image Enhancement: BLC/3D DNR/Infrared Light Overexposure Prevention

Video Bitrate: Main Stream: 256 Kbps to 3 Mbps, Sub Stream: 64 Kbps to 512 Kbps

Day/Night Switching: Day/Night/Auto/Schedule

Privacy Mask: Up to 4 Masks

SMART FEATURES:

Intelligent Event: Human and Vehicle Classification, Area Intrusion Detection, Line Crossing Detection, People Detection, Region Entering Detection, Region Exit Detection, Abandoned Object Detection, Object Removal Detection

Basic Event: Motion Detection, Video Manipulation Detection, Exception (Unauthorized Access)

Connection Method: N/A

Alarm Link: Memory Card Video Recording, Message Push, Sound Warning, White Light Flash

Departure Notification: Message Sending
