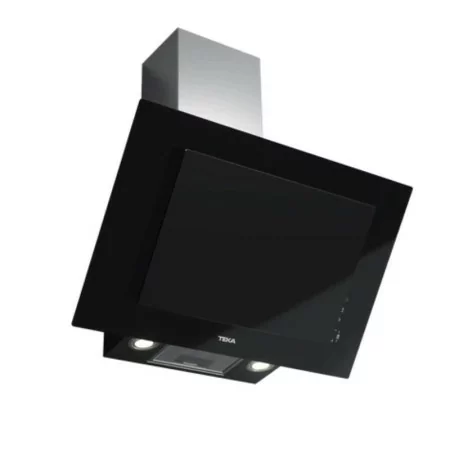

Teka Decorative Chimney - Dvt 98660 Tbs Bk - Black

Versatile installation

Installation with or without copper tubes. In recirculation or with exit to the outside . All the options you need in this wide range where each hood integrates into your kitchen like a small work of art.

Fresh Air function

Renews the air for 24 hours in 10-minute cycles, every hour. Ideal for family gatherings at home, as it eliminates unpleasant odors, keeping the kitchen air always clean and fresh.

Regenerative filters

The incorporation of a state-of-the-art regenerative filter (optional) improves odor elimination. Eliminates up to 95% of odors for approximately three years.

Dual suction system

The incorporation of an additional filter improves extraction and eliminates bad odors. The Dual suction system combines frontal and perimeter suction.

State-of-the-art engines

Extra silent , more efficient motors, with greater energy savings , durability and lower noise, thanks to their robust design. More extraction with minimum consumption.

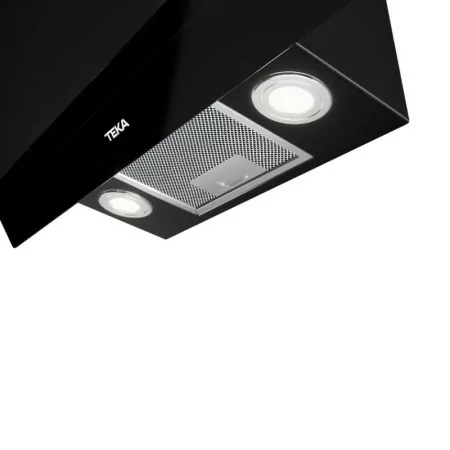

LED lighting, more powerful and responsible for the environment

It incorporates LED lighting , which gives the cooking area greater space, in addition to reducing energy consumption.

Ease of cleaning

Thanks to the pneumatic opening system, the perimeter glass remains fixed, thus improving safety during cleaning. Place the filters in the washing machine for a deeper clean.

Ease of use

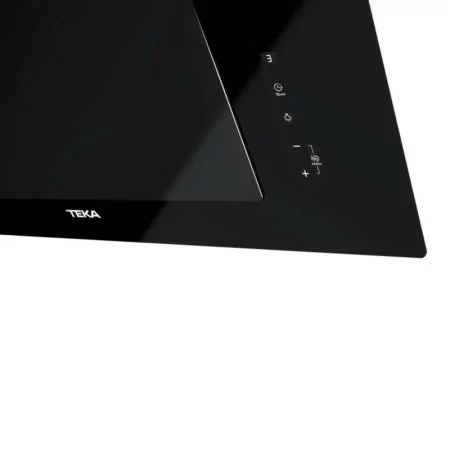

The control panel is fully integrated into the glass, simple and intuitive , allowing you to access the different functions quickly and efficiently .

• Type: Wall-mounted vertical decorative chimney
• Control Panel: Touch Control with white digital display
• Lighting: 2 LED lamps
• Speeds: Three speeds + one intensive
• Speed Indicator: Digital, shows the selected speed
• Features: Timed operation, Fresh air function (24-hour program to renew the air or kitchen odors)
• Filters: Metal interior, filter saturation light indicator
• Vacuum System: Perimeter "Contour", Dual suction system
• Engine: Shielded double turbine ECOPOWER
• Opening System: Pneumatic
• Internal Tray: For collecting condensate/grease
• Extraction Capacity: 307 m3/h (minimum) - 698 m3/h (maximum)
• Sound Power Level: 61 dBA (minimum) - 72 dBA (maximum)
• Operation: Possibility of recirculation

• Height: Adjustable from 800 mm to 1100 mm
• Width: 900mm
• Depth: 412 mm
• Weight: 16.2 kg

• Certificates: CE, CB, Rohs, Gmark
• Outlet (Ø): 150 mm
• Interior Light Consumption: 4.2 W
• Plug Type: Schuko plug
• Connection Cable Length: 100 cm
• Voltage: 220-240V
• Frequency: 50/60 Hz
• Maximum Hood Power: 286 W
• Number of Engines: 1
• Motor Power: 280 W

• Non-return valve: Yes
• Optional Reduction: Yes
• Optional Extension: No
• Optional Charcoal Filter: C1RTK
• Front Panel Code: Not specified
