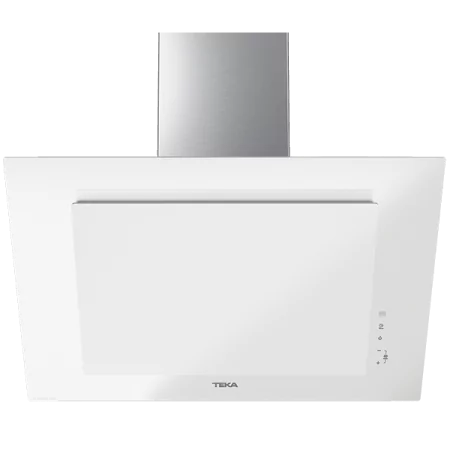

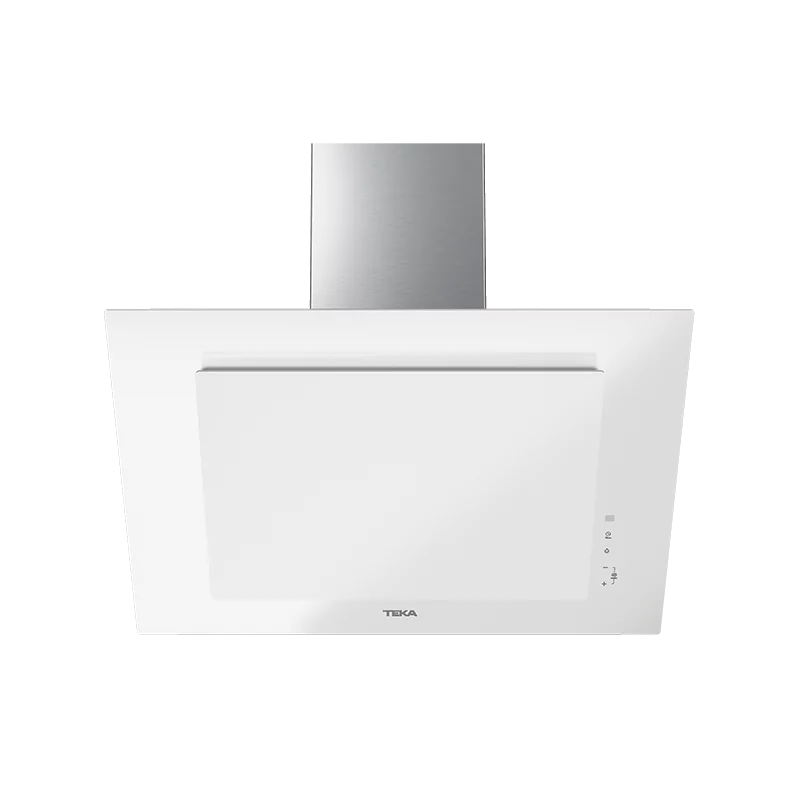

Teka Decorative Fireplace - DVT 78660 TBS - White

Versatile installation

Installation with or without copper pipes. In recirculation or with outlet to the outside . All the options you need in this wide range where each extractor hood integrates into your kitchen like a small work of art.

Fresh Air Function

It renews the air for 24 hours in 10-minute cycles every hour. Ideal for family gatherings at home, as it eliminates unpleasant odors, keeping the air in the kitchen clean and fresh.

Regenerative filters

The incorporation of a latest generation regenerative filter (optional) improves odour elimination. Eliminates up to 95% of odours for approximately three years.

Dual suction system

The incorporation of an additional filter improves extraction and eliminates bad odours. The Dual suction system combines frontal and perimeter suction.

Latest generation engines

Extra quiet , more efficient motors, with greater energy savings , durability and lower noise, thanks to their robust design. More extraction with minimum consumption.

LED lighting, more powerful and environmentally responsible

It incorporates LED lighting , which gives the cooking area greater amplitude, in addition to reducing energy consumption.

Ease of cleaning

Thanks to the pneumatic opening system, the perimeter glass remains fixed, thus improving safety during cleaning. Place the filters in the washing machine for a deeper clean.

Ease of use

The control panel is fully integrated into the glass, simple and intuitive , allowing you to access the different functions quickly and efficiently .

• Type: Decorative vertical wall fireplace
• Control Panel: Touch Control with white digital display
• Lighting: 2 LED lamps
• Speeds: Three speeds + one intensive
• Speed Indicator: Digital
• Timed Operation: Yes
• Filters: Internal metallic filters with saturation indicator light
• Suction System:
• "Contour" perimeter
• Dual
• Engine: ECOPOWER double turbine armored engine
• Fresh Air function: 24-hour program to renew the air or odors in the kitchen
• Opening System: Pneumatic
• Internal Tray: For collecting condensate/fat
• Extraction Capacity: 307 m3/h (minimum) - 698 m3/h (maximum)
• Sound Power Level: 61 dBA (minimum) - 72 dBA (maximum)
• Recirculation: Possible
• Compatibility with Copper Pipes:
• Regenerative kit RFH 15200 L2C or conventional kit CFH 15200 L2C (with copper tubes)
• Regenerative kit RFH 15200 O2C or conventional kit CFH 15200O2C (without copper tubes)

• Height: Adjustable from 800mm to 1100mm
• Width: 700 mm
• Depth: 412 mm
• Net Weight: 15.3 kg

• Certificates: CE, CB, Rohs, Gmark
• Air Outlet: Ø 150 mm
• Internal Condensate/Fat Collection Tray: Yes
• Dual Suction System: Yes
• Interior Light Consumption: 4.2 W
• Plug Type: Schuko plug
• Connection Cable Length: 100cm
• Voltage: 220-240V
• Frequency: 50/60 Hz
• Maximum Extractor Power: 286 W
• Number of Engines: 1
• Motor Power: 280 W

• Non-Return Valve: Yes
• Optional Reduction: Yes
• Optional Extension: No
• Optional Carbon Filter: C1RTK

• Color: White
• Number of Filters: 2
• Opening System: Piston
• Timed Operation: Yes
• Filter Saturation Indicator: Yes
• Number of Speeds: 3 + 1
• Fresh Air Function: Yes
