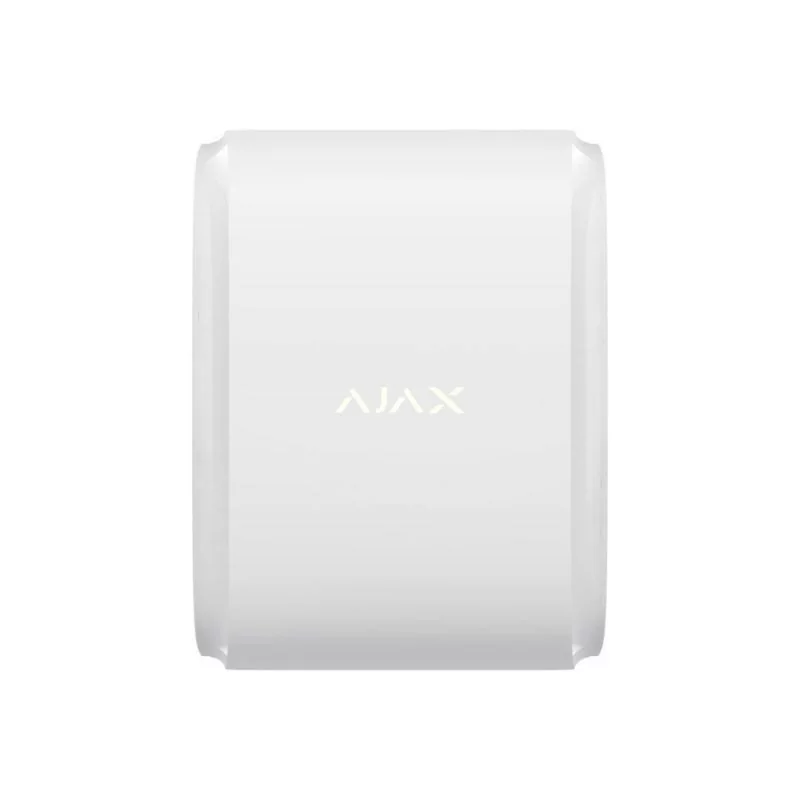

Ajax DualCurtain Outdoor 15MX2 AM Curtain Detector - White

• DualCurtain Outdoor curtain and motion detector
• SmartBracket installation panel
• 2 × CR123A batteries (pre-installed)
• Installation kit
• User Guide

• Two detectors in one
• Masking sensors
• Exclusive optical systems
• Flexible settings
• Up to 4 years of battery life
• Load level in the app
• Low battery notification

• Classification: Electro-optical radio channel security detector
• Detector type: Wireless
• Installation method: Indoor/Outdoor
• Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
• Sensing element: 4 × PIR sensors
• Motion detection distance: Between 4 and 15 m (depending on configurations) for each optical system
• False alarm protection: Available
• Alarm signal transmission time: 0.15 s
• Detection angle:
• Horizontal — 4.5°
• Vertical — depending on settings
• Time period for motion detection: From 0.3 to 2 m/s
• Sensitivity: Adjustable, 3 levels
• Power supply: 2 × CR123А batteries, 3 V
• Battery life: Up to 4 years
• Temperature sensor: Available
• Jeweler radio technology:
• Communication range with central unit — up to 1700 m line of sight
• Two-way communication between devices
• Operating frequencies — 868.0–868.6 MHz
• Self-adjusting RF output power — up to 20 MW
• Block encryption based on AES algorithm
• Detector polling period — 12–300 s
• Frequency Hopping
• Operating temperature range: From –25°С to +60°С
• Permissible humidity: Up to 95%
• Protection class: IP54
• Anti sabotage:
• Counterfeit Protection
• Obstruction detection
• Tamper resistant
• Dimensions: 174 × 123 × 88 mm
• Weight: 615 g

• DualCurtain Outdoor Motion Detector
• SmartBracket installation panel
• 2 × CR123A batteries (pre-installed)
• Installation kit
• user's Guide
