Ajax Tactile Keyboard - Keypad Plus - Black

Touch control without compromises in reliability

KeyPad Plus is a combination of design, advanced encryption technology and a user experience crafted for the simplest and most secure security management . Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag command ( You can purchase Ajax tags here ).

Top-notch data protection

To identify users quickly and securely , KeyPad Plus features DESFire® technology. It is the best contactless solution to identify the user using a card or remote control . DESFire® is based on the international standard ISO 14443 and combines detailed 128-bit encryption and copy protection . This technology is also used in the transport systems of European capitals and in NASA's access systems .

Extraordinary autonomy

The new KeyPad Plus firmware takes full advantage of the pre-installed batteries . Even using the contactless identification functions daily, the keyboard works for 3.5 years without replacing the batteries . With the card reader and remote control disabled, the battery life reaches 4.5 years. KeyPad Plus notifies the alarm receiving center and users in advance when batteries need to be replaced .

Remote access control

Define personal access codes and know by whom and when the system was disarmed: the user name is displayed in the notification and in the event log. The Pass or Tag can also be assigned to a specific user, being able to define the respective permissions to control the security of specific groups or the entire location. The Ajax app allows you to manage access permissions in real time . It is possible to immediately limit , extend or block access.

Specifications:

Keyboard Type:

• Capacitive touch keyboard

Installation:

• For indoor use only

Compatibility:

• Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, radio signal repeaters with OS Malevich 2.11 and later

Personal Access Codes:

• Yes

Protection against Attempt to Guess the Access Code:

• Yes

Code under Duress:

• Yes

Contactless Access:

• DESFire® EV1, EV2, ISO14443-А (13.56 MHz)

Power Source: Batteries:

• 4 AA lithium (FR6), Voltage 1.5 V, Battery life: up to 4.5 years

Temperature sensor:

• Yes

Jeweler Radio Technology:

• Communication range with the central unit — up to 1700 m
• Two-Way Communication between Devices

Radio Frequency Bands:

• 866.0 – 866.5 MHz
• 868.0 – 868.6 MHz
• 868.7 – 869.2 MHz
• 905.0 – 926.5 MHz
• 915.85 – 926.5 MHz
• 921.0 – 922.0 MHz

• Self-Adjusting RF Output Power: Up to 20 MW
• Block Encryption with a Dynamic Key
• Ping Period: 12–300 s

Anti-sabotage:

• Authentication
• Obstruction Detection
• Tamper Alarm
• Operating Temperature Range: Between –10°C and +40°C
• Operating Humidity: Up to 75%

Dimensions:

• 165×113×20mm
• Weight: 267 g

Certification:

• EN 50131, in compliance with the requirements of technical regulations governing radio equipment

Guarantee:

• 24 months

Full set

• KeyPad Plus

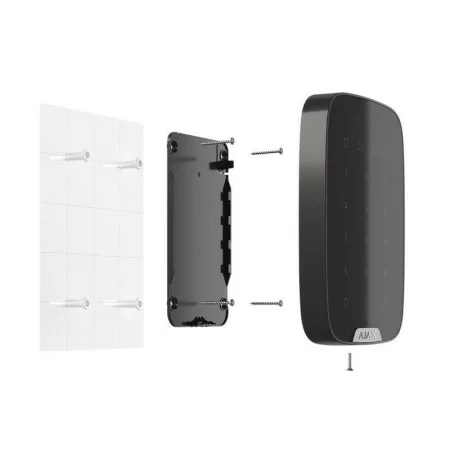

• SmartBracket Installation Panel
• 4 АА batteries (pre-installed)
• Installation Kit
• User Guide
