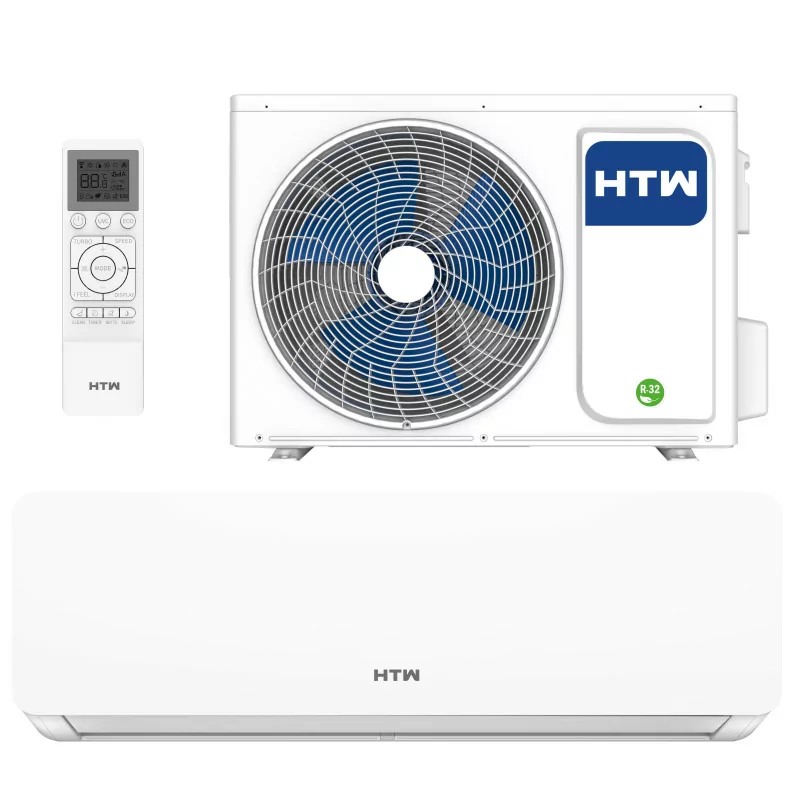

HTW Air Conditioner - IX75 18000BTU R32 - Monosplit

Rapid cooling and heating

After power on, it can make the compressor and turbo run at high frequency to reach the maximum operating speed and instantly achieve the maximum cooling/heating input volume.

Mold testing

It is common for water to remain in the unit after the air conditioner is turned off.

With mold- proof technology, when the air is turned off, the fan continues to run for 3 minutes to dry the evaporator and fan, keeping the unit mold-free.

ECO Mode

When ECO mode is activated, the air conditioner limits the input power to save energy and make the unit more economical. This is a great advantage for those who want a comfortable cooling experience without worrying about the cost of operation.

Turbo

HTW Air Conditioning maximizes cooling and heating power , making the room cool or heat faster and reach the desired temperature in the shortest possible time.

• Includes ECO mode, which limits input power to save energy. Includes a Silent mode (operating in a light breeze).
• I-feel function: temperature sensor in the remote control for greater temperature accuracy.
• Self-cleaning: Effectively removes bacteria and viruses from the evaporator to keep the air clean.
• Turbo Mode: Maximizes cooling and heating power, making the room cool or heat faster.
• Mildew proof: When the Split is turned off, the fan continues to run for 3 minutes to dry the evaporator and fan

• Capacity: 5000W (1610-5200 Frig/h)
• Consumption: 1540 W (350-2400)
• Current: 7.2 A (1.6 - 10.4)
• SEER: 6.1
• Cold Energy Rating: A++
• Annual Consumption: 271 kWh
• EER: 3.25 W/W

• Capacity: 5000 W (1610-5300 cal/h)
• Consumption: 1340 W (350-2450)
• Current: 6.2 A (1.6 - 10.6)
• SCOP: 4
• Heat Energy Rating: A+
• Annual Consumption: 1007 kWh
• COP: 3.73 W/W

• Sound Power: 56/51/48/44 dB(A)
• Sound Pressure (H/M/L/S): 44/41/38/24 dB(A)
• Air Flow: 820/720/620/520 m3/h
• Dehumidification Capacity: 1.4 L/h
• Temperature Range: 16 - 32 ºC

• Sound Power: 65 dB(A)
• Sound Pressure (H/M/L/S): 54 dB(A)
• Air Flow: 2300 m3/h
• Operating Temperature: -15~53ºC
• Compressor: GMCC
• Refrigerant Type/Charge: R32/0.95 kg: 0.95
• Supplementary Load (if >5 g/m): 15

• Indoor Unit - Net Dimensions: 908 x 295 x 225 mm
• Indoor Unit - Gross Dimensions: 979 x 354 x 292 mm
• Indoor Unit - Net/Gross Weight: 10/12 kg
• Outdoor Unit - Net Dimensions: 780 x 560 x 270 mm
• Outdoor Unit - Gross Dimensions: 889 x 612 x 359 mm
• Outdoor Unit - Net/Gross Weight: 27.6/30.6 kg

• Liquid-Gas In.: 1/4" - 1/2"
• Maximum Length: 25 m
