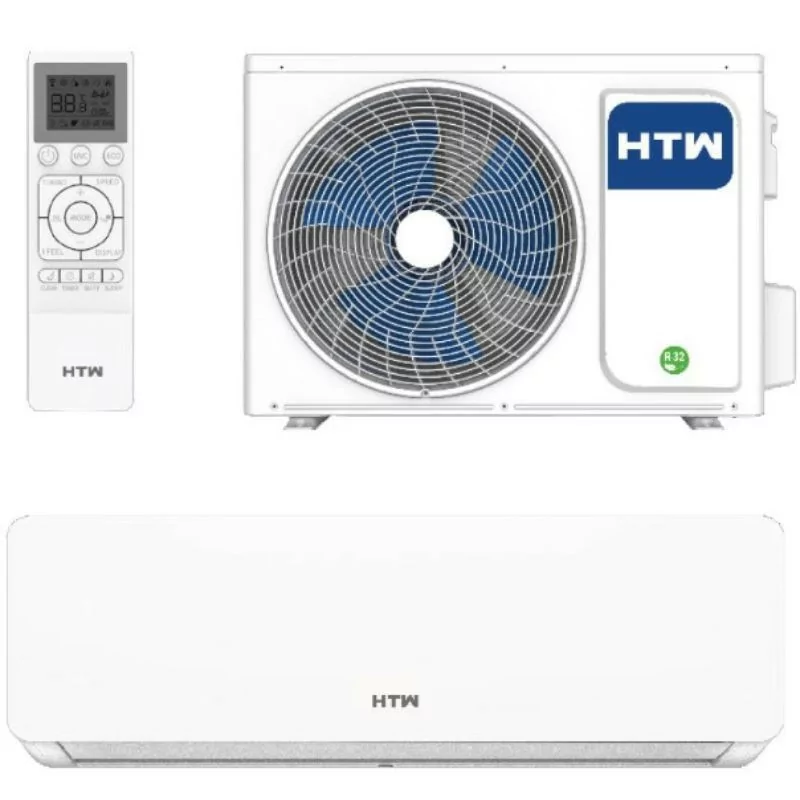

HTW Monosplit Air Conditioner - IX75 9,000 BTU R32

Rapid cooling and heating

HTW Air Conditioner after being turned on, can make the compressor and turbo work at high frequency to reach the maximum operating speed and instantly achieve the maximum cooling/heating input volume.

Mold testing

It is common for water to remain in the unit after the air conditioner is turned off.

With mold- proof technology, when the air is turned off, the fan continues to run for 3 minutes to dry the evaporator and fan, keeping the unit mold-free.

ECO Mode

When ECO mode is activated, the air conditioner limits the input power to save energy and make the unit more economical. This is a great advantage for those who want a comfortable cooling experience without worrying about the cost of operation.

Turbo

HTW Air Conditioning maximizes cooling and heating power , making the room cool or heat faster and reach the desired temperature in the shortest possible time.

• Includes ECO mode, which limits input power to save energy. Includes a Silent mode (operating in a light breeze).
• I-feel function: temperature sensor in the remote control for greater temperature accuracy.
• Self-cleaning: Effectively removes bacteria and viruses from the evaporator to keep the air clean.
• Turbo Mode: Maximizes cooling and heating power, making the room cool or heat faster.
• Mildew proof: When the Split is turned off, the fan continues to run for 3 minutes to dry the evaporator and fan

• W capacity: 2500 (660-2780)
• Cooling capacity/h: 2150 (568 - 2520)
• W consumption: 770 (250-1300)
• SEER: 6.1
• Cold Energy Rating: A++

• W capacity: 2600 (660-2880)
• Cal/h capacity: 2236 (568 - 2640)
• W consumption: 680 (250-1300)
• SCOP: 4
• Heat Energy Rating: A+

• Indoor Unit
• Sound Power dB(A): 50/47/44/37
• Sound Pressure (SH/H/L/SL) dB(A): 40/38/34/21
• Air flow rate m3/h: >=/ 500
• Dehumidification capacity L/h: 0.9
• Selectable Temperature ºC: 16 - 32
• Outdoor Unit
• Sound Power dB(A): 62
• Sound Pressure dB(A): 52
• Air Flow m3/h: 2180
• Operating Temp. ºC: -15~52
• Compressor: GMCC

• Type / Load R32/kg: 0.57
• Extra Rate > 5 g/m: 15

• Indoor Unit
• Net Dimensions (W×H×D) mm: 700 x 198 x 270
• Gross Dimensions (W×H×D) mm: 750 x 267 x 317
• Net/Gross Weight kg: 8/9
• Outdoor Unit
• Net Dimensions (W×H×D) mm: 665 x 530 x 260
• Gross Dimensions (W×H×D) mm: 785 x 600 x 340
• Net/Gross Weight kg: 23/25

• Cooling Pipe
• Liquid-Gas: 1/4" - 3/8"
• Max. Length: 20 m
• Max. Elevation: 15 m
• Electrical Connections
• Power Source:

Brand

HTW

Reference

HTWS026IX75

Stock Online

Available

Stock Store

Available

Energy Class

A

Noise Emission Level

44 dB

Connectivity

With Wi-Fi

BTUs

9.000

Attachments

cloud_download Ficha Técnica IX75

cloud_download Apresentação
