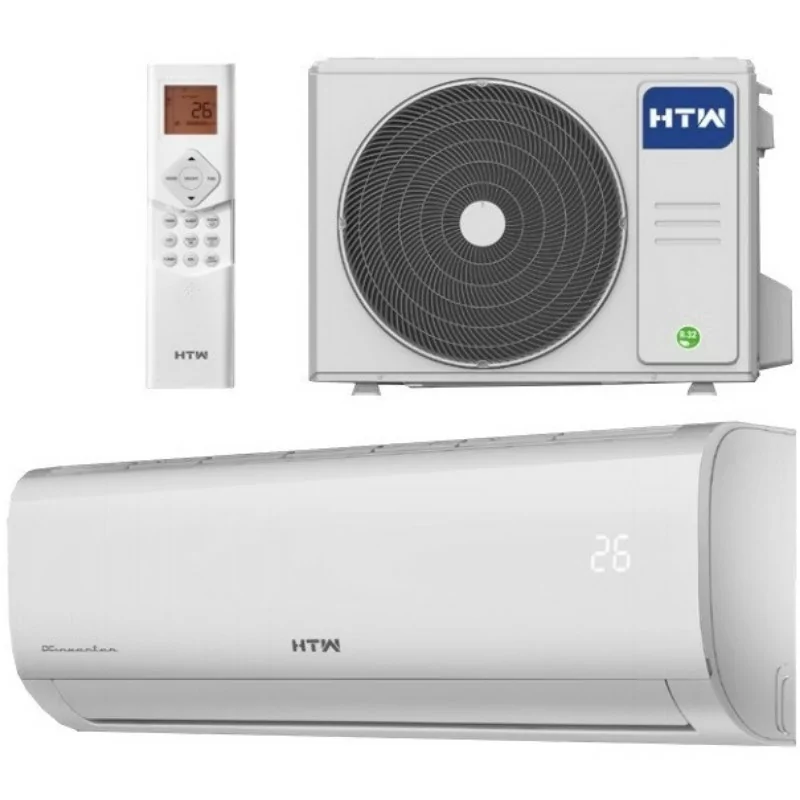

HTW Air Conditioning - IX21D4 9000BTU R32 - Monoplit

Fixed Indoor and Outdoor Air Conditioning S026IX21D4 HTW: Quiet Performance and Energy Efficiency

The HTW Fixed Indoor and Outdoor Air Conditioning S026IX21D4 HTW stands out for its silent operation and energy efficiency, providing a comfortable environment without compromising the tranquility of the space.

Remote Control via WiFi: Full Remote Access

The inclusion of WiFi allows remote control of the equipment anytime, anywhere, providing convenience and flexibility to users.

Clean and Pure Air: Advanced Filters for Air Quality

Equipped with Cold Catalyst, Silver Ion and Active Carbon filters, this air conditioner guarantees an environment free of bad odors and particles, promoting the respiratory health of the occupants.

Versatile Installation: Support for Large Distances and Level Differences

With the capacity to support large installation distances, up to 50 meters in total and up to 25 meters of level difference (depending on the model), this system adapts to the needs of different spaces and layouts.

Anticorrosive Protection: Durability in Saline Environments

The internal and external unit batteries have Golden Fin protection, ideal for saline environments, guaranteeing resistance and durability even in adverse conditions.

• Capacity (kW): 2.6 (0.9 – 3.39)
• BTU/h: 9,000 (3,100 ~ 11,600)
• Consumption (W): 732 (100 ~ 1,240)
• SEER: 6.3
• Energy rating (Cold): A++

• Capacity (kW): 2.91 (0.82 – 3.37)
• BTU/h: 10,000 (2,800 ~ 11,500)
• Consumption (W): 733 (120 ~ 1,200)
• SCOP: 4
• Energy rating (Heat): A+

• Sound power (dB(A)): 54
• Sound pressure (dB(A)): 38.5 / 32 / 25 / 21
• Air flow (m³/h): 466 / 360 / 325
• Operating temperature (ºC): 16 ~ 31

• Sound power (dB(A)): 62
• Sound pressure (dB(A)): 55
• Air flow (m³/h): 1,750
• Operating temperature (ºC): (-15 ~ 50) / (-15 ~ 30)
• Compressor: GMCC
• Refrigerant Type / charge (R32/kg): 0.55
• Additional load > 5 m (g/m): 12

• Internal Unit:
• Net dimensions (W × H × D) mm: 805 x 285 x 194
• Gross dimensions (W × H × D) mm: 870 x 365 x 270
• Net / gross weight (kg): 7.6 / 9.7

• External Drive:
• Net dimensions (W × H × D) mm: 720 x 495 x 270
• Gross dimensions (W × H × D) mm: 835 x 540 x 300
• Net / gross weight (kg): 23.2 / 25

• Cooling tube:
• Liquid – Gas (Inches): 1/4″ – 3/8″
• Max length (m): 25
• Max lift (m): 10

• Electrical connections:
• Feed (mm): 2 x 2.5 + T
• Interconnect (mm): 4 x 2.5 + T
