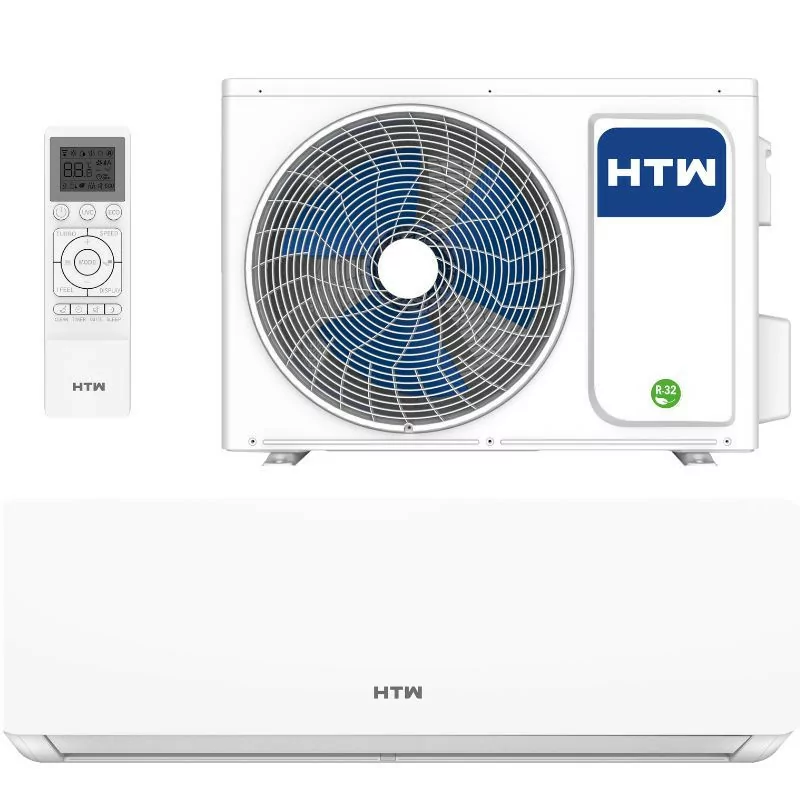

HTW Air Conditioner - IX251D5 - 24,000 BTU R32 - Outdoor (Not Kit)

Clean Air

The HTW Air Conditioner is equipped with Cold Catalyst, Silver Ion and Activated Carbon filters , designed to eliminate bad odors and particles, ensuring cleaner and healthier air.

Connect+ Optional

A special card is available for automatic switching of air conditioning in hotel cards, tourist apartments or window sensors, offering a convenient solution for different environments and usage needs.

WI-FI Included

Allows control of the equipment via a smartphone , tablet or by voice commands using devices such as Alexa and Google Home.

Versatility

Supports installations at distances of up to 50 meters and slopes of up to (applicable to the 7.1 kW model).

Lifespan

The indoor and outdoor unit coils are protected with Golden Fin Protection , an anti-corrosion coating specially developed for saline environments, significantly extending their durability.

Comfort

The I Feel function allows the split air conditioner to adjust the temperature based on the temperature set by the remote control, providing a more comfortable and personalized environment.

Efficiency

Energy rating A+++ for refrigeration and A+++ for heating in hot areas, ensuring efficient and economical performance over time.

Specifications

General

Model: HTWS071IX21D5-R32

Type: Wall split

Refrigerating capacity

Capacity: 7.03 kW (2.08-7.92)

BTU/h: 23,900 (7,100-27,000)

Consumption: 2600 W (420-3150)

Current: 11.5A

SEER: 6.1 W/W

Energy rating (Cold): A++

Annual consumption: 405 kWh

Heating capacity

Capacity: 7.33 kW (1.62-7.92)

BTU/h: 24,900 (5,500-27,000)

Consumption: 2400 W (300-2750)

Current: 11A

SCOP: 4.0 W/W

Energy rating (Heat): A+

Annual consumption: 1680 kWh

 Characteristics

Outdoor Unit Features

Sound power: 67 dB(A)

Sound pressure: 59 dB(A)

Air flow: 3500 m3/h

Operating temperature range (Cold/Heat): -15-50/-20-30 °C

Indoor Unit Features

Sound power: 59 dB(A)

Sound pressure (H/M/L): 45/40.5/36/29.5 dB(A)

Air flow: 980/817/662 m3/h

Selectable temperature range: 17-32/0-30°C

Compressor

Type: Twin-rotary

Brand: GMCC

Refrigerator

Type/Load: R32/Kg 1.42

Additional load: 24 g/m

 Dimensions

Dimensions and Weight Outdoor Unit

Overall dimensions (WxHxD): 890x673x342 mm

Gross dimensions (WxHxD): 995x740x398 mm

Net/gross weight: 42.9/45.9 kg

Dimensions and Weight Indoor Unit

Overall dimensions (WxHxD): 1040x327x220 mm

Gross dimensions (WxHxD): 1120x405x315 mm

Net/gross weight: 12.3/15.8 kg

Connections:

Cooling tube

Liquid-Gas: 3/8-5/8 inches

Maximum length: 50 m

Maximum elevation difference (Interior): 25 m

Electrical connections

Feed: 2x2.5+T mm

Interconnect: 4x2.5+T mm
