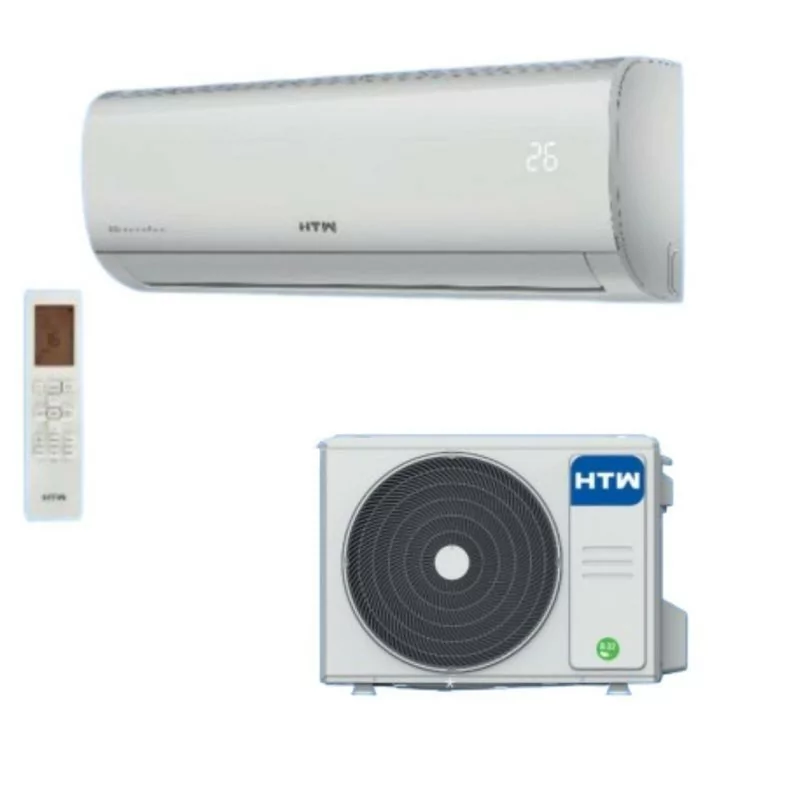

HTW Air Conditioner - IX251D5 - 18,000 BTU R32 - Outdoor (Not a Kit)

Breathe health, live comfort

With the Split IX21D5 you can experience the best comfort, with its triple filter it will eliminate bad smells and small particles and thanks to its included Wi-Fi , you can control all the functions such as on/off, timer, and more, at any time, and from anywhere. Compatible with Google Home and Alexa .

Increased efficiency

In the smaller powers of 9k and 12k , thanks to the internal changes that were made to the machine, it was possible to increase the SEER and SCOP , gaining more efficiency.

Wifi connection and voice control included

Connect your device to Alexa and GoogleHome

With the included wifi , you can control the temperature, on/off and other functions at any time and from anywhere.

Change of component design

• DC fan to reduce input power, increase efficiency and reduce noise.
• 12-slot, 8-pole compressor motor, which reduces noise and vibration.
• The new multi-slot compressor has higher efficiency, especially at low frequency, and allows for better SEER/SCOP.

• Capacity: kW: 5.28 (1.99 - 6.73)
• Btu/h: 18,100 (6,800 - 23,000)
• Consumption: W: 1550 (140 - 2300)
• Current: 6.7 A
• Efficiency: SEER (W/W): 7
• Energy rating: A++
• Annual consumption: 247 kWh

• Capacity: kW: 5.57 (1.29 - 6.74)
• Btu/h: 18,800 (4,400 - 23,000)
• Consumption: W: 1570 (220 - 2350)
• Current: 6.8 A
• Efficiency: SCOP (W/W): 4.0
• Energy rating: A+
• Annual consumption: 1435 kWh

• Noise Level: Sound Power: 63 dB(A)
• Sound pressure: 56 dB(A)
• Air Flow: 2100 m³/h
• Operating Temperature: Cold: -15°C to 50°C
• Heat: -20°C to 30°C
• Compressor: Type: Rotary Twin-rotary, Brand: GMCC
• Refrigerant: Type/Charge: R32/1.08 kg, Additional charge: 12 g/m

• Net Dimensions (W x H x D): 805 x 554 x 330 mm
• Gross Dimensions (W x H x D): 915 x 615 x 370 mm
• Weight:
• Net: 32.7 kg
• Gross: 35.4 kg

• Diameter:
• Liquid: 1/4"
• Gas: 1/2"
• Maximum Length: 30 m
• Maximum height difference (inside): 20 m

• Power: 2x2.5mm² + Ground
• Interconnection: 4x2.5mm² + Ground

Brand

HTW

Reference

HTWS052IX21D5-R32

Stock Online

Low stock

Stock Store

Low stock

Energy Class

A+++

Noise Emission Level

63 dB

Special Features

Desumidificador

Connectivity

With Wi-Fi

BTUs

18.000

Attachments

cloud_download Ficha Técnica IX75

cloud_download Apresentação
