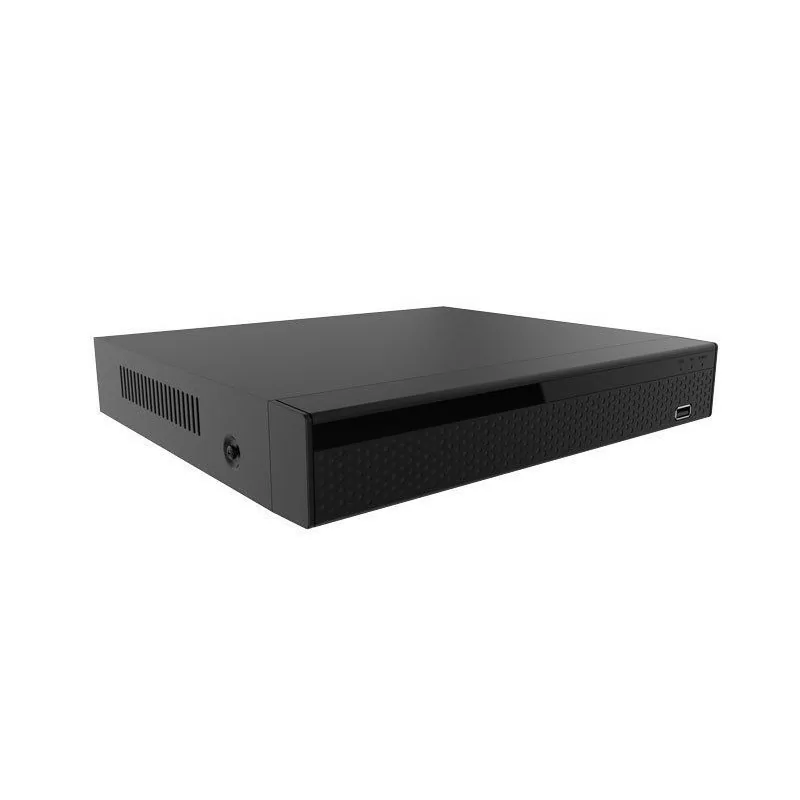

Amiko 800 XVR 8/16 (FULL HD)

16 CH H.264 / H.264 + 5 in 1 XVR (1080P)

• Max. 8CH HD or 16CH IP Camera Input
• Analog / AHD / CVI / TVI 2.0 / TVI 3.0 /
• HD Output Network,
• VGA and CVBS video output
• Resolution recording up to 5Mp
• 2 x USB Support ONVIF Live streaming for Android and iOS devices
• 1x SATA HDD/SSD supports up to 6TB
• EU black

Video:

• Input: Analog: 8*1080P
• Analog + Network: 6 * Analog (1080P) + 2 * Network (Max 2MP), 4 * Analog (1080P) + 4 * Network (Max 2MP), 2 * Analog (1080P) + 6 * Network (Max 2MP)
• Network: 16 * 1080P / 960P / 720P (total incoming bandwidth ≤ 50M)
• Entry: 8CH BNC
• Signal Type: Analog / AHD / CVI / TVI 2.0 / Network
• Output: 1HD, 1 VGA

Audio:

• Input: 4 Channel, RCA
• Output: 1 channel, RCA

Exhibition:

• VGA: Resolution: 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• HD Output: Resolution: Resolution: 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Split Display: 16ch / 9ch / 8ch / 4ch / 1ch
• Privacy mask: 3 rectangular zones (each camera)
• OSD: Camera Title, Time, Video Loss, Alarm, Motion Detection, Recording

Network:

• Interface: 1 10M/100M RJ45 Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, changeip, non-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
• Web Browser: IE8-11, Google Chrome (less than Ver44), Firefox (less than Ver53)
• CMS Software: Support Windows 7 / Windows 8 / Windows 10
• Extra Stream: CIF (1~12fps)
• Smart Phone: iPhone, iPad, Android, Android pad

Hard disk driver:

• Type 1 interface SATA interface
• Capacity: 1 SATA hard drive (2.5"/3.5" SATA, up to 6TB)

Physical Specifications:

• USB Interface: 2 USB 2.0 interfaces
• Power consumption: DC 12V ≤6W (without hard disk)
• Working environment: -10~55℃ / 10~90%
• Dimension (W × D × H): 260 * 215 * 43 (mm)
• Weight: 2 kg (without HDD)
