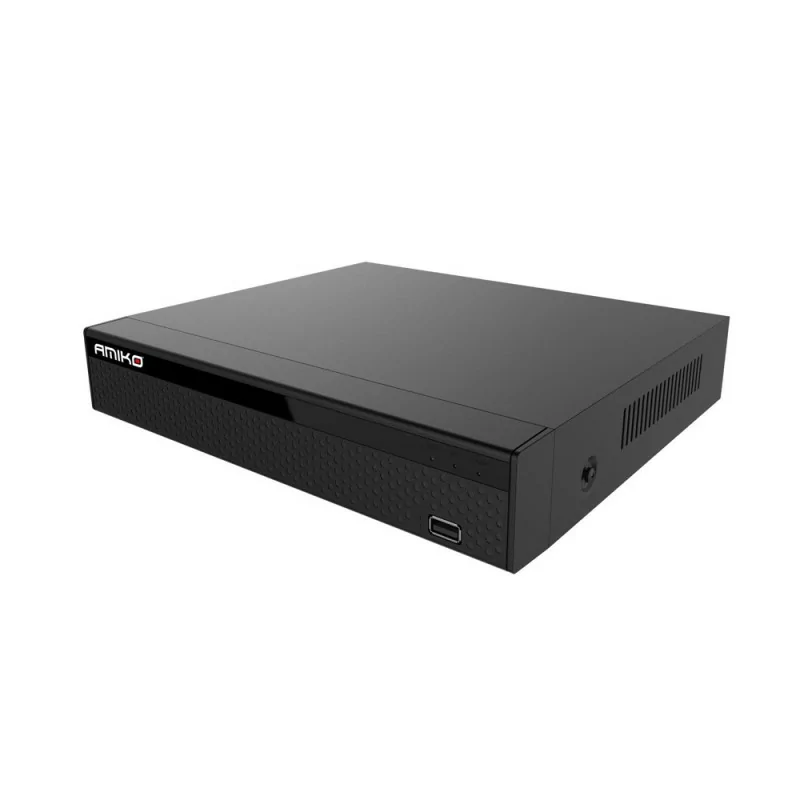

Amiko NVR8800 9CH8POE5M H265

Amiko NVR 8800-9CH 8 POE to record 9 cameras in 5 megapixel resolution and the following features:

HEVC H.265 (support H.265+/H.265/H.264+/H.264 video format)

Full HD

9CH NVR

8 POE ports

Maximum. 8TB HDD capacity

Third-party network cameras are supported

Up to 5 MP recording and playback resolution

HD and VGA output

HD port up to 1920×1080

Product Details

Specifications:

2 USB 2.0 interfaces

VGA

HD output

ONVIF support

Live streaming on Android and iOS devices

Supports 1x SATA HDD/SSD up to 8TB

EU black

Power supply: DC 52V / 2500mA ≤6W (without HDD and POE)

System features:

Main CPU: ARM Cortex A7 processor

Video:

Input: up to 9 channels

Input resolutions: 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720 etc.

Input bandwidth: maximum 60 MB/s.

Compression register: H265 / H264 / H265 + / H264 +

Recording resolution: 5 MP (2592 × 1944), 4 MP (2688 × 1520), 3 MP (2048 × 1536), 1080P (1920 × 1080), 960P (1280 × 960), 720P (1280 × 720), D1 (720×576) / 720×480)

Recording rate: PAL: 5MP at 9 × 25fp, 4MP at 9 × 25fp, 3MP at 9 × 25fp, 1080P at 9 × 25fp, 960P at 9 × 25fp, 720P at 9 × 25fp, D1 at 9 × 25fp; NTSC: 5 MP at 9 × 30 fp, 4 MP at 9 × 30 fp, 3 MP at 9 × 30 fp, 1080P at 9 × 30 fp, 960P at 9 × 30 fp, 720P at 9 × 30 fp, D1 at 9 × 30 fp

Recording Mode: Manual\Timer\Motion Detection

Exhibition:

VGA Resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

HD output resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

A/V and Data Input/Output:

VGA: video out

HD output: digital video output

SATA: 1 SATA interface for 2.5"/3.5" hard disk (up to 8TB)

USB: 2 high-speed USB 2.0 interfaces

Ethernet: Adaptive Ethernet Interface 9 x RJ45 10M / 100M

Physical Specifications:

Environment: -10~55℃ (Humidity: 10% -90%)

Dimensions (LxWxH): 260mm * 215mm * 43mm

Weight: 2.0 kg (without hard drive)
