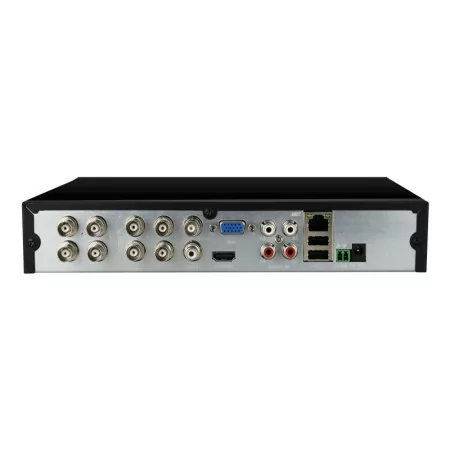

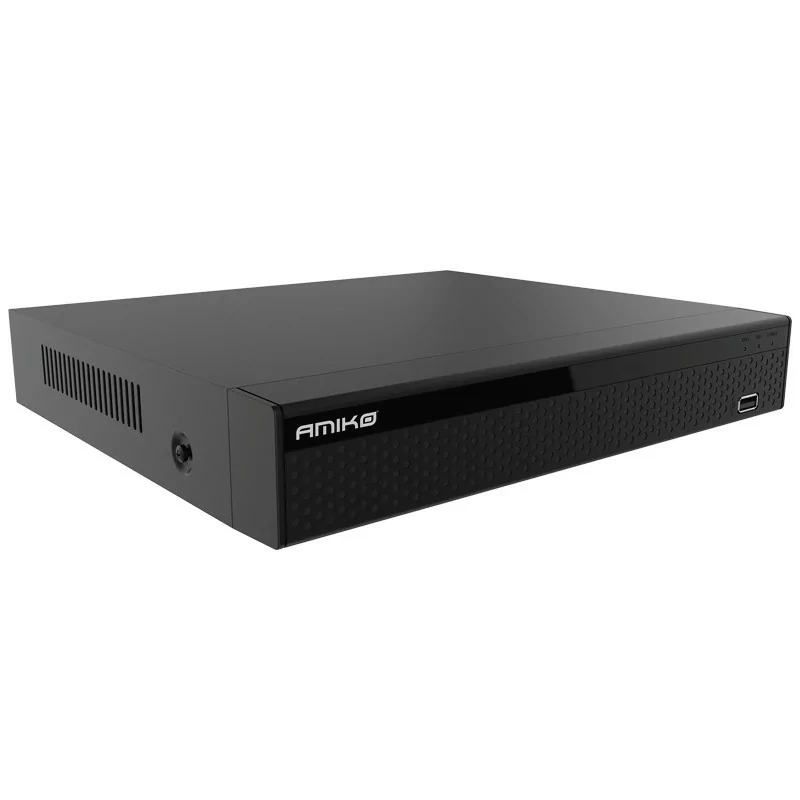

Amiko XVR840 8CH 5-IN 1 Recorder

Video:

• 8*(AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+8*network( Max. 8MP)
• Analog + Network: 2 * Analog + 14 * Network (Max 8MP), 4 * Analog + 12 * Network (Max 8MP), 6 * Analog + 10 * Network (Max 8MP)
• Network: 32 * network (Max 8MP) (Total input bandwidth ≤160M)
• Entry: 8CH BNC
• Signal type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1 HD, 1 VGA

Audio:

• Input: 4 channels, RCA
• Output: 1 channel, RCA
• Alarm
• Sensor Input: NO
• Output: NO
• Motion detection: 4 channels (maximum 16 channels in pure network mode)
• Trigger events: recording, email, screen tips, buzzer, push notifications (motion detection)
• Email alarm: send image to designated email

Screen:

• VGA: Resolution: Resolution: 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• HD: 3840×2160/30Hz, 2560x1440/30Hz, 1920×1080P/60Hz, 1280×1024/60Hz
• Display division: 16ch/9ch/8ch/4ch/1ch
• Privacy mask: 3 rectangular zones (each camera)
• OSD: camera title, time, video loss, alarm, motion detection, recording

Recording

• Video compression: H.265/H.265+/H.264/H.264+
• Audio compression: G711u
• Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080) ,720P(1280×720),960H(P:960×576/N:960×480)
• Video quality: worst/worse/common/good/best
• Recording Rate: Normal Mode:
• Analog: PAL:8MP_LITE(1920×2160 8*8fps),5MP(2592×1944 8*6fps),5MP_LITE(1296×1944 8*10fps),4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8 *15fps),3MP(2048×1536 8*9fps),1080P(1920x1080 8*15fps),720P(1280×720 8*25fps), 960H(960×576 8*25fps)
• NTSC:8MP_LITE(1920×2160 8*8fps),5MP(2592×1944 8*6fps),5MP_LITE(1296×1944 8*10fps),4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps ) ),3MP(2048×1536 8*9fps),1080P(1920x1080 8*15fps),720P(1280×720 8*30fps), 960H(960×480 8*30fps)
• Lite Mode:
• Analog: Half 1080P(960x1080 8*25fps),720P(1280×720 8*25fps), 960H(P:960×576 8*25fps/N:960×480 8*30fps)
• Pure IP (H.265):
• PAL: 4k@8x25fps, 5MP@12x25fps, 4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
• NTSC: 4k@8x30fps, 5MP@12x30fps, 4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps
• Recording Mode: Manual\Timer\Motion Detection
• Playback and backup
• Decoding Capability: 4CH 1080P@30fps
• Synchronized Playback: Pure Analog: 8CH 5M@6fps, 4CH 8M_Lite@8fps, 8CH 4M@8fps, 8CH 3M@9fps, 8CH 1080P@15fps, 8CH 1080N@25fps
• Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps
• Pure IPC: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote play: 4 channel / 1 channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions: Play, Pause, Stop, Fast Play, Rewind, Digital Zoom,
• Full screen
• Smartphone playback: 4 channels
• Backup Mode: USB Device (with FAT 32 format)/Network/FTP

Network:

• Interface: 1 10M/100M RJ45 Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
• Web Browser: IE8-11, Google Chrome (less than Ver44), Firefox (less than Ver53)
• CMS Software: Support Windows 7/Windows 8/Windows 10
• Extra stream: CIF(1~30fps)
• Smart Phone: iPhone, iPad, Android, Android pad
• Hard disk driver:
• Type 1 Interface SATA Interface
• Capacity: 1 SATA hard drive (2.5"/3.5" SATA, up to 8TB)

Specifications:

• USB Interface: 2 USB 2.0 Interfaces
• Power consumption: DC 12V ≤6W (without hard disk)
• Working environment: -10~55℃/10~90%
• Dimension (W×D×H): 260*215*43(mm)
• Weight: 2kg (Without HDD)
