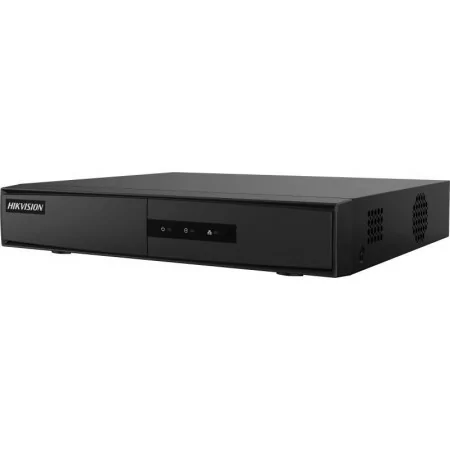

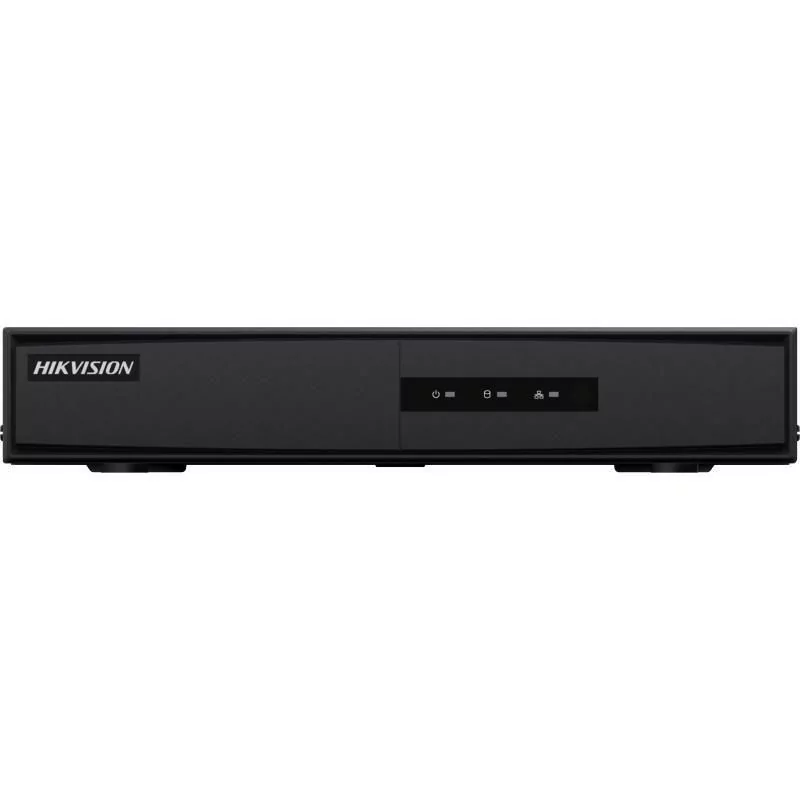

Hikvision NVR Recorder DS-7104NI- Q1/4P/M(D) - Game Core - (4CH - PoE 36W - 4MP)

• • Brand: Hikvision
• • Range: CORE
• • Inputs for IP cameras: IEEE802.3af/at 4-port PoE switch (max. 36 W)
• • PoE power: 4 (Max. 36 W)
• • Compatible IP cameras: HIKVISION (native protocol), ONVIF
• • Video outputs: 1xHDMI FullHD, 1xVGA simultaneously
• • Video compression format: H.265+ / H.265 / H.264+ / H.264
• • HDMI display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720
• • VGA display resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720
• • Total bandwidth: 40 Mbps in / 60 Mbps out
• • Stream Type: Video / Video + Audio
• • Main Stream Recording: 6MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
• • Decoding capacity: 1CH@6MPx, 2CH@4MPx, 4CH@1080p
• • Simultaneous multipurpose function: Pentaplex: Live, Record, Playback, Backup and Remote Access
• • Motion detection: Motion detection 2.0 with human and vehicle classification applied to motion detection. Only available with cameras that also have Motion Detection 2.0.
• • Alarms: Not available
• • Recording method: Manual, scheduled, motion detection
• • External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• • Remote access: Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central
• • Remote connections: 16
• • Internal storage: 1 SATA 3.5" HDD up to 6 TB (not included)
• • Communication: 2 x USB 2.0 (Rear) / 1 x RJ45 10/100M (Ethernet)
• • Power: DC 48 V / 1 A, ≤ 10 W (without HDD)
• • Operating temperature: -10ºC ~ 55ºC (10%-90% Humidity)
• • Dimensions / Weight: 48 (H) x 265 (W) x 223 (Dep) mm / 1 Kg (without HDD)
