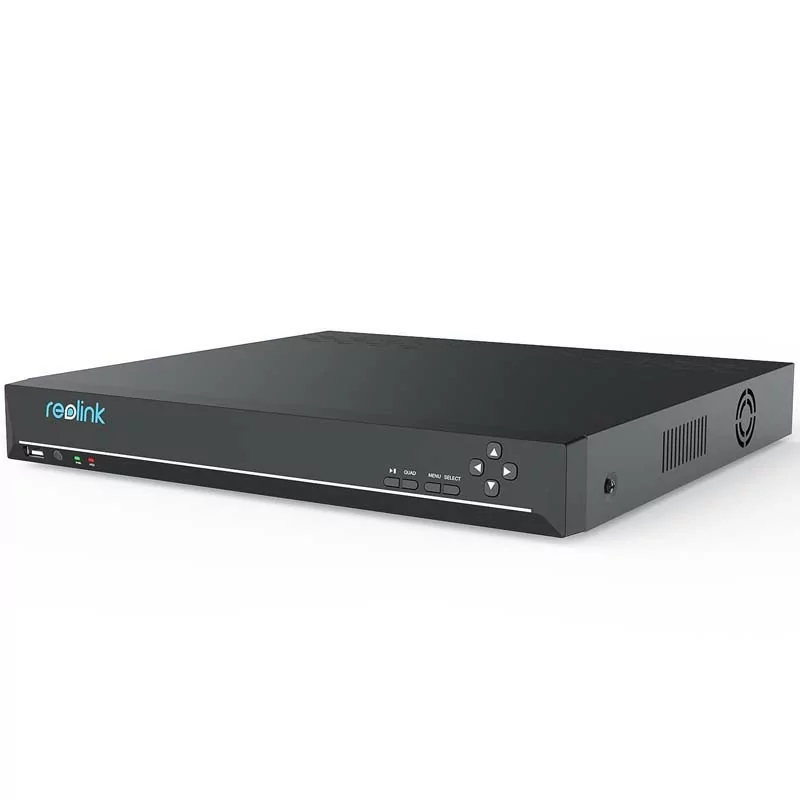

Reolink Recorder - 36 Channels 12MP - 8TB

More expandable, more flexible, more versatile

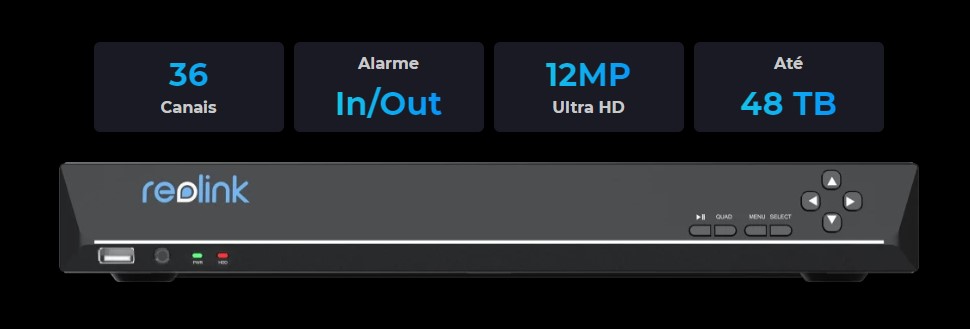

A multi-channel network video recorder is important for multi-site monitoring, especially for a larger area. This 36-channel Reolink NVR can be connected to 36 cameras running at the same time, all with up to 12MP resolution supported. It also has additional alarm in/out channels to customize various detection/response modes. The massive data produced can be securely stored on up to three hard drives of 16TB max. (purchased separately).

Hard drive capacity 48TB

Bigger is always better when it comes to NVR storage capacity. The RLN36 supports up to three hard drives of 16TB max. (48TB in total), allowing you to add more surveillance cameras, keep recordings 24/7, and store videos longer.

*Hard disks must be purchased separately.

Ready to listen and speak

Built-in audio ports make it possible to carry out two-way conversation via NVR. You can respond promptly to suspicious visitors or communicate live with people on site.

* To fully realize the two-way audio function, connect the NVR to the Reolink cameras with the microphone and speaker.

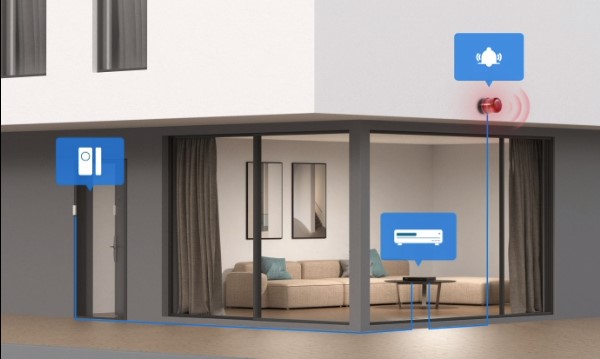

Enrich your surveillance system

8 channels of alarm input to connect extra wired sensors (temperature, infrared, magnetic sensors, etc.) to detect separate events; 4 channels of alarm output to command controllers (door switches, light switches, siren switches, etc.) to perform actions.

Easier and more flexible to connect

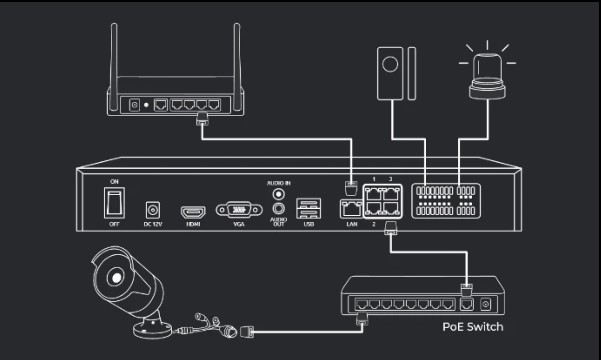

The NVR has a LAN port to connect to a router and four internet ports (not PoE) to connect to PoE switches or directly to cameras. You can also connect the cameras to the NVR via wireless Wi-Fi.

Note: To protect your PoE switch(es) from overload, distribute your PoE cameras/switches evenly across the four internet ports if possible.

Customize your own security camera system

RLN36 supports all 12MP, 8MP , 5MP or 4MP Reolink IP cameras . You can choose up to 36 cameras (not included) to work with this NVR and build your own video surveillance system.

* Reolink NVR are ONLY designed for Reolink security cameras .

Local and remote access and control

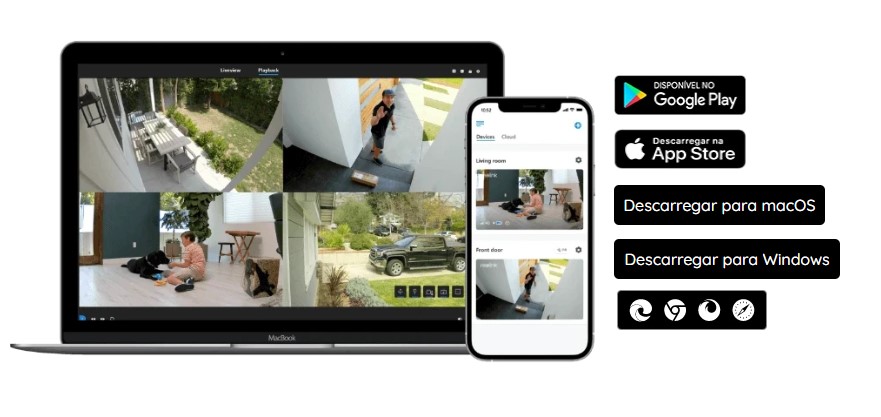

For local access and control, connect the system to a monitor or HDTV . For remote access and control use the free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

Specifications:

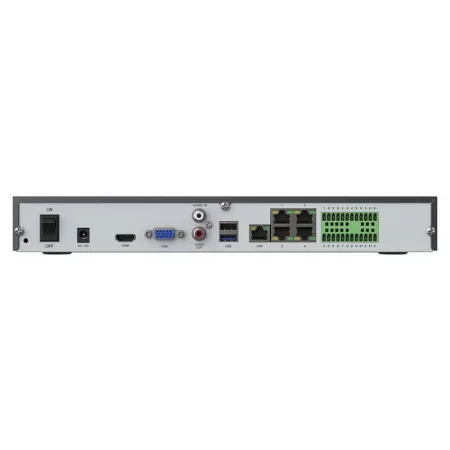

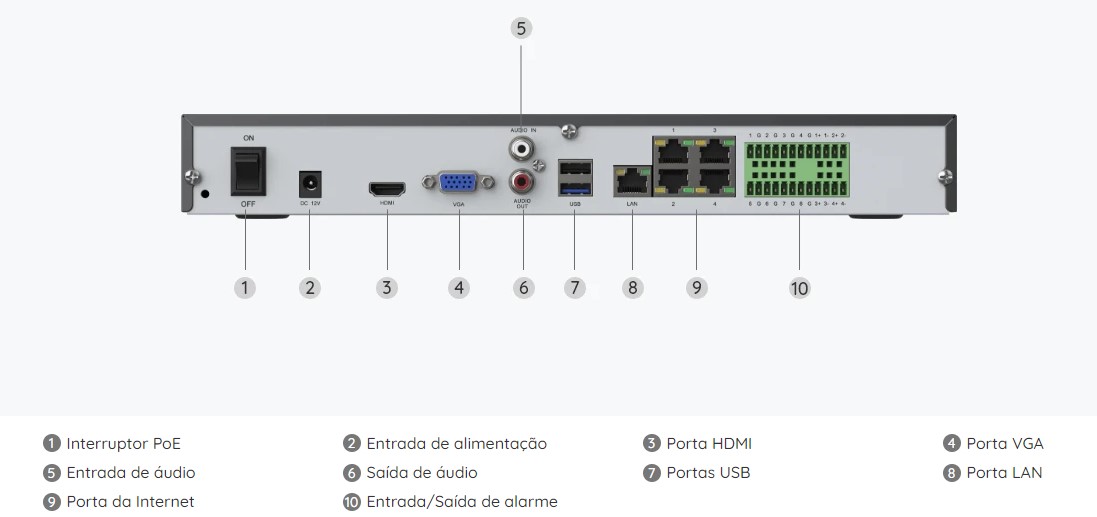

external interfaces

• Video output : 1 HDMI, 1 VGA
• Audio ports : 1 channel audio input, RCA; 1 channel audio output, RCA
• USB Ports : Front Panel: 1 x USB 2.0; Back Panel: 1 x USB 2.0, 1 x USB 3.0
• Ethernet ports : 4 x RJ-45, self-adaptive 10/100/1000 Mbps (for IP cameras); 1 x RJ-45, auto-adaptive 10/100/1000 Mbps (for LAN/WAN); No PoE port
• Alarm: Input: 8 channels; Output: 4 channels

Video

• IP camera input : Supports up to 36 channels of IP camera access; each channel up to 12MP input
• Video resolution : HDMI: 4096x3072, 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768; VGA: 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

audio

• Two- Way Audio : Built-in audio input and output ports
• Audio input : Via cameras with microphone; via built-in 1 channel
• Audio output : Via built-in 1 channel

Recording

• Video compression : H.265, H.264
• Live View/Playback Resolution : 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p (Only support 1 playback channel if viewing in 8MP or higher resolution.)
• Simultaneous playback : 1 to 4 channels
• Supported modes : Person/vehicle detection; motion activated detection; 24/7 recording

Storage

• Internal HDD : 3 SATA ports for 3 HDD (optional)
• External HDD : No
• Max. capacity : 48TB (Max. 16TB HDD for each SATA)

Network

• Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
• Supported browser : Edge, Firefox, Chrome, Safari
• Supported OS : PC: Windows, Mac OS; SmartPhone: iOS, Android
• Maximum user access : 20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

• Power: DC 12V/5.4A
• Power Consumption : <10w without="" hdd="" li="">
• Operating environment : Temperature: -10℃~+55℃ (14°F~131°F); Humidity: 10%~90%
• Dimensions (mm) : 330 x 48 x 310mm
• Weight: 2.26 kg (without HDD)
