8-channel real-time live display

Up to 8MP sharp image definition and an 8-channel display ensure you capture every detail from every angle.

two-way audio

Voice intercom support, carry out two-way conversations while watching your feed from anywhere in the world.

H.265+

Using no extra bandwidth, your camera streams crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

80 Mbps video access bandwidth

High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on lab tests using VIGI cameras, the VIGI NVR can connect up to eight 8MP cameras.

SPECIFICATIONS:

NETWORK

TCP/IP protocol, DHCP, DNS, NTP, UPnP

Incoming Band 80 Mbps

Outgoing Bandwidth 60 Mbps

IN GENERAL

Package Contents: VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide

Dimensions (WXDXH) 246 × 148 × 45 mm

External power supply DC 12V/1.5A

Power consumption 4.38 W (without disk), 12.94 W (with disk)

VIDEO/IMAGE

Video input 8-channel IP video input, up to 8 MP resolution

Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF.

HDMI output resolution 1 channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz

1 channel VGA output resolution, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,

DECODING

H.265+/H.265/ H.264+/H.264 Decoding Format

Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

4-channel synchronous playback

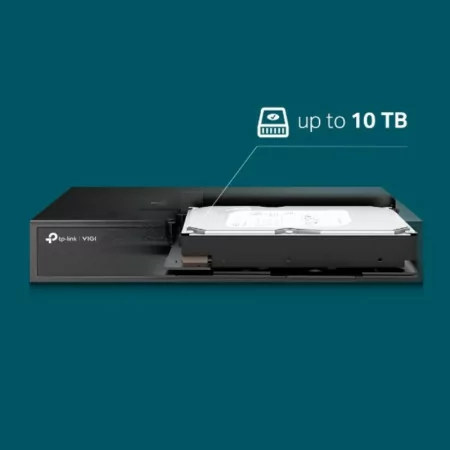

HARD DRIVE

Interface SATA 1 SATA

Capacity up to 10TB

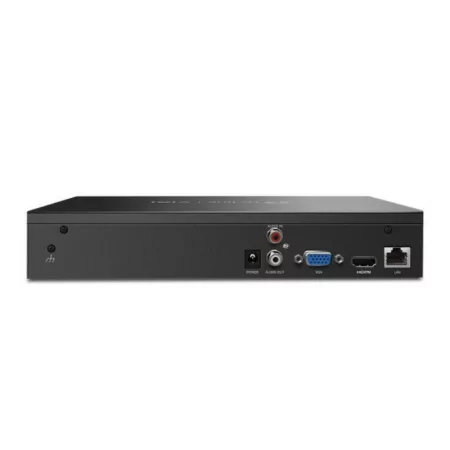

INTERFACES

Network interface 1 self-adaptive Ethernet RJ-45 10/100 Mbps

USB Interface 2× USB 2.0
