All angles on one screen

HDMI 4K video output and 8×2MP decoding capability. It shows more details with up to 8 MP resolution for one channel and 16 MP total decoding capacity for all channels ‡ .

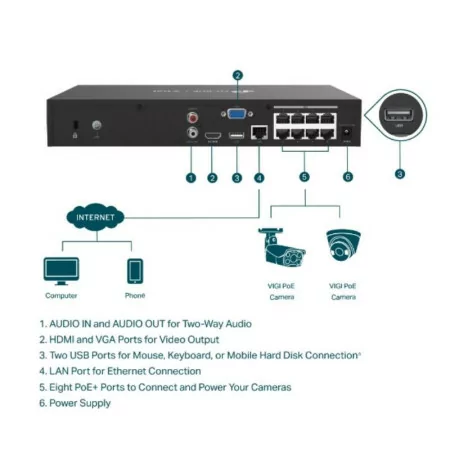

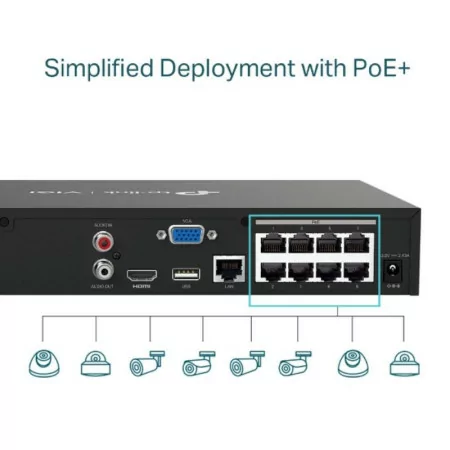

8 dedicated PoE+ ports for simplified IP camera deployment

It has 8 10/100Mbps PoE+ ports, the NVR supports up to 30W on each PoE+ port. Designed to use a single Ethernet cable for data and power transmission, it offers flexible installation to fit various small business surveillance scenarios such as grocery stores, warehouses, restaurants and financial institutions.

Footage review is faster than ever

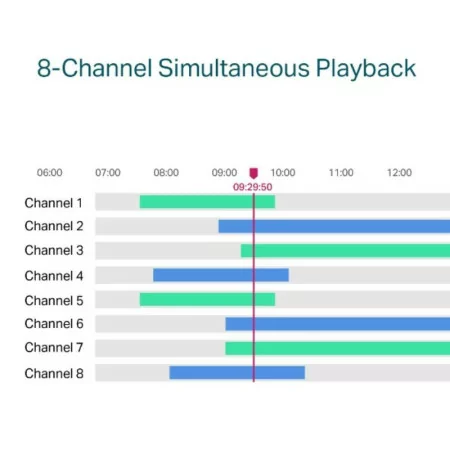

8-Channel Simultaneous Playback . Play feed from up to 8 cameras at the same time, increase playback speed and find events in the video schedule to easily review footage.

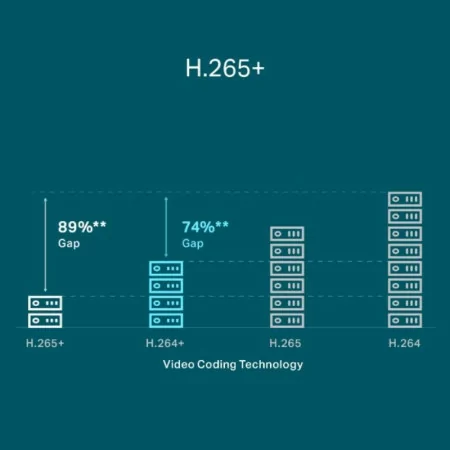

More compression. More economy. same quality

Using no extra bandwidth, its cameras stream crystal clear compressed video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.

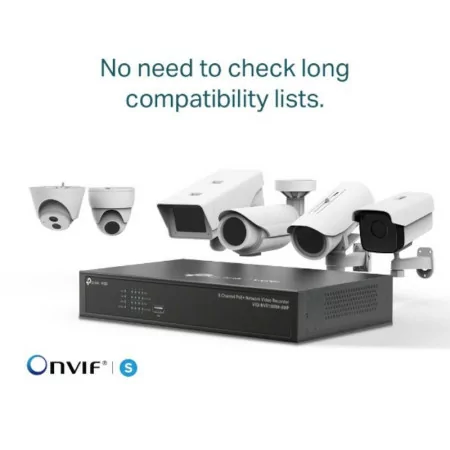

ONVIF ensures compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility△ .

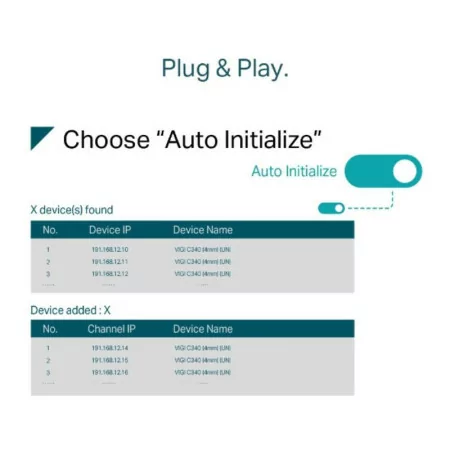

plug & play

Allows new and unused VIGI IP cameras to be automatically added to the new NVR and activated instantly, making installation faster than ever.

Security for every hour and every day

24/7 Continuous Recording. Stores up to 10TB of footage from managed cameras to protect your data for quick and convenient access.

Keep an eye on things, even when you're on the move

Remote monitoring. The dedicated VIGI app, web user interface and VIGI Security Manager allow for remote monitoring, providing ease and convenience.

Flexible installation offers more convenience

Choose the right installation method by simply placing your NVR in a rack or placing it on or under a table.

two-way audio

With voice intercom support, carry out two-way conversations while watching your feed from anywhere. Suitable for management.

A system. Total security

Run your business with peace of mind. TP-Link's VIGI professional surveillance system is dedicated to protecting the business you've worked hard to build - whenever and wherever. Our exceptional features, reliable quality assurances, and streamlined installation work together to ensure your business remains safe and secure.

SPECIFICATIONS:

NETWORK

TCP/IP protocol, DHCP, DNS, NTP, UPnP

Incoming Band 80 Mbps

Outgoing Bandwidth 60 Mbps

GENERAL

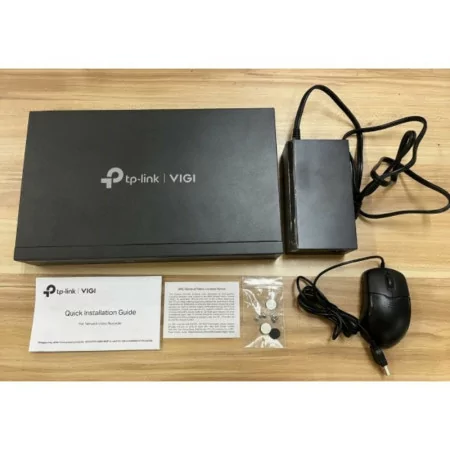

Package Contents: VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide

Dimensions (WXDXH) 294 × 180 × 44 mm

PoE standard: 802.3af/at

PoE Ports: Ports 1-8

PoE Budget: 113W

External power supply 53.5 V DC / 1.31 A

Power consumption 2.38 W (without disk), 12.94 W (with disk)

VIDEO/IMAGE

Video input 8-channel IP video input, up to 8 MP resolution

Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF.

HDMI output resolution 1 channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz

1 channel VGA output resolution, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,

DECODING

H.265+/H.265/ H.264+/H.264 Decoding Format

Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

8-channel synchronous playback

Capacity 2ch at 8MP, 4ch at 4MP, 8ch at 2MP

HARD DRIVE

Interface SATA 1 SATA

Capacity up to 10TB

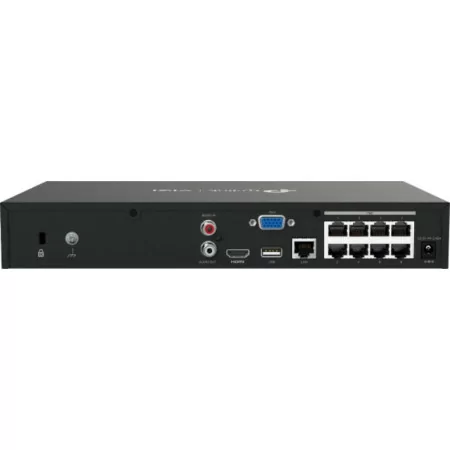

INTERFACES

Network interface 1 self-adaptive Ethernet RJ-45 10/100 Mbps

USB Interface 2× USB 2.0
