Specifications:

DECODING

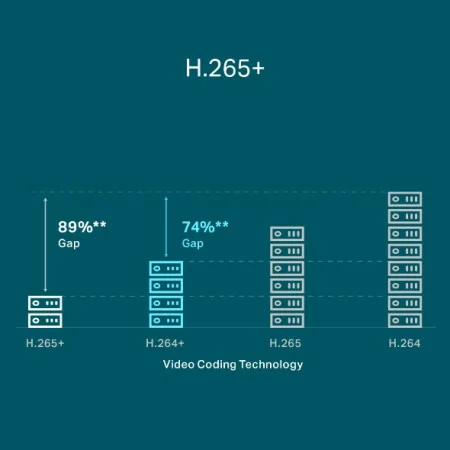

H.265+/H.265/ H.264+/H.264 Decoding Format

Display Resolution/Playback 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/

DCIF/2CIF/CIF/QCIF

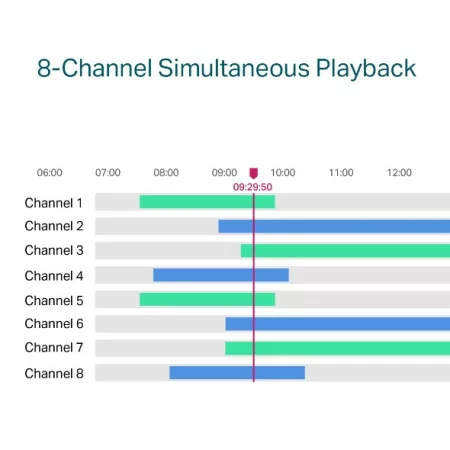

Synchronized Playback 8 Channels

Capacity 2ch @ 8MP, 4ch @ 4MP, 8ch @ 2MP

NETWORK

TCP/IP protocol, DHCP, DNS, NTP, UPnP

Incoming Bandwidth 80 Mbps

Output Bandwidth 60 Mbps

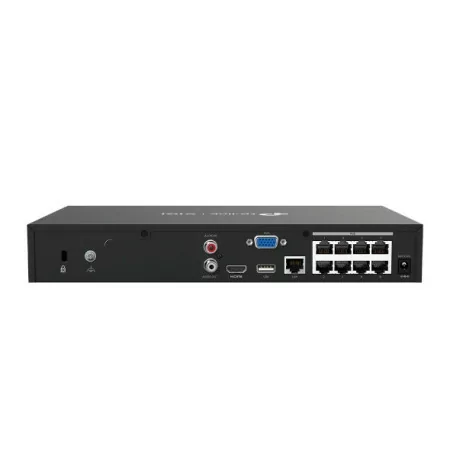

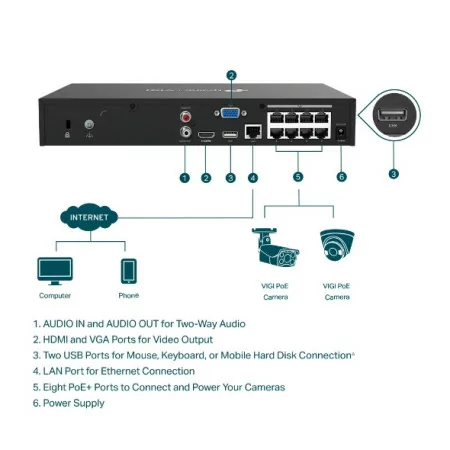

INTERFACES

Network Interface 1 RJ-45 10/100 Mbps Self-adaptive Ethernet Interface

USB Interface 2× USB 2.0

HARD DRIVE

SATA 1 SATA interface

Capacity Up to 10TB

GENERAL

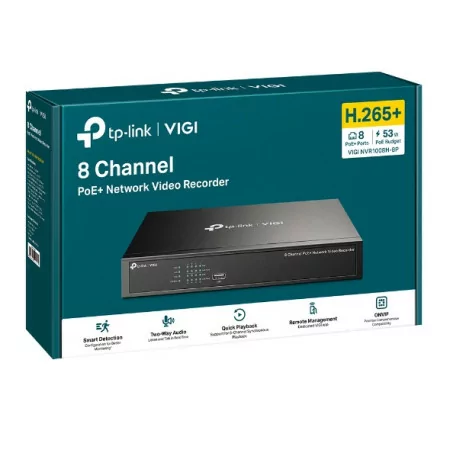

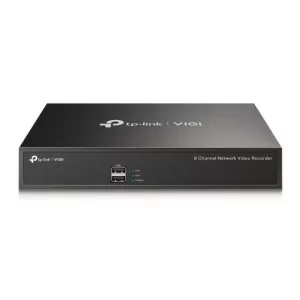

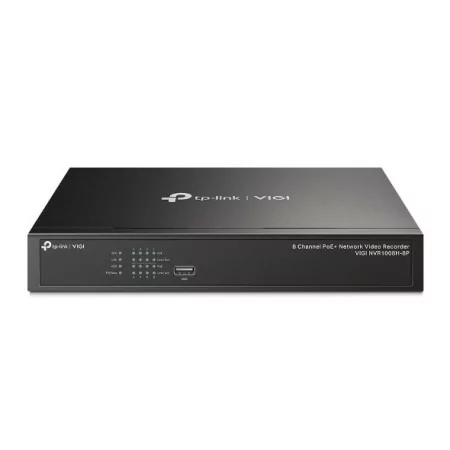

Package Contents VIGI Network Video Recorder

Energy Adapter

HDD Screws

Mouse

Quick Installation Guide

Operating Temperature -10–55 °C

Dimensions (W x D x H) 294 × 180 × 44 mm

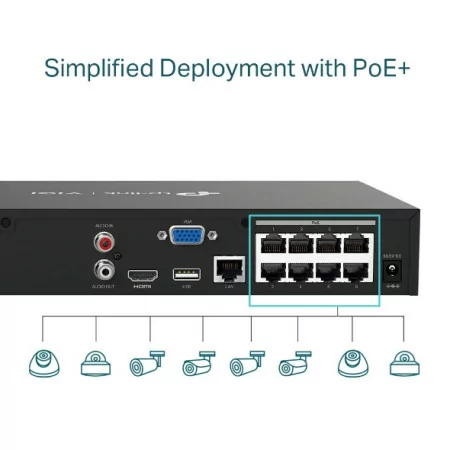

Standard PoE: 802.3af/at

PoE Ports: Ports 1-8

PoE budget: 53W

External Power Supply 53.5V DC/1.31 A

Power Consumption 2.38 W (without disk)

12.94W (with disk)

IMAGE/VIDEO

Video Input 8 Channel IP Video Input, up to 8 MP Resolution

Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

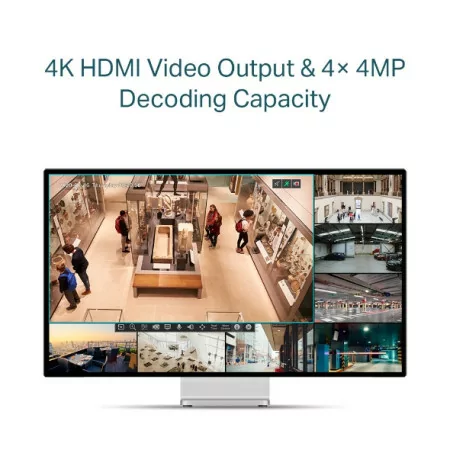

HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz.

Output Resolution VGA 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz.
